Product Details:
Payment & Shipping Terms:
|
| Number: | 5 - 30 Pieces | Conductor Size: | 11 - 20 AWG |
|---|---|---|---|
| Type: | Screw |

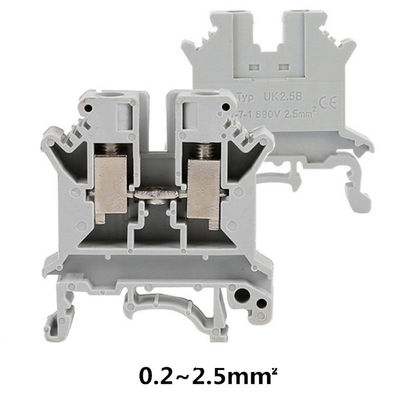

| Model Number | UK 2.5B |
| Color | Grey, Blue, other color can be customized |
| Length / Height / Wide (mm) | 42.5mm / 41mm /6.2mm |
| Connection method | Screw connection |
| Material | Nylon PA66 |
| Rated Voltage/Current | 690V/32A |
| Cross section, solid/soft Cable | 0.2-4 mm² / 0.2-2.5 mm² |
| Conductor Size | 24-12 AWG |

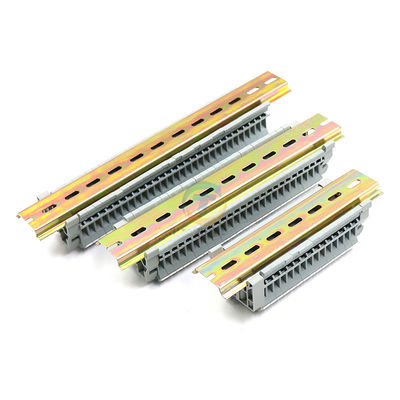

| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | Customized logo are supported |
| Packing Detail | 6.9g/pc, 50pcs/BOX, 3000pcs/ carton |
| Certification | CE/RoHS/CQC/ISO 9001 |
| Model | Hard Wire (mm2) |
Soft Wire (mm2) |
Rated Current (A) |
Rated Voltage (V) |
Dimension (mm) |
| UK2.5B | 0.2-4 | 0.2-2.5 | 32 | 690 | 6.2 x 42.5 x 42 |
| UK3N | 0.2-4 | 0.2-2.5 | 32 | 800 | 6.2 x 42.5 x 42 |
| UK5N | 0.2-6 | 0.2-4 | 41 | 800 | 6.2 x 42.5 x 47 |
| UK6N | 0.2-10 | 0.2-2.5 | 57 | 800 | 6.2 x 42.5 x 47 |
| UK10N | 0.5-16 | 0.5-10 | 76 | 800 | 10.2 x 42.5 x 47 |
| UK16N | 2.5-25 | 4-16 | 101 | 800 | 12.2 x 42.5 x 54 |
| UK35N | 0.75-50 | 0.75-35 | 150 | 1000 | 15.2 x 50.0 x 62 |
| UKH50 | 16-50 | 25-50 | 150 | 1000 | 20 x 70.5 x 83.5 |
| UKH95 | 25-95 | 35-95 | 232 | 1000 | 25 x 83 x 97.5 |
| UKH150 | 35-150 | 50-150 | 309 | 1000 | 31 x 100 x 118.5 |
| USLKG2.5 | 0.2-4 | 0.2-2.5 | 32 | / | 6.2 x 42.5 x 42 |
| USLKG3 | 0.2-4 | 0.2-2.5 | 32 | / | 6.2 x 42.5 x 47 |
| USLKG5 | 0.2-6 | 0.2-4 | 41 | / | 6.2 x 42.5 x 47 |
| USLKG6N | 0.2-10 | 0.2-6 | 57 | / | 8.2 x 42.5 x 47 |
| USLKG10N | 0.5-16 | 0.5-10 | 76 | / | 10.2 x 42.5 x 47 |
| USLKG16N | 2.525 | 4-16 | 101 | / | 12.2 x 42.5 x 54 |
| USLKG35N | 0.75-50 | 0.75-35 | 150 | / | 15.2 x 50.0 x 62 |
| USLKG50 | 16-50 | 25-50 | 150 | / | 20 x 70.5 x 81.5 |
