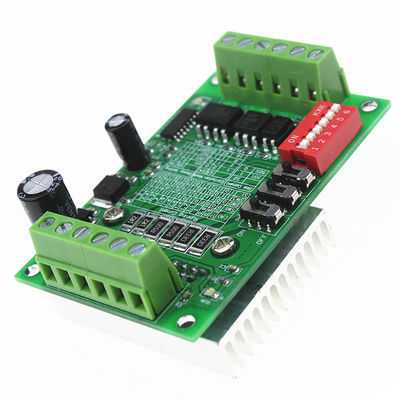

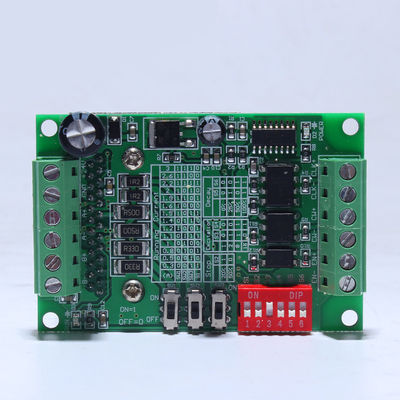

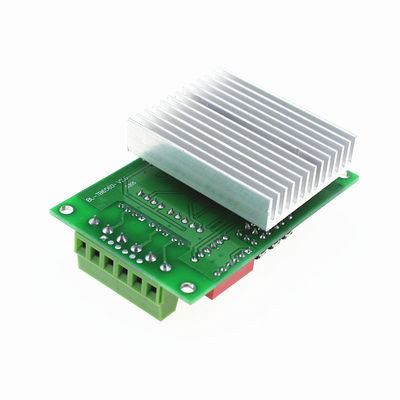

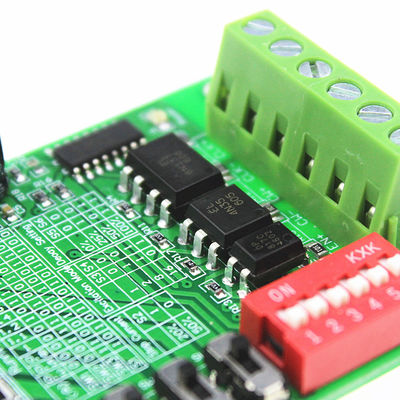

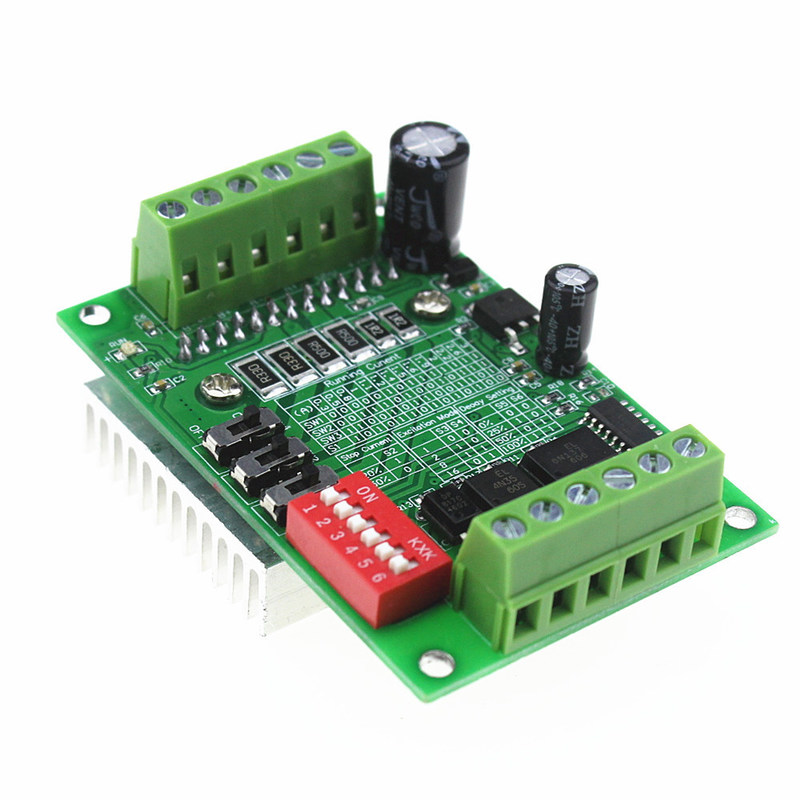

TB6560 3A CNC Router 1 Axis Controller Stepper Motor Driver Board

TB6560 3A CNC Router 1 Axis Controller Stepper Motor Driver Board
TB6560 3A CNC Router 1 Axis Controller Stepper Motor Driver Board TB6560 3A CNC Router 1 Axis Controller Stepper Motor Driver Board TB6560 3A CNC Router 1 Axis Controller Stepper Motor Driver Board TB6560 3A CNC Router 1 Axis Controller Stepper Motor Driver Board TB6560 3A CNC Router 1 Axis Controller Stepper Motor Driver Board

Large Image :  TB6560 3A CNC Router 1 Axis Controller Stepper Motor Driver Board

Product Details:

Place of Origin: China Mainland
Brand Name: Jetacon
Certification: CE
Model Number: TB6560-1axis

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Price: US $8.99
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 100pcs / per day
Detailed Product Description
Axis: 1

Features:
Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply.
6N137 high-speed optical coupling, guarantee high speed without losing step.
Using the TB6560AHQ chip with low voltage shutdown, overheating stop and overcurrent
protection circuit to ensure optimal performance.
Rated maximum output: ± 3A, peak 3.5A.
For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor,
and is not suitable for more than 3A stepper motor.
Automatic half current function.
Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 subdivisions.



Specifications:
Working voltage:DC 10-35V
Rated maximum output: ± 3A, peak 3.5A.
Main color:Green
Size:75 x 50 x 33mm
Net weight:83g
Package weight:93g



Package content:
1x TB6560 3A driver board

TB6560 3A CNC Router 1 Axis Controller Stepper Motor Driver Board 0

TB6560 3A CNC Router 1 Axis Controller Stepper Motor Driver Board 1

--

Applaication Reference



TB6560 3A CNC Router 1 Axis Controller Stepper Motor Driver Board 2
