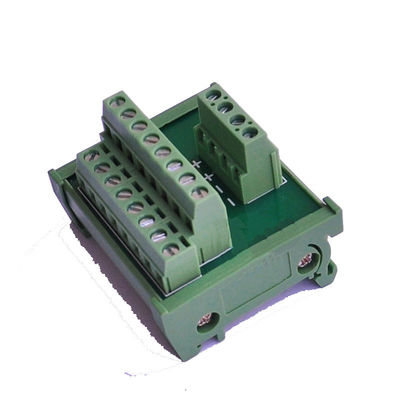

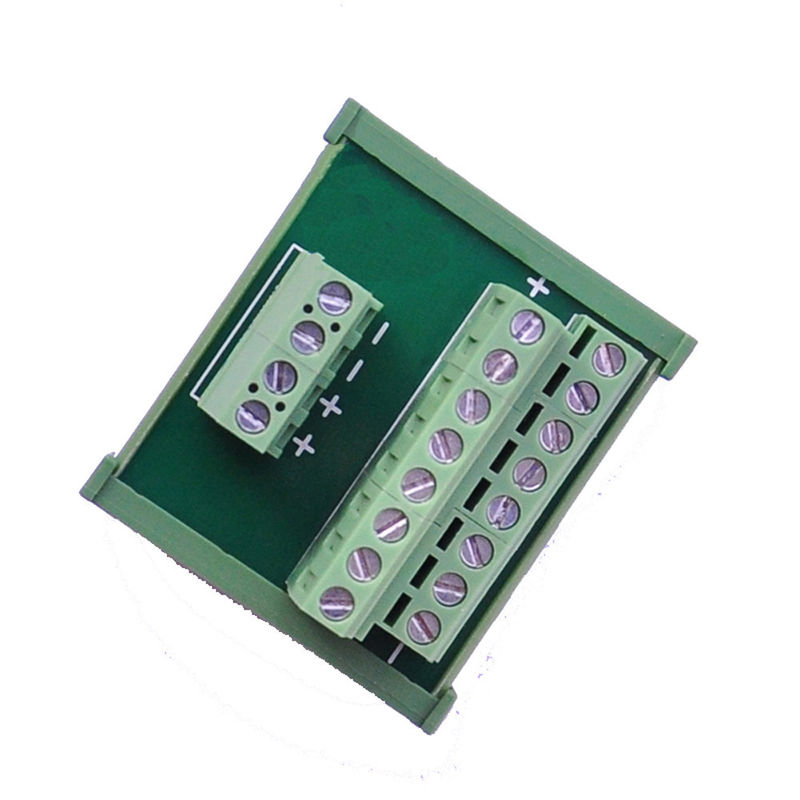

Name: DC 24V 8 Ways Power Source Wiring Distribution Splitter Terminal Blocks Breakout Board
Brand: Jetacon
SKU: Splitter9

Contact Now

Detailed Product Description

Number Of Contacts:	1 - 10	Conductor Size:	11 - 20 AWG
Type:	Screw

Application Reference: You may connect it to Control units ( +DC24V or -DC24V )

Power Supply: DC24V

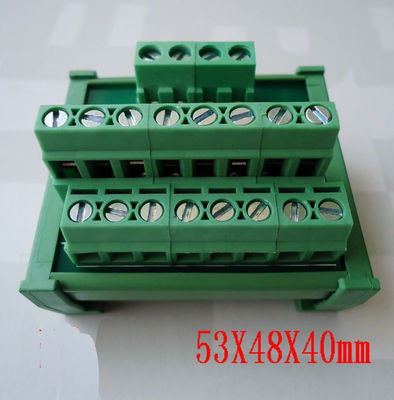

Size :53mm L x 48mm W x 40mm H

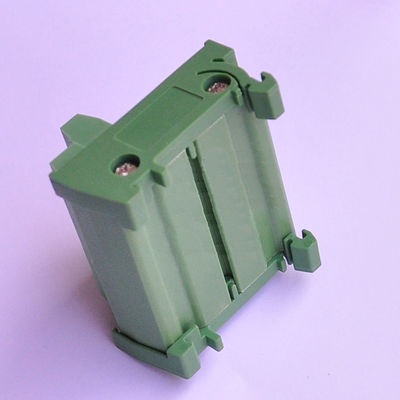

Standard Din Rail installation ( 35mm )

Current Input ( Common Port) :25A

Current Output ( one way): 10A (if the current is output to a one-way port only at the same time)

Current Output ( 8 ways) : 5A ( If the current is output to the 8-way port at the same time)

Note: some times the item is from customized products, the actual productwill have some minor difference from t

he photo, thanks.

DC 24V 8 Ways Power Source Wiring Distribution Splitter Terminal Blocks Breakout Board 0
