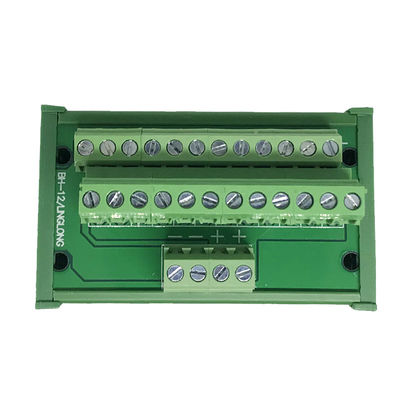

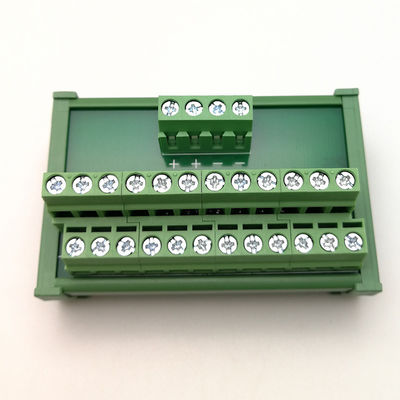

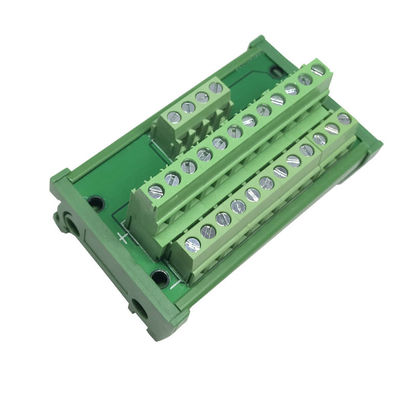

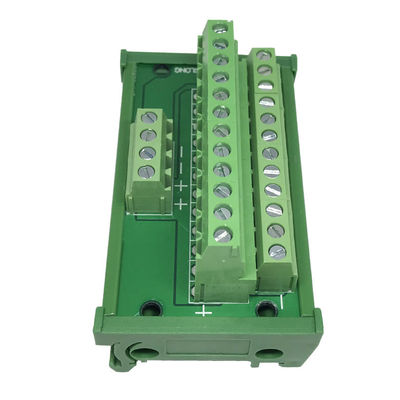

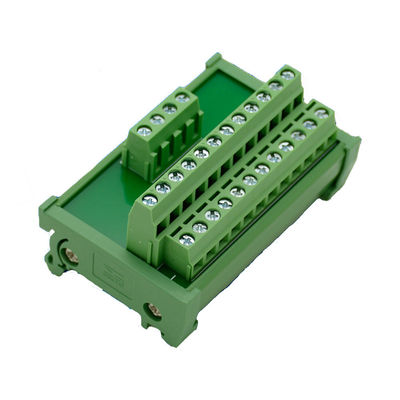

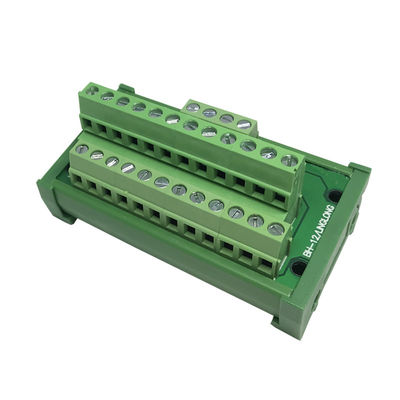

1 in 12 out Power Wiring Distribution Splitter Source Divider Terminal Blocks Breakout Board

Application Reference: You may connect it to Control units ( +DC24V or -DC24V )

Features:

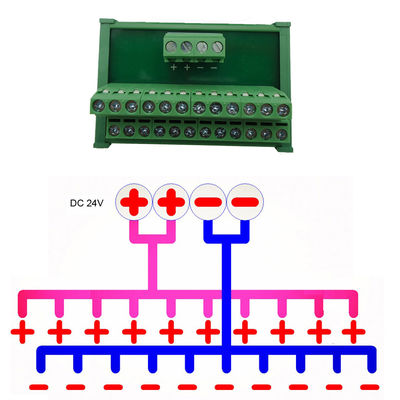

1 way entry 12 ways exit
Mounting: Din 35mm
Power Supply: DC24V

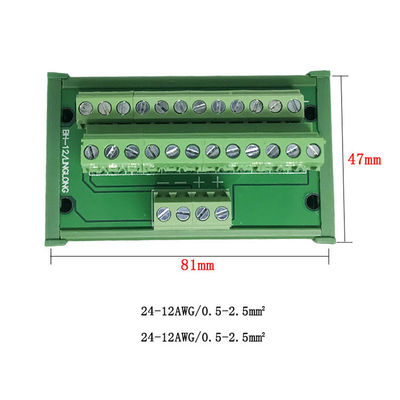

Size :73mm L x 48mm W x 40mm H
Standard Din Rail installation ( 35mm )
Current Input ( Common Port) :25A
Current Output ( one way): 10A (if the current is output to a one-way port only at the same time)
Current Output (12 ways) : 5A ( If the current is output to the 8-way port at the same time)
Note: some times the item is from customized products, the actual productwill have some minor difference from the photo, thanks.
