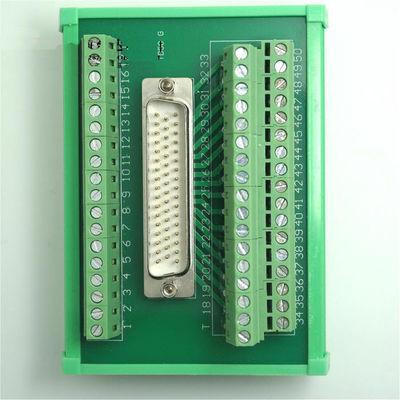

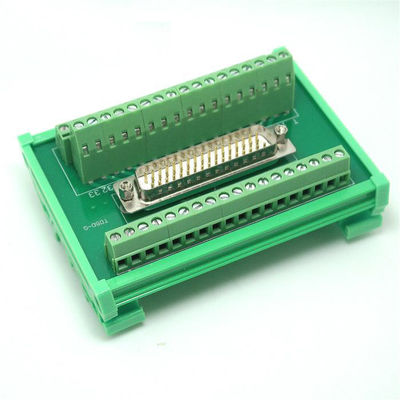

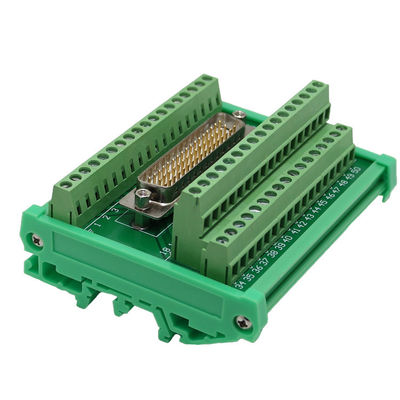

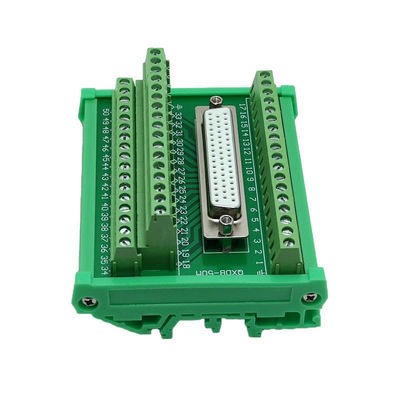

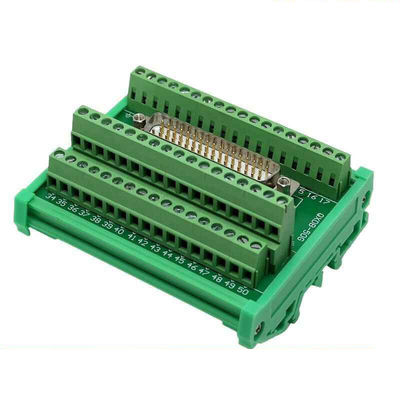

Name: DB50 Male socket D Sub terminal block breakout board adapter cable connector DIN Rail Type
Brand: Jetacon
SKU: DB50-TB-M

Contact Now

Detailed Product Description

Number Of Contacts:	41 - 50	Conductor Size:	11 - 20 AWG
Type:	Screw

Default Package included :

Process Side Connection	Terminal Blocks - Screw Connection
Control Side Connection	Male
Control Side Cable Retainer	D sub connectors
Positions / Poles	50
Features	-
Voltage - Rated	125AC
Current Rating (Per Contact)	2.5A
Operating Temperature	-10°C ~ 50°C
Length	-
Width	-
Wire Gauge	14-22 AWG

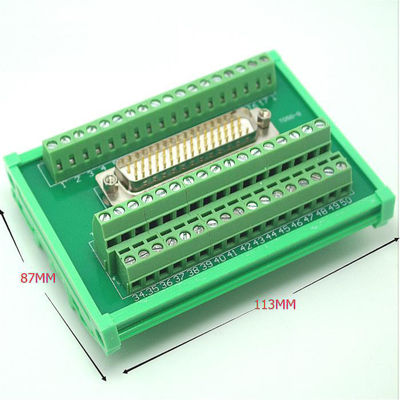

Size: 109mm x 90mm x 45mm

Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
