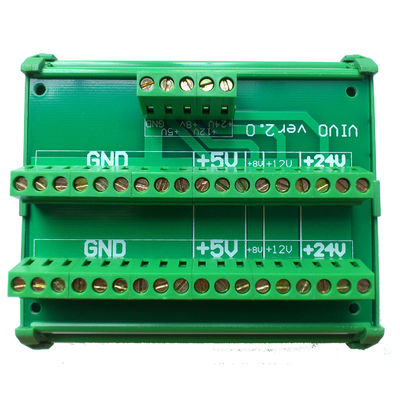

DC 24V 8V 12V 5V Power Supply Source Wiring Distribution Splitter Terminal Blocks Breakout Board

Application Reference: You may connect it to Control units

Input Option: DC24V DC12V DC8V DC5V

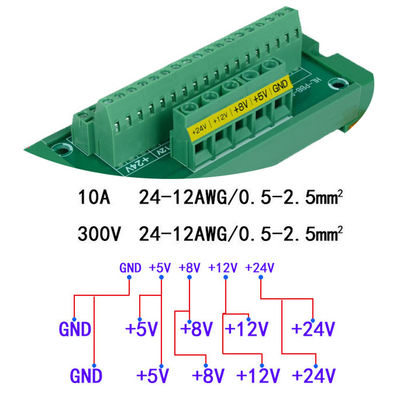

Output: DC24V ( 6 ways) , DC12V (4ways), DC8V ( 2 ways), DC5V ( 6 Ways), GND ( 18 ways)

Size :153mm L x 89mm W x 40mm H

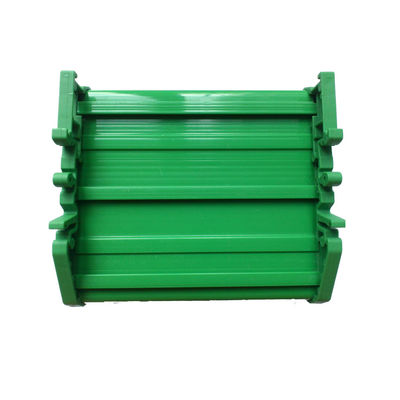

Standard Din Rail installation ( 35mm )

Current Input ( Common Port) :25A

Current Output ( one way): 10A (if the current is output to a one-way port only at the same time)

Current Output ( 8 ways) : 5A ( If the current is output to the 8-way port at the same time)

Note: some times the item is from customized products, the actual productwill have some minor difference from the photo, thanks.
