Product Details:
Payment & Shipping Terms:
|
| Number Of Contacts: | 20 - 24 | Conductor Size: | 11 - 20 AWG |
|---|---|---|---|
| Type: | Screw |
Feature:
Output voltage: +3.3V +5V -12V +12V +5V
Control mode: toggle switch or second switch.
The second switch: can be used for front panel, two pins shorted to open the power.
Supported voltage: +5vsb is the standby power supply, the power supply is available, can be used for standby control circuit.

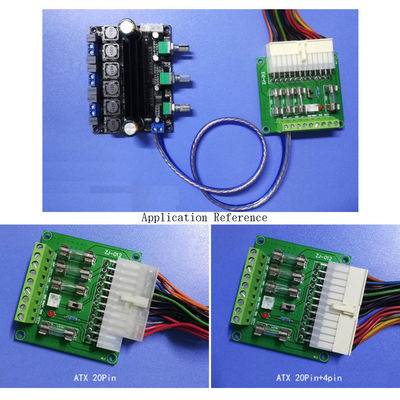

Application: Applicable to some of our power amplifier boards, other electronic equipment, etc.

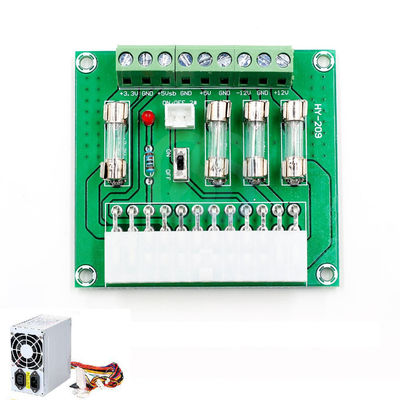

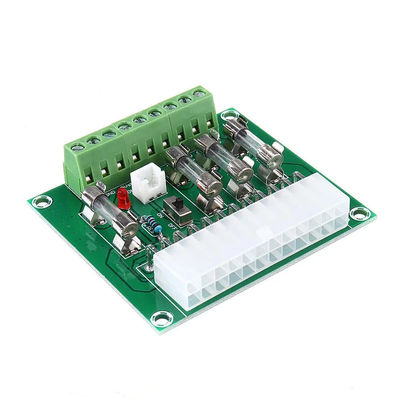

24-pins Standard ATX Connector, support 20 / 20+4 / 24 pins wire header.
Stand-By and Power-ON indicator LEDs.
Having latching button switch to control power ON/OFF.
High quality 24Amp(per position) screw terminal blocks.
Terminal Blocks :
Pitch 5.0mm/0.197"
Wire range 26AWG ~ 12AWG / 2.5mm2
Rated voltage 400V, rated current 24Amp.
Strip length 7mm.
Screws - M3,steel,Cr3+ Zn plated.
Pin header and Cage - Brass.
Note: some times the item is from customized products, the actual productwill have some minor difference from the photo, thanks.
