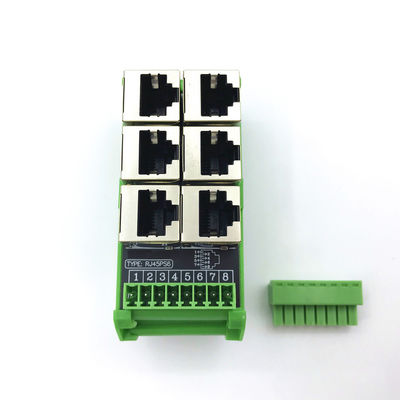

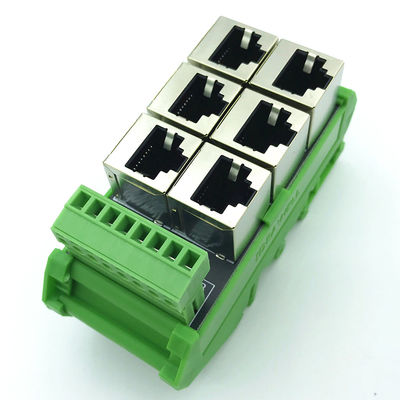

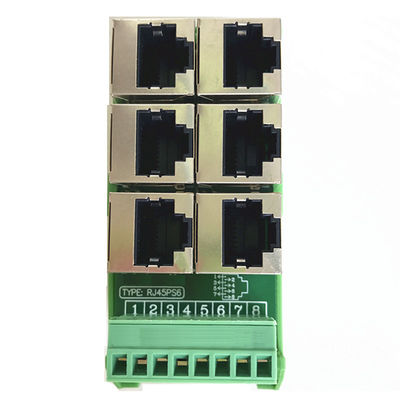

RJ45 Female Jack 8P8C 6 Port Hub to 8 Pin Screw Terminal Block Adapter for Servo Application

Large Image : RJ45 Female Jack 8P8C 6 Port Hub to 8 Pin Screw Terminal Block Adapter for Servo Application

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE

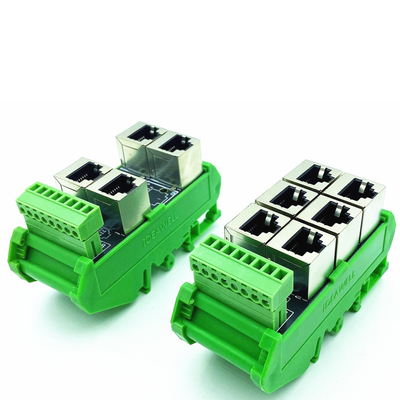

Model Number:	RJ45-8P8C-6-Port or 4-Port

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	US $16.99
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

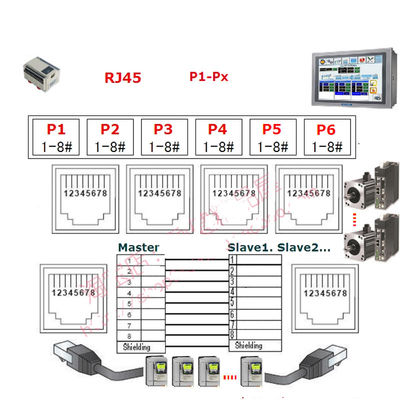

Type:	RJ45 8P8C	Application:	Servo Motion
Gender:	Female

Pitch 3.81mm / 0.15" screw terminal block.

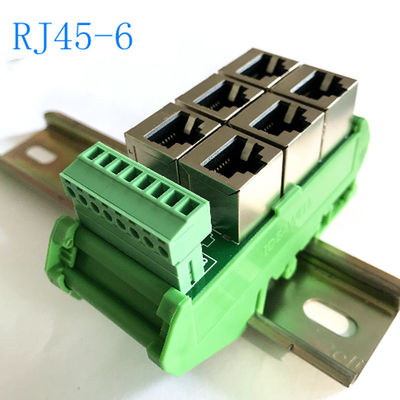

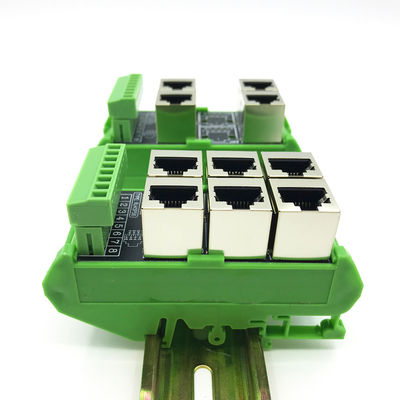

Simple DIN Adapters (Feet): for width 35 / 32 / 15mm DIN rails.
Solder connection holes, three (3) per line, supports addition of 0.1" pin headers.
FR-4 fiber glass PCB, dual copper layers.
External dimensions: 89 x 49.5 x 38mm (W x L x H).
Rated voltage: 100V.
Rated current: 0.5A / per pin.
Operating Temperature: -20ºC to 50ºC
Terminal block specifications:
Wire range: 26 ~ 16AWG.

Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
