102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector

Certification
China Shenzhen Jetacon Technology Ltd certification
China Shenzhen Jetacon Technology Ltd certification
I'm Online Chat Now

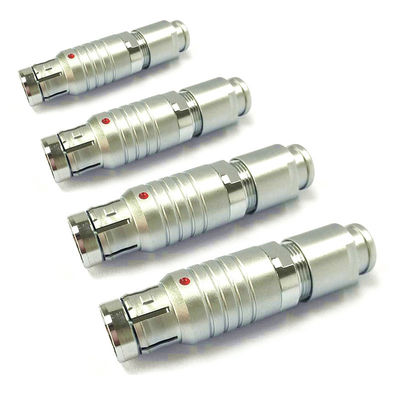

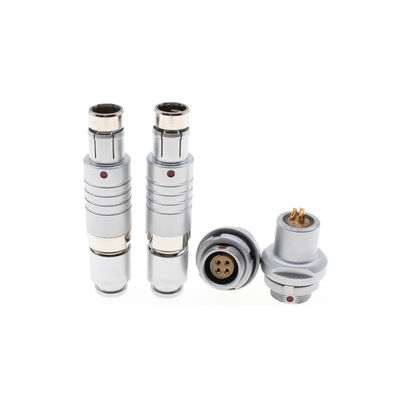

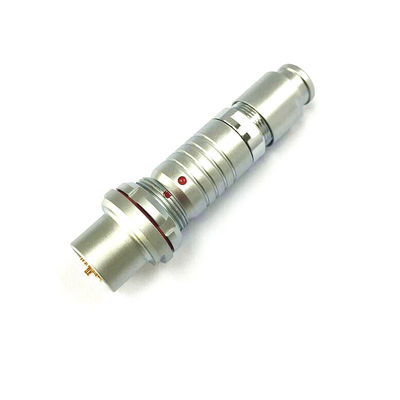

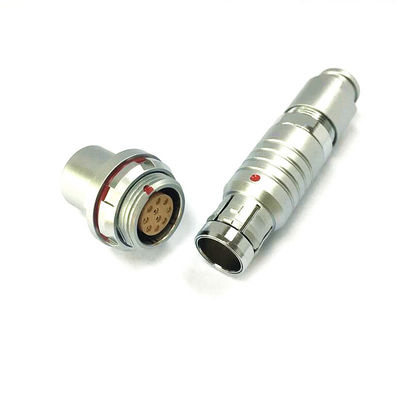

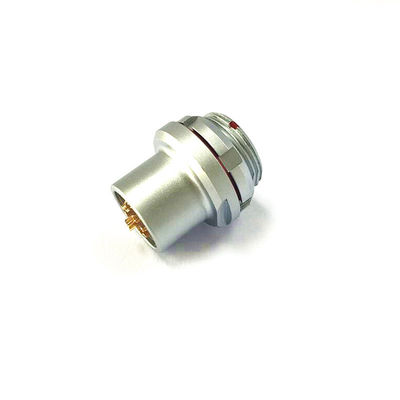

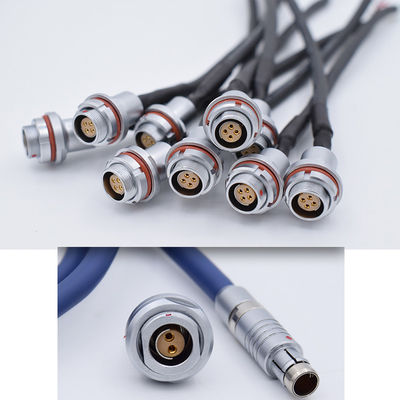

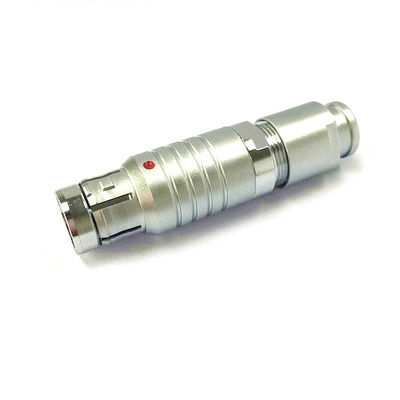

102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector

102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector
102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector 102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector 102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector 102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector 102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector 102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector 102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector

Large Image :  102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector

Product Details:

Place of Origin: China Mainland
Brand Name: Jetacon
Certification: CE
Model Number: 102103104

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pieces
Price: US $29.99
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 200 /Pieces per Day
Detailed Product Description
Material: Brass Surface: Nickle Plated
Waterproof: IP68

Series 1F / 2F/ 3F/ 4F ( Metal ( Mechanical Keying ))


Shell Style / Model Straight plug, cable collet
Keying 1 key( half-moon ,plug;male contacts, receptacle:female contacts)
Housing Material Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
Cable Fixing 2.5 - 7.0 mm (0.10 - 0.276")

PERFORMANCE DETAILS
Insert 7 Low Voltage
Configuration Brass (gold plated)
Insulator P: PPS
Specifications Low Voltage Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 0.7 mm (0.028")
Bucket Dia.: 0.6 mm (0.025")
Max. Solid Conductor: 0.15 mm^2 (AWG 24)
Max. Stranded Conductor: 0.15 mm^2 (AWG 24)
R (max): 7.5 mOhm
Vtest (contact-shell): 1150 V
Vtest (contact-contact): 1000 V
Rated Current: 4 A (AC/DC)


102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector 0

102 103 104 105 F Series Waterproof Metal Push Pull Circular Cable Mount Plug Connector 1
