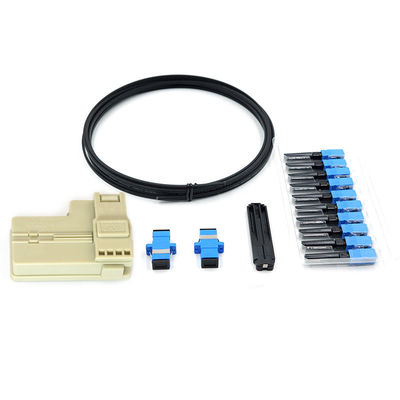

Fiber Optic SC Connector Quick Assembly Set with 5 meters Outdoor Drop Cable Kit

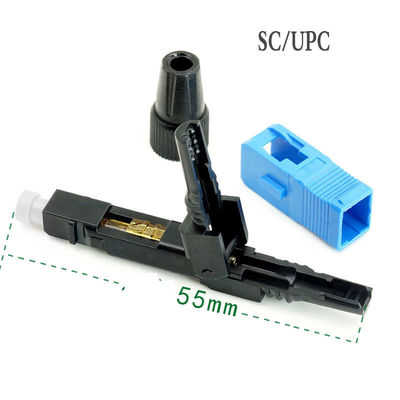

SC UPC Cold connector Specifications:

Optical fiber diameter 125μm ( 657A & 657B )
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss ≥40dB
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Tensile strength >50 N
Using temperature -40~+80°C
On-line tensile strength (20 N) IL ≤ 0.2dB RL ≤ 5dB
Mechanical durability (500 times) IL ≤ 0.2dB RL ≤ 5dB

Drop Cable Technical Parameters

Environment temperature: -5 ~+45°C
Relatively humidity:≤85% (+30°C)
Atmospheric pressure:70~166 KPa
Connector attenuation (Interchangeable and repeat): ≤0.5dB
Insertion loss: ≤ 0.3dB
Return loss: APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB
Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC), 1min no breakdown, no arc
Isolation resistance between high voltage protection place and distribution frame: ≥ 100MΩ/ 500V (DC)
By cascading 12 port splice integration module, configurable 12-144 core, 12 core per tray
Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.
