Aluminum Miniature Force Weighing Sensor Micro Load Cells 1kg 2kg 3kg 5kg 10kg 20kg

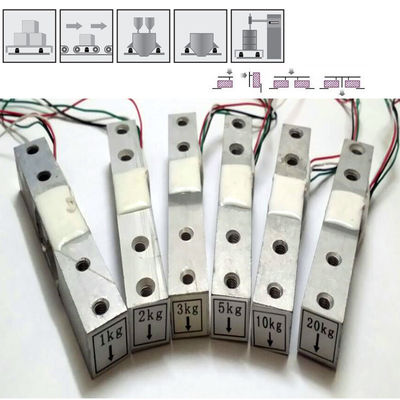

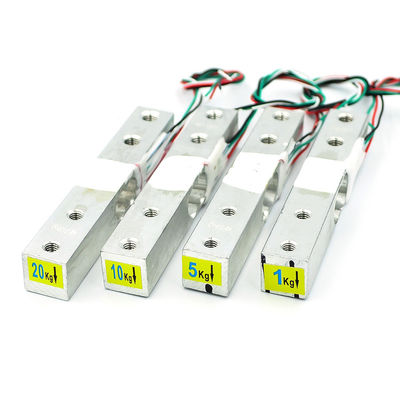

LOAD CELLS 1kg 2kg 3kg 5kg 10kg 20kg 30kg 40kg 50kg
Rated load (kg) : 1,2,3,5,6,10,15,20,30,40,50,60,100,120

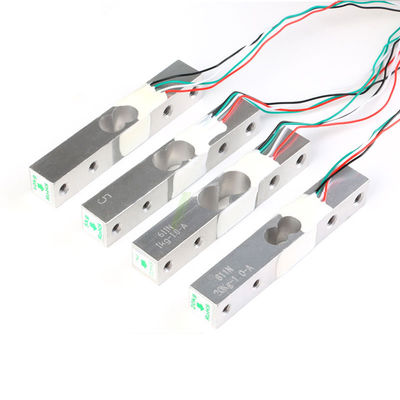

Main features : The product is made of alloy aluminum.

It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation.

The product is suit for electronic top scale, floor scale and other weighing equipment.

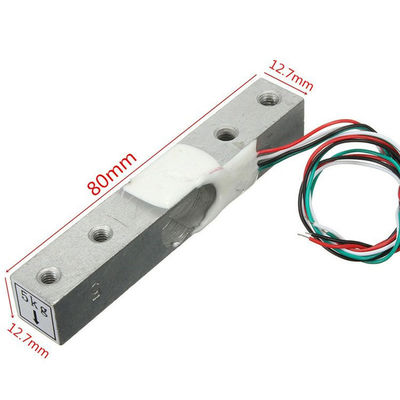

Parameters :
Precision : C2 / C3
Temp. effect on span(%F.S/10℃) : ±0.02/±0.014
Comprehensive error(%F.S) : ±0.02/±0.017
Temp. effect on zero(%F.S/10℃) : ±0.03/±0.017
Rated output(mv/v) : 2.0±0.2
Compensated temp. range(℃ ) : -10～+40
Creep(%F.S/30min) : ±0.02/±0.017
Use temp. range(℃ ) : -20～+60
Zero balance(%F.S) : ±1.0
Excitation voltage(V) : 9～12(DC)
Input resistance(Ω) : 405±10
Safe overload (%F.S) : 120
Output resistance(Ω) : 350±3
Ultimate overload (%F.S) : 150
Insulation resistance(MΩ) : ≥5000(100VDC)
Defend grade : IP65

Wiring schematic diagram:
Red: Input ( ＋ ) 111 White: Output ( － )
Black: Input ( － ) 111 Green: Output ( ＋ )

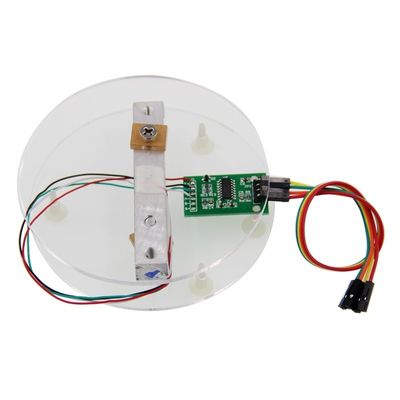

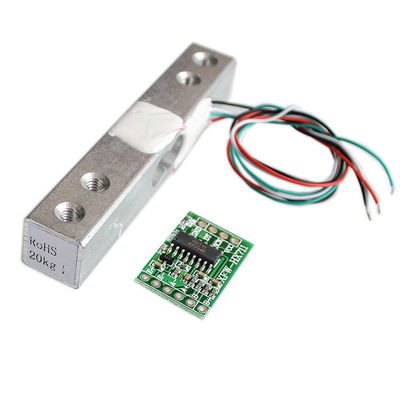

load cell connecting to an Arduino with a HX711 amplifier / 24 bit ADC
