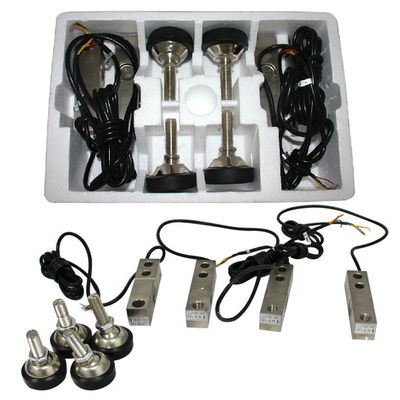

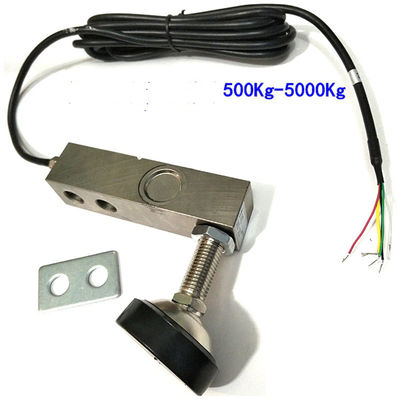

500kg 0.5T 1.0T 2T 3T 5T 5000kg Floor Platform Balance Scale Load Cells Shear Beam

Application Platform Scales, Floor Scales, Blending Scales

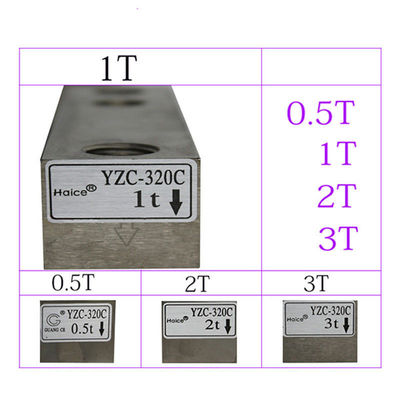

Rated Load 0.25, 0.3, 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 5, 7.5, 10t
Sensitivity 3±0.003mV/V (0.5-10t ), 2.0±0.002mV/V(0.25-0.3t)
Accuracy Class C2-C5
Zero balance ±1%F.S ±0.02%F.S/10C
TCO ±0.02%F.S/10C
TC SPAN ±0.02%F.S/10C
Input resistance 400±10OHM
Output resistance 352±3OHM

Insulation resistance ≥5000MOHM
Temperature Range. Compensated -10 to +40C
Operating Temp Range -30 to +70C

Safe load limit 120%F.S
Over load limit 180%F.S

Recommend excitation 10 to 12V DC
Maximum excitation 15V DC
Protection Class IP67(0.25-0.75t) IP68 (1-10t)
Construction Alloy Steel/Stainless Steel

Cable: Length; 3m(0.25-2.5t),4.2m (3-5t), 5m(7.5-10t)
