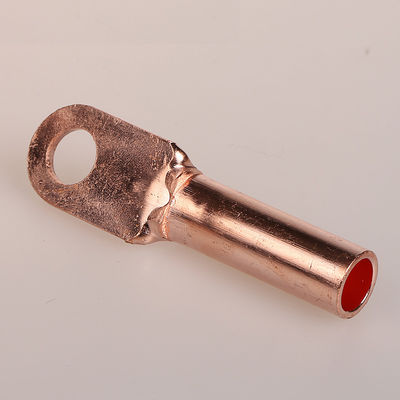

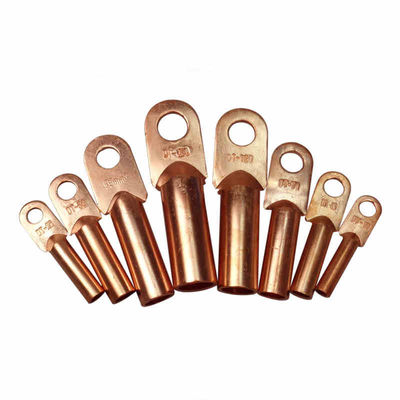

DT Copper Cable Lug Connecting Terminals

DT Copper Cable Lug Connecting Terminals
DT Copper Cable Lug Connecting Terminals DT Copper Cable Lug Connecting Terminals DT Copper Cable Lug Connecting Terminals

Large Image :  DT Copper Cable Lug Connecting Terminals

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: DT-120

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Get latest price

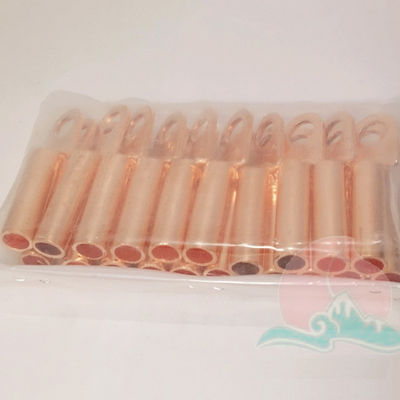

Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description
Type: Lug

Specifications

1.Material:copper
2.Plating:No
3.Certificates: ROHS
4.OEM/ODM
5.Various wire range

DT Copper Cable Lug Connecting Terminals 0



Dimension

DT Copper Cable Lug With Oil Plugging DT Copper Cable Lug With Oil Plugging DT Copper Cable Lug With Oil Plugging

Item No. Cable spec
(mm2)
Dimensions(mm) Note
D d L L1 W φ T
DT10 10 9 5 68 28 16 8.5 3.8 (1)Can be produced according to customer's drawings
DT16 16 10 6.4 68 33 16 8.5 4
DT25 25 11 7.4 70 34 16 8.5 4
DT35 35 12 8.7 80 38 20 10.5 4
DT50 50 14 9.7 90 43 23 10.5 5
DT70 70 16 11.7 95 45 26 12.5 5
DT95 95 18 13.7 105 49 28 12.5 5
DT120 120 20 15.2 112 53 30 14.5 6
DT150 150 22 16.7 120 55 33 14.5 6
DT185 185 24 18.7 126 57 37 17 6.5
DT240 240 27 21 136 58 40 17 6.5
DT300 300 30 23 160 67 50 17 7
DT400 400 32 26 168 75 50 21 7.5
DT500 500 35 29 190 75 60 21 9.5
DT630 630 45 35 220 85 80 21 9.5
DT800 800 50 38 260 85 80 21 10

Oil plugged DT Type Copper Connecting Terminal Lugs(oil plugging), Oil plugged DT Type Copper Connecting Terminal Lugs
