Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Waterproof: | IP65 |
|---|---|---|---|
| Application: | Force Sensor | Zero Output: | ± 0.2 MV / V |
| Capacity: | 3kg 10kg 20kg 50kg 100kg | Diameter: | 13mm |
Features & Applications:
Tension and compression load cell with metal foil strain gauge technology and over load protection, made of stainless steel
Mainly used for pull and push dynamometer, hopper scale and industrial measuring systems.
Capacity : 3kg 5kg, 10kg, 20kg, 50kg, 100kg, 200kg
Cable Length: 3 meters long typically
Parameters:
| Capacity | 0 - 3kg ~ 2000kg | Material | Stainless Steel |
| Rated output | 1.5 ±10% mV/V | Output Impedance | 350±3Ω |
| Non-linearity | 0.05 % F.S. | Insulation | >5000MΩ/10VDC |
| Hysteresis | 0.05 % F.S. | Recommended Excitation | 2.5-5V |
| Repeatability | 0.05 % F.S. | Excitation max | 10V |
| Creep(30min) | 0.05 % F.S. | Compensated Temp Range | -10~60℃ |
| Temp Effect On Output | 0.1 % F.S./ 10℃ | Operating Temp Range | -20~80℃ |
| Temp Effect On Zero | 0.1 % F.S./ 10℃ | Safe Load | 1.2 |
| Protection Class | IP 65 | Ultimate Load Limit | 1.5 |
| Input Impedance | 350±15Ω | Cable Length | ∅2-3 x 3m |
| Wire Connection |
Ex +: Red; Ex -Black; Sig +: Green; Sig -: White (Pressure is positive, pulling is negative); |
||

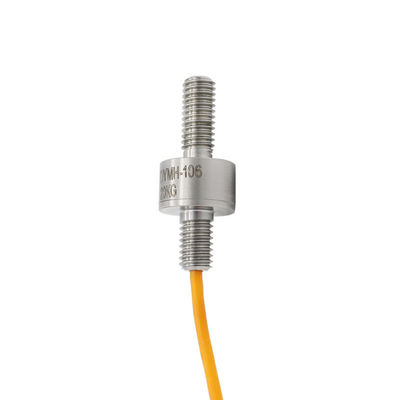

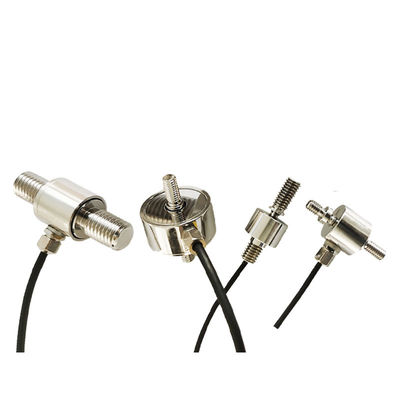

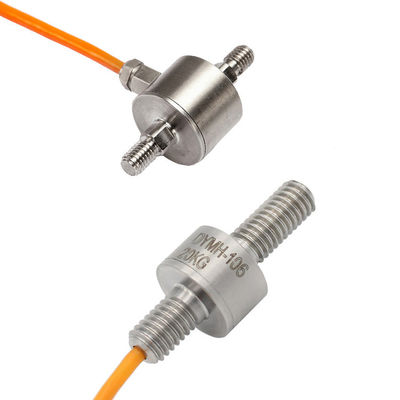

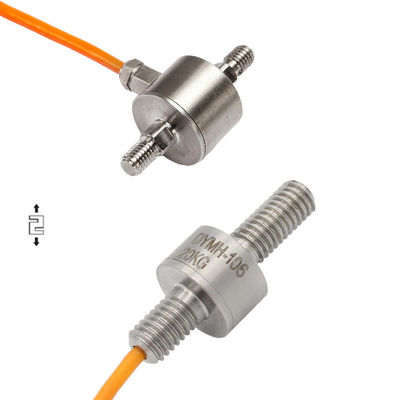

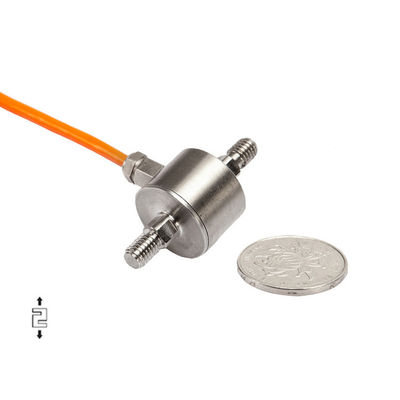

Photos:
