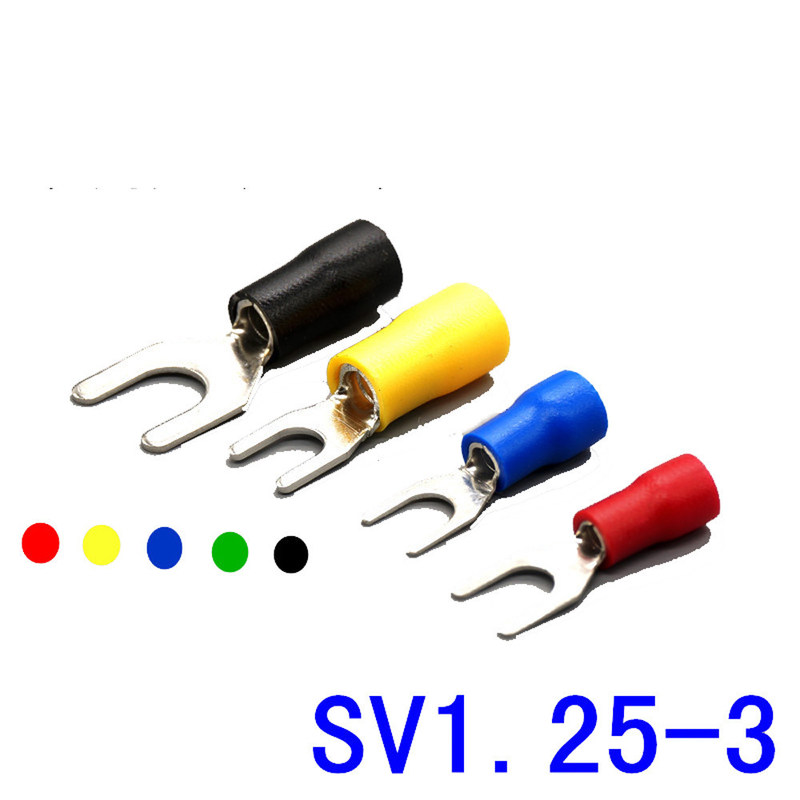

SV 1.25-3 Series Insulated Spade Crimp Terminals

SV 1.25-3 Series Insulated Spade Crimp Terminals
SV 1.25-3 Series Insulated Spade Crimp Terminals SV 1.25-3 Series Insulated Spade Crimp Terminals SV 1.25-3 Series Insulated Spade Crimp Terminals SV 1.25-3 Series Insulated Spade Crimp Terminals SV 1.25-3 Series Insulated Spade Crimp Terminals

Large Image :  SV 1.25-3 Series Insulated Spade Crimp Terminals

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: SV1.25

Payment & Shipping Terms:

Minimum Order Quantity: 1000 pieces
Price: US $0.03 / Piece
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description

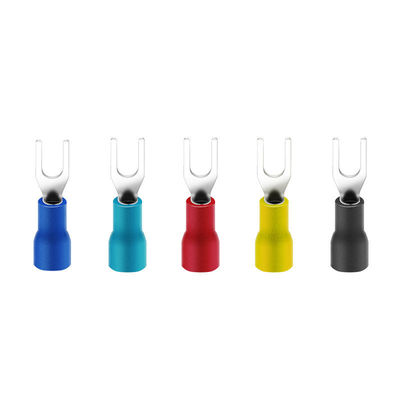

Type: Spade Terminals Color: 5 Colors

Specifications

1.Material:copper and PVC
2.Plating:Tin
3.Certificates: ROHS
4.OEM/ODM
5.Various wire range



Crimp terminal, cable plug, cable connector,  SV Insulated Spade Crimp Terminal



1.Material:copper and PVC
2.Plating:Tin
3.Certificates: ISO.ROHS
4.OEM/ODM
5.Various wire range

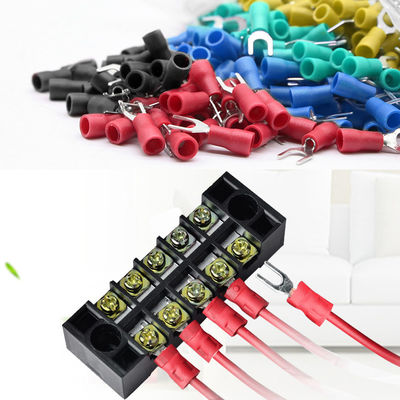

1) Application: According to US, JP, German standard, widely used in machinery, spinning, electric power, ailway, shipbuilding, spaceflight & avition, light industry, household electrical, computers, auto-equipment and etc.



2) Processing: Cold press



3) Material: T2 copper with tinned surface, cridible conductivity; PVC insulation cover, no break or rebound.



4) Certificate: ISO9001-2008



5) Manufacturer: price advantage, quick delivery



SV 1.25-3 Series Insulated Spade Crimp Terminals 0

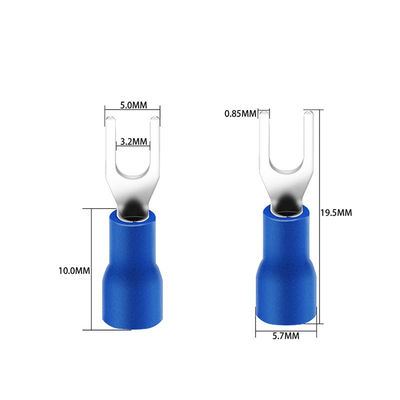

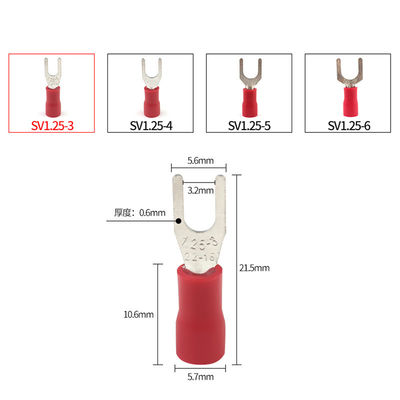

Cable size:0.5~1.5mm²(A.W.G.22-16)   Max current:Imax=19A Material: purple copper Thickness:0.75mm
No. Item No. Dimension Color
US system of bolts Screw dia. D2(mm) B(mm) L(mm) F(mm) H (mm) D (mm)
1 SV1.25-3.2 #4 3.2 5.7 21.2 6.5 10.0 4.3 Red
2 SVS1.25-3.7 #6 3.7 5.7 21.2 6.5
3 SVL1.25-3.7 #6 3.7 6.4 21.2 6.5
4 SV1.25-4S #8 4.3 6.4 21.2 6.5
5 SVM1.25-4 #8 4.3 7.2 21.2 6.5
6 SVL1.25-4 #8 4.3 8.1 21.2 6.5
7 SVS1.25-5 #10 5.3 8.1 21.2 6.5
8 SVL1.25-5 #10 5.3 9.5 21.2 6.5
9 SVS1.25-6 1/4 6.5 9.5 21.2 6.5
10 SVL1.25-6 1/4 6.5 12.0 27.2 11.0
Cable size:1.5~2.5mm²(A.W.G.16-14)   Max current:Imax=27A Material: purple copper Thickness:0.8mm
No. Item No. Dimension Color
US system of bolts Screw dia. D2(mm) B(mm) L(mm) F(mm) H (mm) D (mm)
11 SV2-3.2 #4 3.2 5.7 21.2 6.5 10.0 4.9 blue
12 SVS2-3.7 #6 3.7 5.7 21.2 6.5
13 SVL2-3.7 #6 3.7 6.0 21.2 6.5
14 SVS2-4 #8 4.3 6.4 21.2 6.5
15 SVM2-4 #8 4.3 7.2 21.2 6.5
16 SVL2-4 #8 4.3 8.1 21.2 6.5
17 SVS2-5 #10 5.3 8.1 21.2 6.5
18 SVL2-5 #10 5.3 9.5 21.2 6.5
19 SVS2-6 1/4 6.5 9.5 21.2 6.5
20 SVL2-6 1/4 6.5 12.0 27.2 11.0
Cable size:2.5~4mm²(A.W.G.14-12)   Max current:Imax=37A Material: purple copper Thickness:1.0mm
No. Item No. Dimension Color
US system of bolts Screw dia. D2(mm) B(mm) L(mm) F(mm) H (mm) D (mm)
21 SV3.5-4 #8 4.3 8.0 24.8 7.0 12.5 6.2 black
22 SV3.5-5 #10 5.3 8.0 24.8 7.0
23 SV3.5-6 1/4 6.5 12.0 28.0 12.1
Cable size:4~6mm²(A.W.G.12-10)   Max current:Imax=48A Material: purple copper Thickness:1.0mm
No. Item No. Dimension Color
US system of bolts Screw dia. D2(mm) B(mm) L(mm) F(mm) H (mm) D (mm)
24 SV5.5-3.5 #6 3.7 8.3 25.2 7.5 12.5 6.7 yellow
25 SVS5.5-4 #8 4.3 8.3 25.2 7.5
26 SVL5.5-4 #8 4.3 9.0 23.9 7.5
27 SV5.5-5 #10 5.3 9.0 23.9 7.5
28 SVS5.5-6 1/4 6.5 9.0 23.9 7.5
29 SVL5.5-6 1/4 6.5 12.0 31.2 12.0
30 SV5.5-8 5/16 8.4 14.0 30.0 11.5
