Product Details:
Payment & Shipping Terms:
|
Material: | Zinc Alloy Body | Connector: | Female Male |
---|---|---|---|
Pin Quantity: | 3 Pins |
Description:

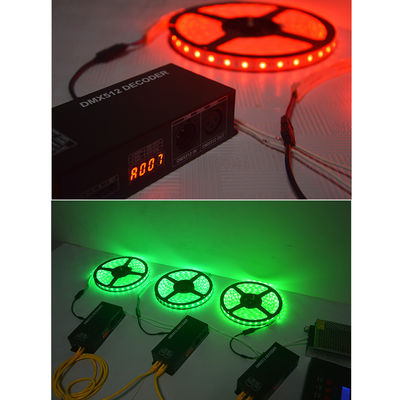

This DMX decoder adopts advanced computer control chip,can receive the international DMX - 512 standard digital control signals and converted into PWM controller signal to drive the LED.It can be controlled by the DMX Console,and can connected with numbers of DMX Decoder to increase the output power to realize all kinds of changing mode.Besides, this DMX decoder can be used as the synchronous controller to controlled the LED alone,it can realize the synchronous effects.This decoder adopt the digital tube to show the address code,and with 3 buttons to setting,make it more easy to used.
Technical Parameters
Product Name:DMX512 decoder with digital display
Model Number:DX03(3CH RGB) / DX04(4CH RGBW)
Working temperature: -20-60 ℃
Supply voltage:DC12~24V
Output current: each channel 4A or 8A (optional)
Output power: 4A each channel 12V:<144W, 24V:<288W
8A each channel 12V:<288W, 24V:<576W
Output: 3 channels
DMX512standard:DMX512/1990

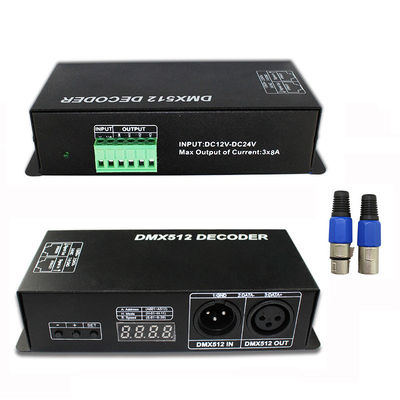

Accessories: 1 pair of DMX512 IN and DMX512 OUT connectors
External dimension: L166×W67×H41mm
Packing size: L176×W84×H50(mm)
Net weight: 360g
Gross weight: 408g
