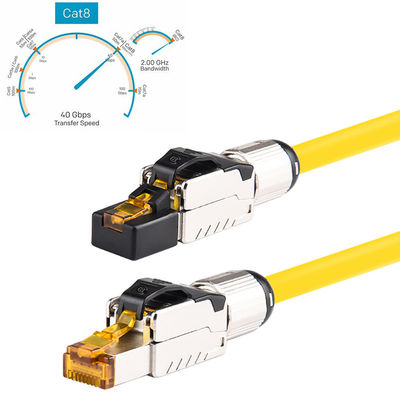

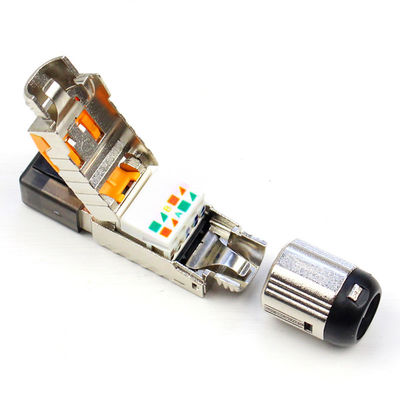

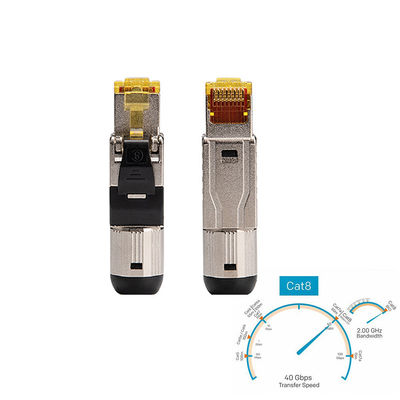

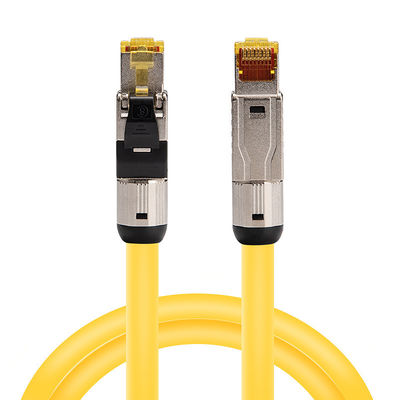

RJ45 Network Modular Plugs Cat8 Shielded Connectors 8P8C High Speed 40 Gbps

Material of RJ45 plug
1. Housing: Poly carbonate (PC) UL 94V-0 or UL 94V-2
2. Contacts: Phosphor bronze, Nickel plating followed with gold plating: 50 micron ( 50um )
3. Shielding Housing: Brass with nickel plating

Mechanical of RJ45 plug
1. Storage Temperature Range: 0°C~+60°C ; Operating Temperature Range:-40°C~+70°C
2. Relative Humidity:<95% (at 25°C)
3. Durability: 750 mating cycles min

Electrical Performance of RJ45 plug
1. Insulation Resistance: ≥1000M Ohm
2. Contact Resistance: ≤20m Ohm
3. Dielectric Strength: 1000V/DC 60s can't spark over

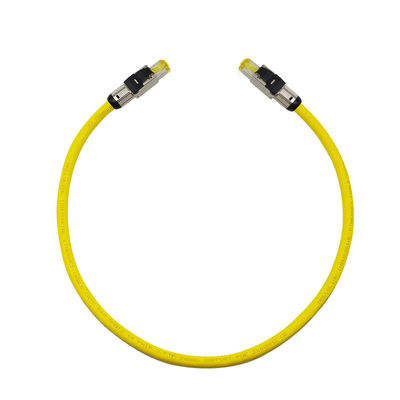

Different Cable Length Customerized is available : 0.5meters, 1 meters, 2 meters, 3 meters, 5 meters, 10 meters, 20 meters, 50 meters
