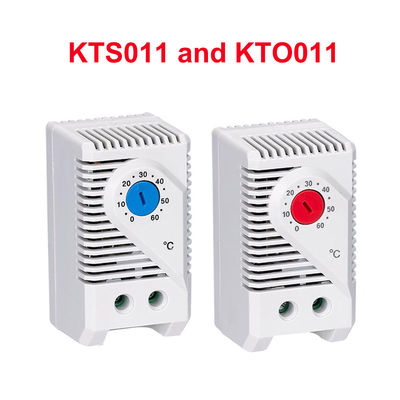

KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller

KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller
KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller

Large Image :  KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller

Product Details:

Place of Origin: China Mainland
Brand Name: Jetacon
Certification: CE
Model Number: KTO 011 / KTS 011

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Price: US $9.99
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 500pcs / per day
Detailed Product Description
Material: ABS Plastic Range: 0°C To +60°C

Large setting range
Simple to mount
High switching performance
Wide adjustment range
Color coded temperature dials
35mm DIN rail mountable

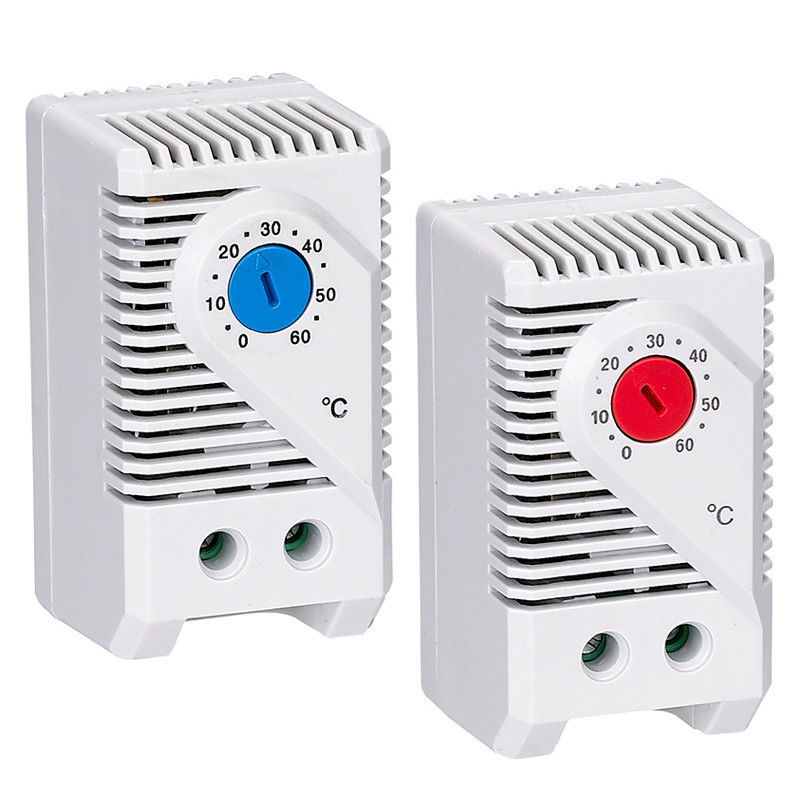

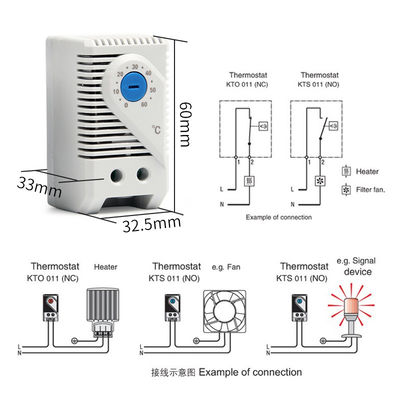

KTO011: Thermostat (normally closed); for regulating heaters.

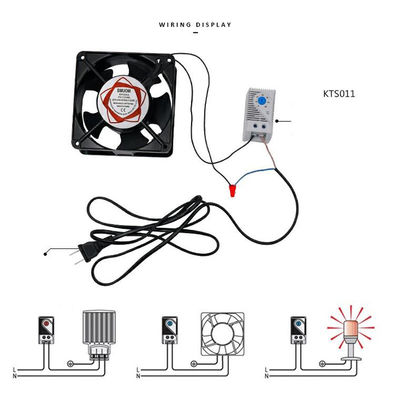

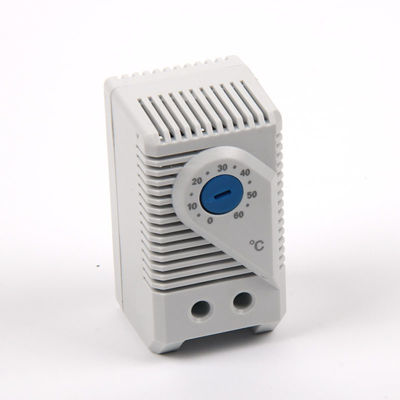

KTS011: Thermostat (normally open); for regulating of filter fans and heat exchangers
or for switching signal devised when temperature limit has been exceeded.



Heaters and cooling equipment can be switched independently from each other

with a temperature offset as opposed to the usual change-over contacts.

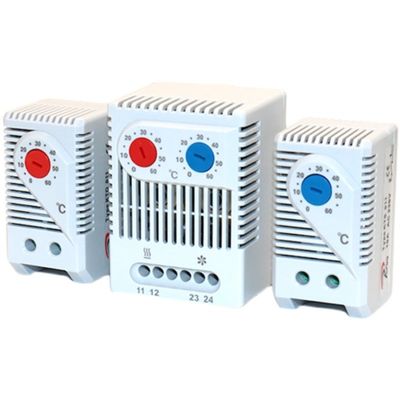

ZR011 : Dual Thermostat, NC and NO ( Normal closed and Normall open ) in one case

MFR 012: Mechanical Hygrostat 35 to 95% RH



Switch temperature difference 7K (± 4K tolerance)

Sensor element thermostatic bimetal

Contact type snap-action contact

Service life > 100,000 cycles

Max. Switching capacity : 250VAC, 10 (2) A 120VAC, 15 (2) A DC 30W



Connection

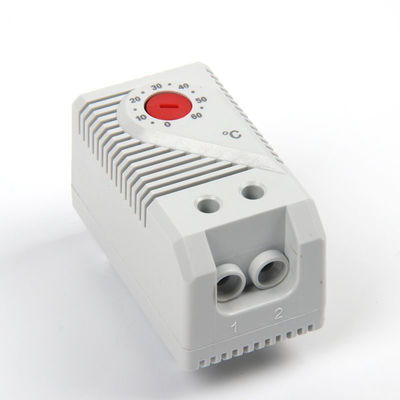

2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²

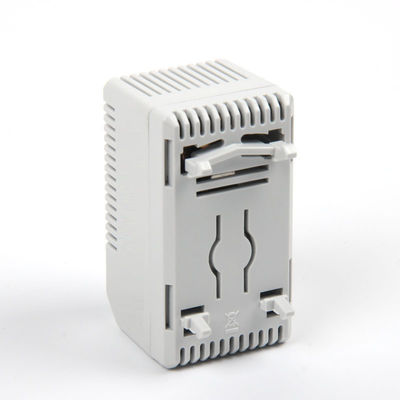

Mounting: clip for 35mm DIN rail, EN60715 (or for exit filter EF 118 Series)

Casing: plastic according to UL94 V-0, light grey

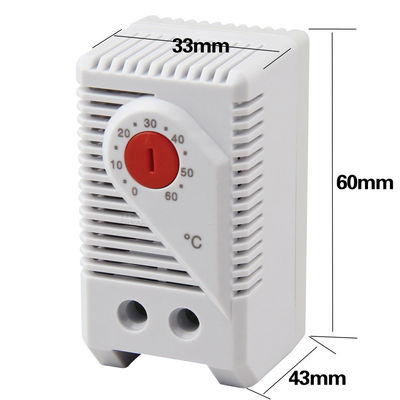

Dimensions 60 x 33 x 43mm

Weight approx. 40g

Fitting position variable

Operating / Storage temperature -45 to +80°C (-49 to +176°F)

Operating / Storage humidity max. 90 % RH (non-condensing)

Protection type IP20

KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller 0

KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller 1

KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller 2

KTO 011 / KTS 011 Room Thermostat Mechanical Temperature Switch Adjustable Controller 3
