Product Details:
Payment & Shipping Terms:
|
Type: | RJ45 8P8C | Application: | Network |
---|---|---|---|
Gender: | Male | Color: | Black |
SPECIFICATIONS
Inputs: 12x RJ45 pillow block, shielded
Material: metal
Transmission rate: 1 Gbit/s
Frequencies: up to 250 MHz

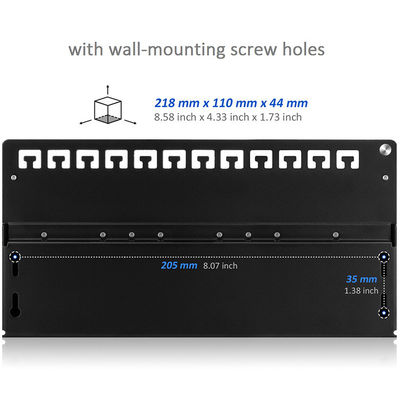

Measurements: 25,5 x 4,5 x 10 cm
Color coding: EIA/TIA 568 A&B
SCOPE OF DELIVERY

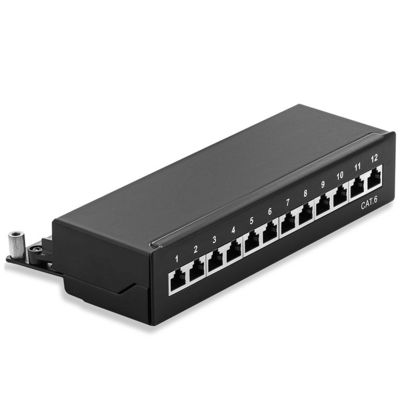

1x 12-Port Patch Panel
4x Wall plug
4x screws (cross-head)
6x Cable ties
Category 6 patch panel exceed TIA/EIA 568-B-2-1 and ISO/IEC 11801/YD/T926.3-2001 for category 6 component performance.
100% shielded for complete EMI/RFI protection.with rear cable management
physicals: accepts 22-26 awg,stranded or solid wire
wiring :T568A/B
material:
panel:black power-coated steel
jack housing:94V-0 rate.
110 blocks :polycarbomate,94V-0 rated.
jack contacts:gold palting 50 micron thickness over 100micron nickel.
the minimum thick tin-lead in solder area over 1.27 micron minimum thick
nickel underplate
insertion life :750 cycles minimum
number of IDC terminations:200 cycles minimum
packaging :1pc/small box,20pcs/carton
standard accessories:screws,labeling sticker and cable tie
