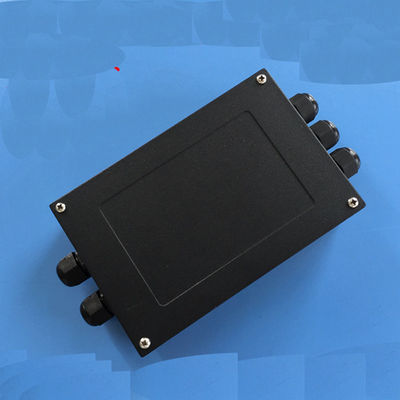

4 Way weighing sensor Aluminum Case Waterproof Load Cell Summing Junction Box Enclosure

Aluminum alloy enclosure, with the capacity of anti-jamming.

With waterproof sealing joints and rubber gasket, have good waterproof dustproof performance.

With sensitivity matching adjustment mode, each output can be balanced.

It can prevent the damage to the sensor caused by indirect lightning and surge signal.

It is convenient in assembly and alignment.

Cast aluminum housing 180mm x 120mm x 45mm

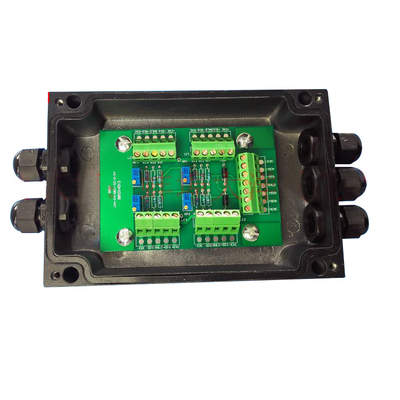

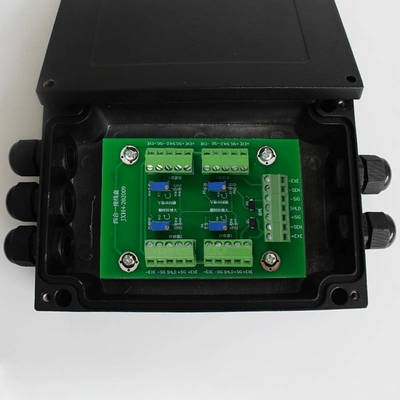

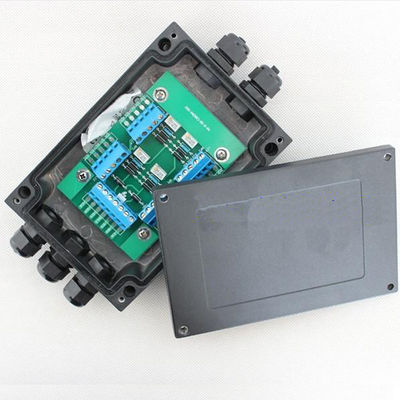

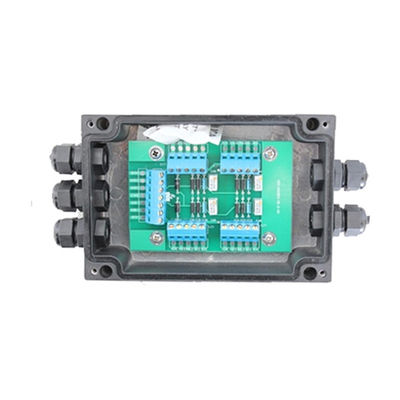

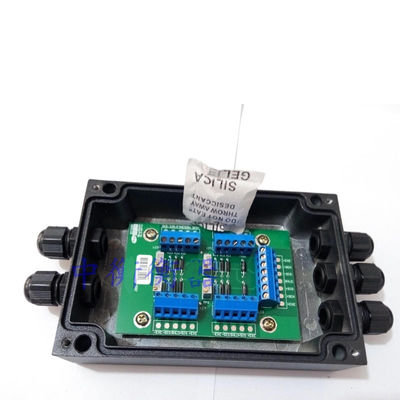

Signal trimming for 2~4 load cells
IP65 protection
Applicable cable diameter:Φ3.5~Φ6.5mm

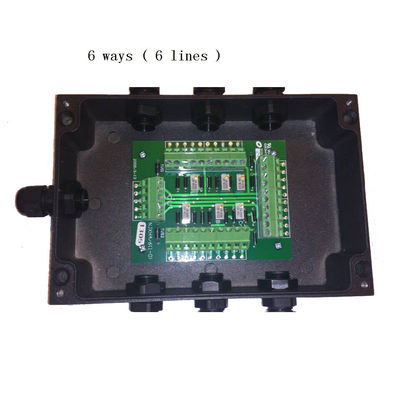

4 ways, 6 ways, 8 ways, 10 ways, 12 ways are also available
Widely used for platform scales,vessel weighing system,tank weighing,etc..
