| Material: | Galvanized Steel | Color: | Gray |
|---|---|---|---|

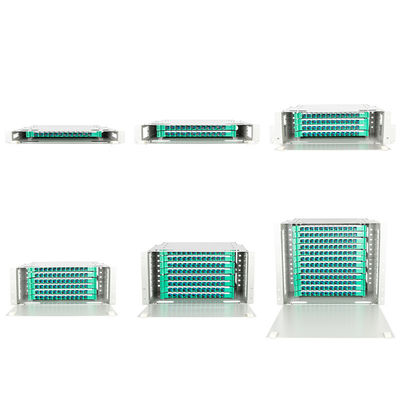

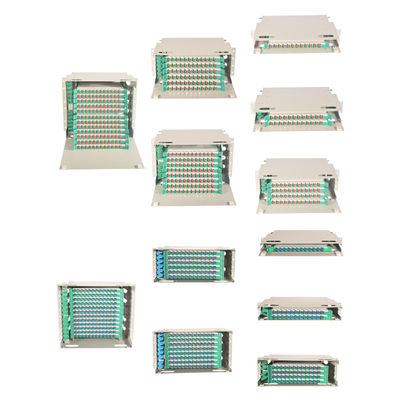

| Numbers: | 1U 2U 3U |
Technical Parameters
Environment temperature: -5 ~+45°C
Relatively humidity:≤85% (+30°C)
Atmospheric pressure:70~166 KPa
Connector attenuation (Interchangeable and repeat): ≤0.5dB
Insertion loss: ≤ 0.3dB
Return loss: APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB
Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC), 1min no breakdown, no arc
Isolation resistance between high voltage protection place and distribution frame: ≥ 100MΩ/ 500V (DC)

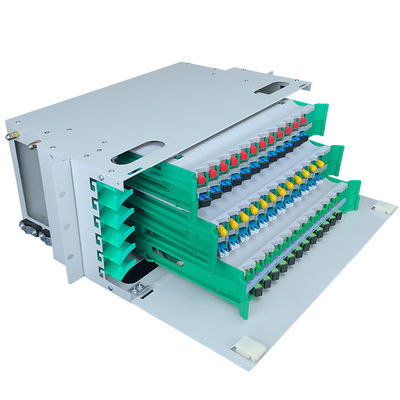

By cascading 12 port splice integration module, configurable 12-144 core, 12 core per tray
Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.
Structure features
Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
The downward and the side door use imported lock
The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc

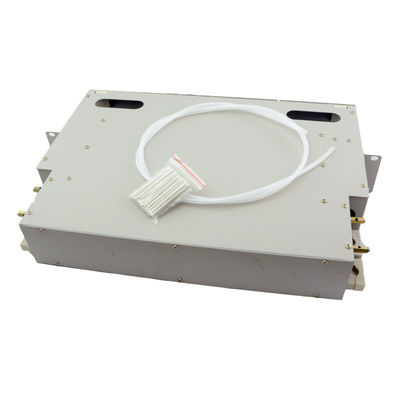

Configure reinforced core and cable fixed seat,complete accessories
--

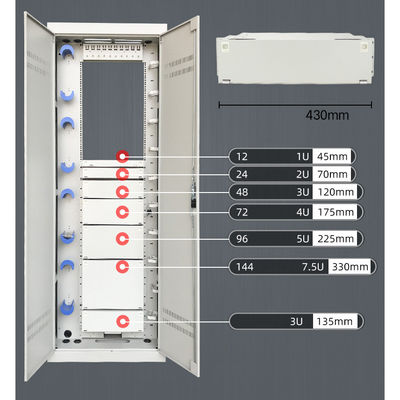

| Capacity | Spare parts | Size / mm | Net weight / kg |
| 12 core | Splice tray, sleeve, buffer tube | 485*300*50 | 3.9 |
| 24 core | Splice tray, sleeve, buffer tube | 485*300*75 | 4.7 |
| 48 coe | Splice tray, sleeve, buffer tube | 485*300*140 | 6.9 |
| 96 core | Splice tray, sleeve, buffer tube | 485*300*252 | 11 |
--
