12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out

12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out
12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out 12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out

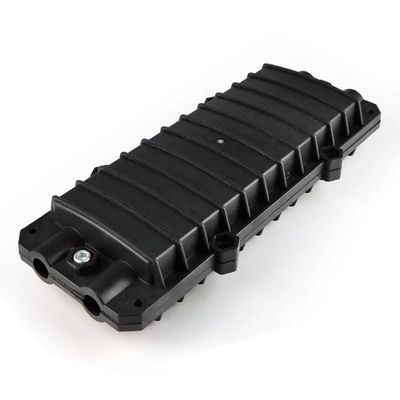

Large Image :  12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: 3C-FOSC-09-14

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 5 - 7 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 10000 Pieces / per Month
Detailed Product Description
Material: ABS Color: Black
Ways: 2 Entry 2 Exit

Characteristics:

Straight-through, branching, splitter, splicing and distribution functions
Applications: aerial, buried and mounted in manhole
Overlap structure in splicing tray for easy installation.
Splice trays can be easily increased and reduced according to capacity
Fiber-bending radium guaranteed more than 40mm.
Stand up to severe condition of moisture,vibration and extreme temperatures.
Mechanical seal can be reopened, which makes maintenance and capacity increasing more convenient

Performance:

Protection class: IP68
Operating Temperature: -40℃-+60℃
Storage Temperature: -40℃-+70℃
Atmospheric pressure:70kPa-106kPa
Pressure loss during the test: Internal pressure: 100kPa,duration: 24 hours, no pressure loss
Crush resistance: 2000N/100mm
Tensile strength: can bear the minimal axial load of 800N
Bending: Can bear 10 cycles of +/-45°bending at 150N tension
Lifetime: above 20 years
Temperature cycling: pass

Application :

Be suitable for aerial, duct and direct buried application
CATV environment
Telecommunications
Customer premises environments
Carrier Networks and fiber optic networks

-

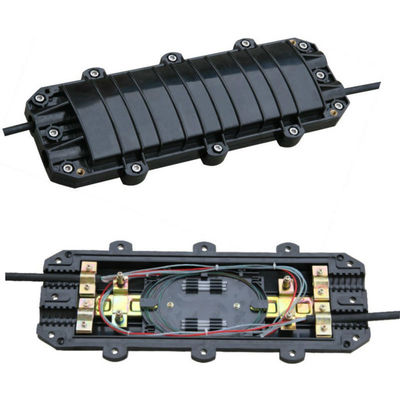

12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out 0

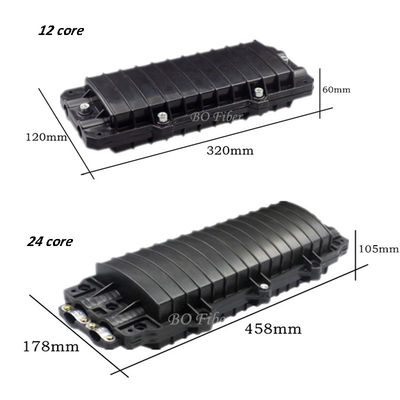

12 24 Core Horizontal Fiber Optic Cable Joint Box Splice Enclosure Waterproof IP67 2 in 2 out 1

--

Model Material Dimension(cm) Weight(kg) Cable entry ports Cable diameter(mm) Max. capacity of fibers
FOSC-09-15 PC 250*190*75 2.3 2 in & 2 out φ8-φ26 288
FOSC-09-16 PC 520*200*120 2.5 2 in & 2 out φ8-φ23 96
FOSC-09-17 PC 520*200*180 2.8 2 in & 2 out φ8-φ23 144
FOSC-09-18 PC 520*200*120 2.5 3 in & 3 out φ8-φ23 96
FOSC-09-19 PC 520*200*180 2.8 3 in & 3 out φ8-φ23 96
FOSC-09-20 PC 360*120*80 1.8 2 in & 2 out φ8-φ20 96
FOSC-09-13 ABS 460*180*105 2.5 2 in & 2 out φ8-φ20 96
FOSC-09-14 PC 460*180*105 2.5 2 in & 2 out φ8-φ20 96

---
