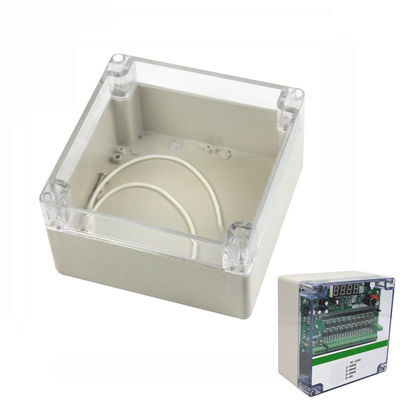

Plastic Junction Box 16016090mm Electric Distribution Enclosure Waterproof Clear Cover

Large Image : Plastic Junction Box 160*160*90mm Electric Distribution Enclosure Waterproof Clear Cover

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	Junction Box 16016090

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	US $18 / Piece
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Material:	ABS + PC	Size:	16016090mm
Waterproof:	IP65	Weight:	420g

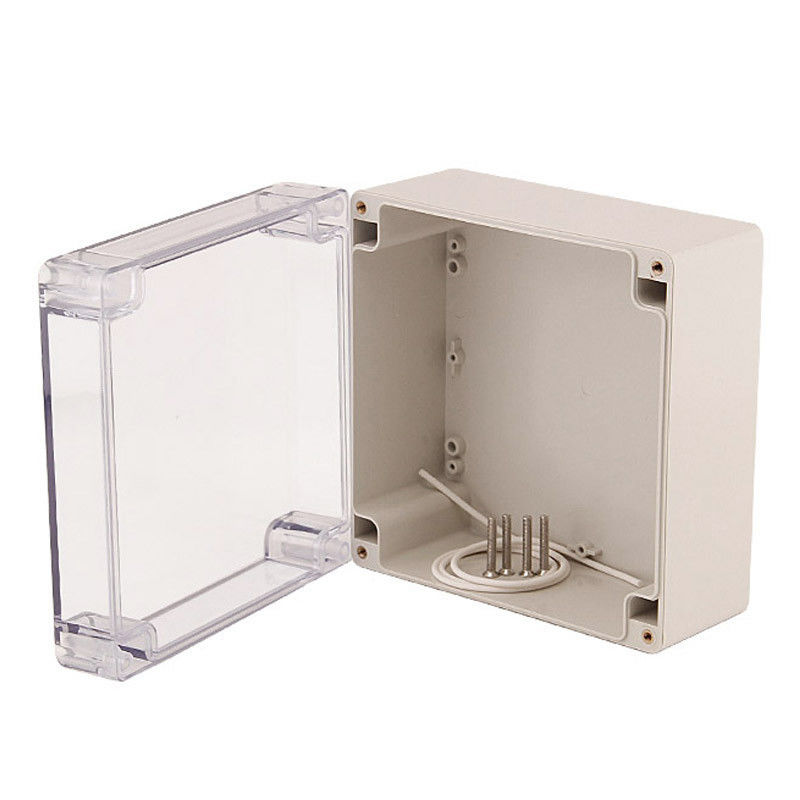

Box Material: ABS

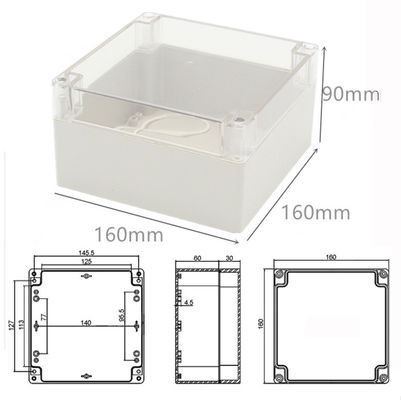

Box outer dimension 160mm length x 160mm width x 90mm height

Wall thickness :2mm

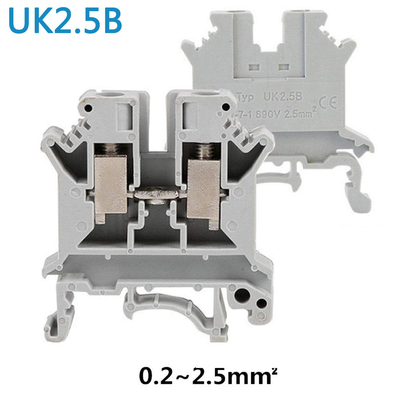

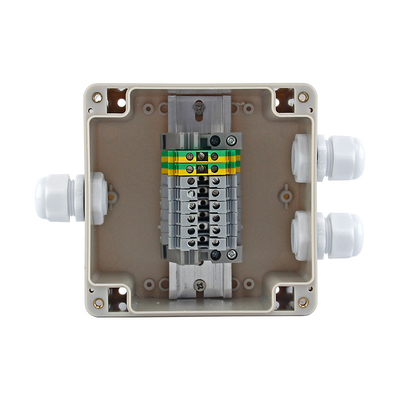

Cable Connectors reference: PG9 Connectors, UK2.5B Din Rail Terminal Blocks, 32A, 600V

Hole size: 36mm

Cable diameter size range: 18mm -25mm

Walll Mounting Instruction

Installation:

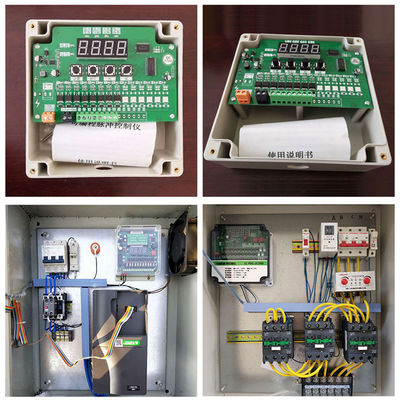

1. Inside Installation: inside the box for the component mounting board or rail bosses.

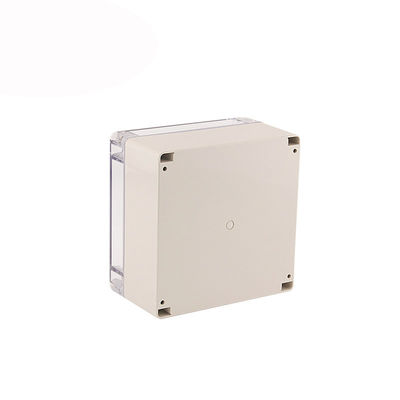

2. External installation: can be fixed directly to the wall through the mounting holes at the bottom of the cartridge body (by the four corners of the box, with screws or nails fixed directly on the wall or board).
