Product Details:
Payment & Shipping Terms:
|
| Material: | ABS Body, PC Cover | Waterproof: | IP65 |
|---|

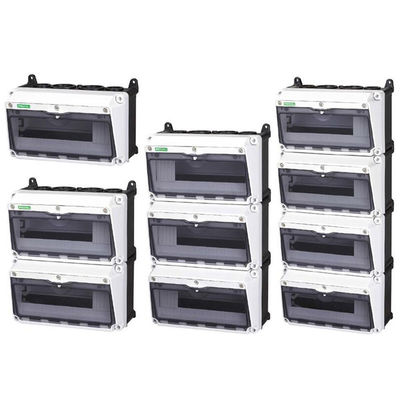

12 Ways 24 Ways 36 Ways 48 Ways

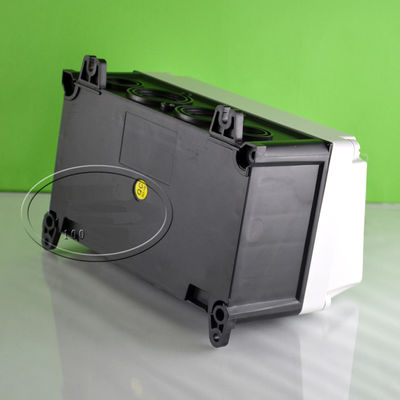

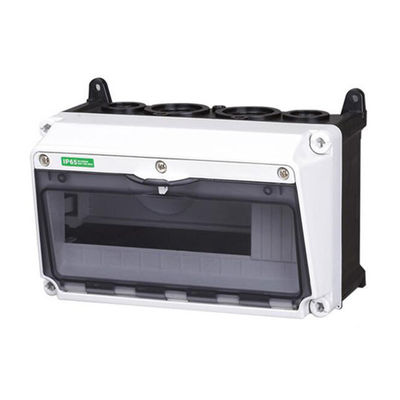

Material:PC enclosure.

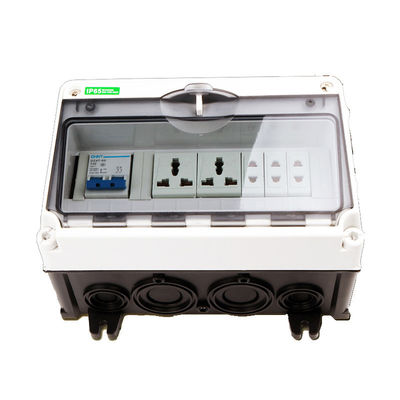

Application: for the installation of Terminal Substitution Rail, Button Box, Small Terminal, Signal ,Relay and Sensor,
Communication and joint Box etc
Distribution Box weighs approximately 1/4 the weight of an iron box and can be easily installed or moved.
The product is free from corrosion, carries superior insulation.
Distribution boxes are waterproof, dustproof,anticorrosion,high-strength insulation.
35mm standard din rail could be installed
OEM/ODM service are offerred. Executive standard: IEC60529 EN 60309 IP65
| code number | box size | carton size | qty per carton | Gross weight |
| 0012 | 260x190x180mm | 710x395x560mm | 12pcs | 21kg |
| 0024 | 260x340x180mm | 710x395x560mm | 8pcs | 23kg |
| 0036 | 260x490x180mm | 555x510x590mm | 6pcs | 22kg |
| 0048 | 260x690x180mm | 665x555x590mm | 6pcs | 22.5kg |
Dimension Size : mm
