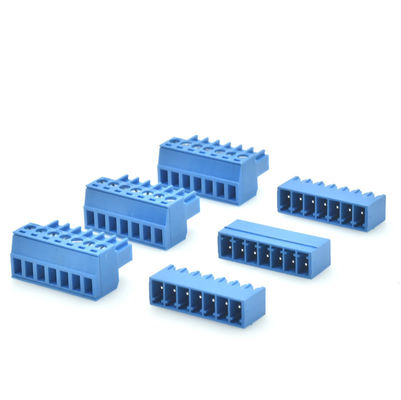

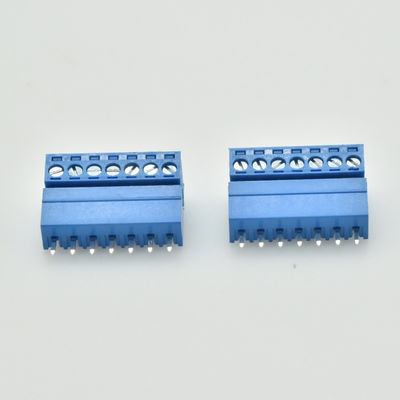

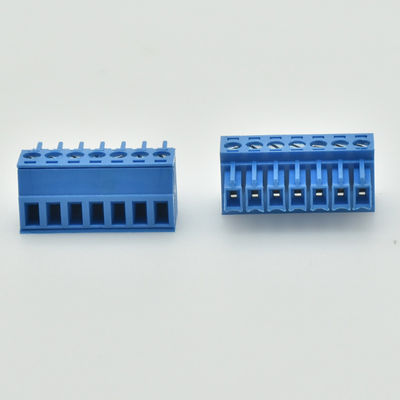

3.81mm or 3.50mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Blue Color

3.81mm or 3.50mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Blue Color
3.81mm or 3.50mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Blue Color 3.81mm or 3.50mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Blue Color 3.81mm or 3.50mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Blue Color 3.81mm or 3.50mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Blue Color 3.81mm or 3.50mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Blue Color

Large Image :  3.81mm or 3.50mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Pin Header Blue Color

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: EC201-03-3.81 / EC501R-3.81

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: US $0.99
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Rated Voltage: 300V Rated Current: 10A
Type: Plug With Socket Color: Blue Or Other
Application: Industrial

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 3.81mm or 3.50mm
Poles: 2 Pins to 20 pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~16AWG


Note: The terminal blocks are in stock  from 2 poles to 24 poles
