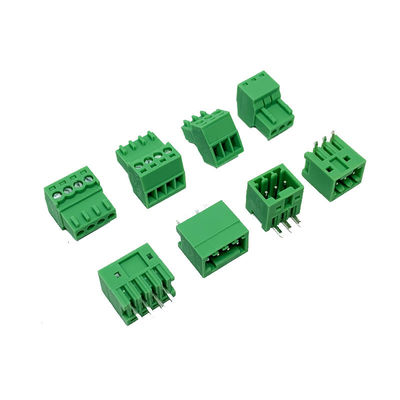

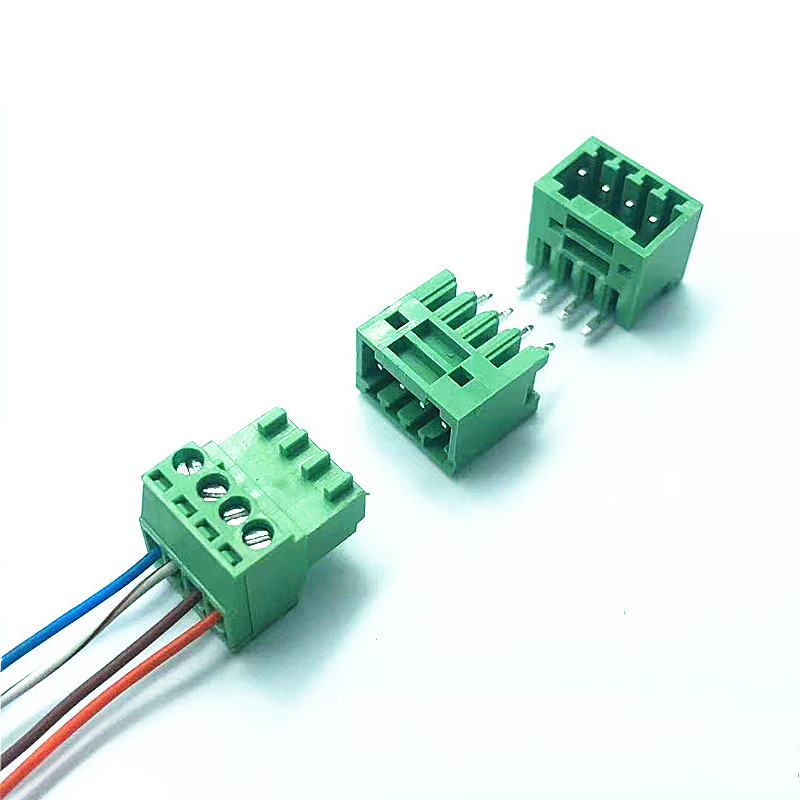

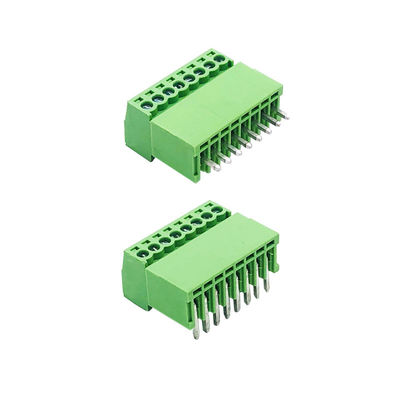

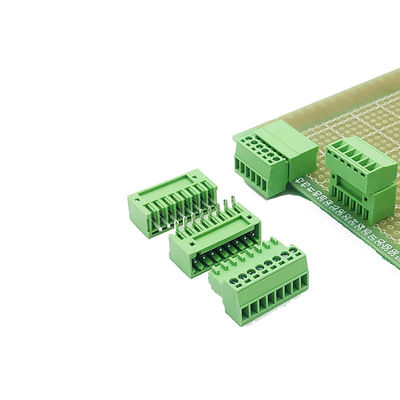

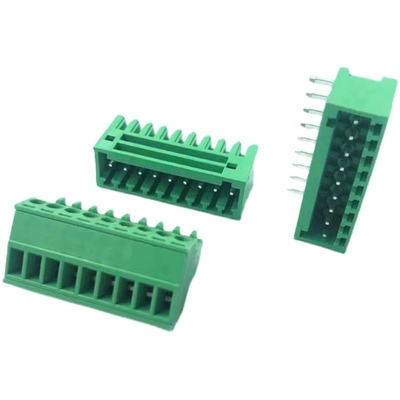

2.54mm Pitch PCB Screw Terminal Blocks Plug + Pin Header 125V 4Amp

2.54mm Pitch PCB Screw Terminal Blocks Plug + Pin Header 125V 4Amp
2.54mm Pitch PCB Screw Terminal Blocks Plug + Pin Header 125V 4Amp 2.54mm Pitch PCB Screw Terminal Blocks Plug + Pin Header 125V 4Amp 2.54mm Pitch PCB Screw Terminal Blocks Plug + Pin Header 125V 4Amp 2.54mm Pitch PCB Screw Terminal Blocks Plug + Pin Header 125V 4Amp 2.54mm Pitch PCB Screw Terminal Blocks Plug + Pin Header 125V 4Amp 2.54mm Pitch PCB Screw Terminal Blocks Plug + Pin Header 125V 4Amp 2.54mm Pitch PCB Screw Terminal Blocks Plug + Pin Header 125V 4Amp

Large Image :  2.54mm Pitch PCB Screw Terminal Blocks Plug + Pin Header 125V 4Amp

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: KF2EDG-2.54

Payment & Shipping Terms:

Minimum Order Quantity: 200 Pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Rated Voltage: 125V Rated Current: 4A
Type: Electrical Plug Application: Industrial

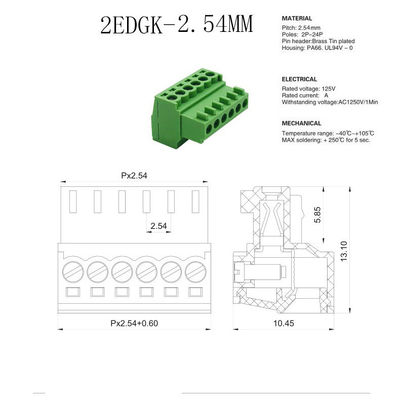

Specifications:

Condition: Brand New
Certification: CE, Rohs

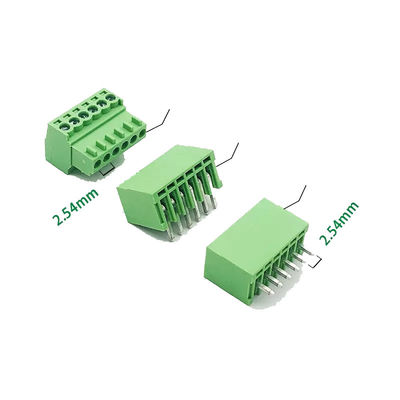

Pitch: 2.54mm
Poles: 2 Pins to 20 pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 125V
Rated current: 4A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~18AWG

Note: The terminal blocks are in stock  from 2 poles to 12 poles
2.54mm Pitch PCB Screw Terminal Blocks Plug + Pin Header 125V 4Amp 0
