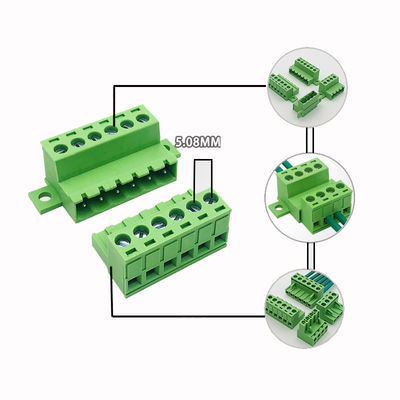

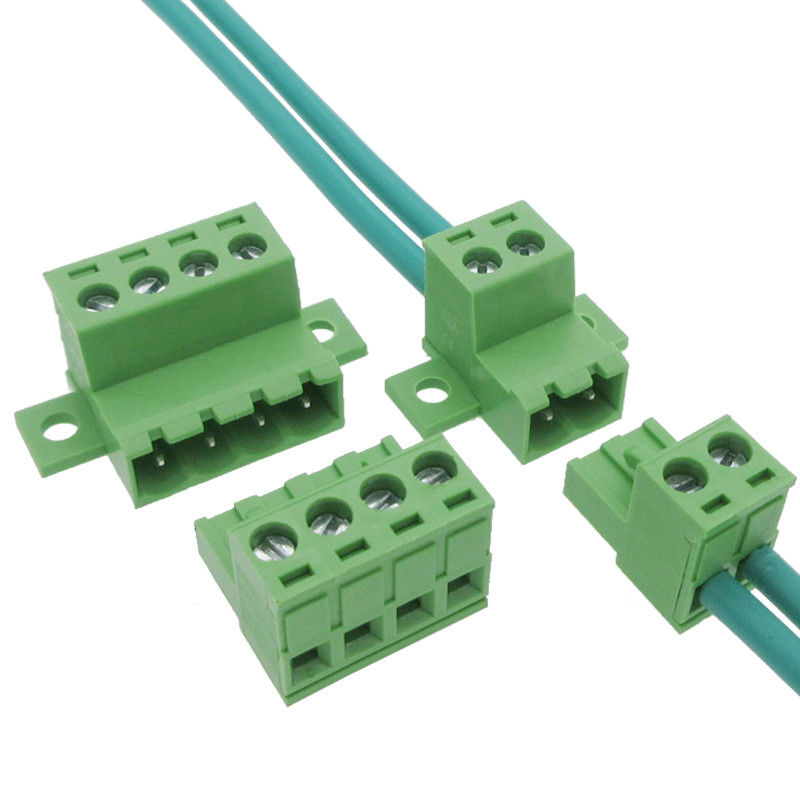

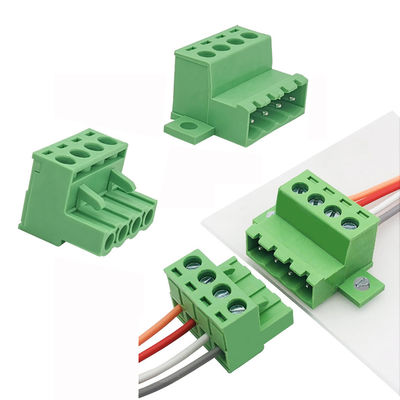

5.08 mm pitch Fixed Flange Screw Terminal Blocks Panel Mounting

Large Image : 5.08 mm pitch Fixed Flange Screw Terminal Blocks Panel Mounting

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE

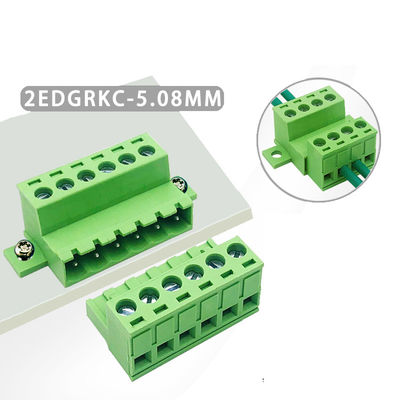

Model Number:	2EDGRKC-5.08

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-15 days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1000 /Pieces per Day

Contact Now

Detailed Product Description

Number Of Contacts:	1 - 10	Conductor Size:	11 - 20 AWG
Type:	Screw

Specifications:

Condition: Brand New

Certification: CE, Rohs

Pitch:5.08mm

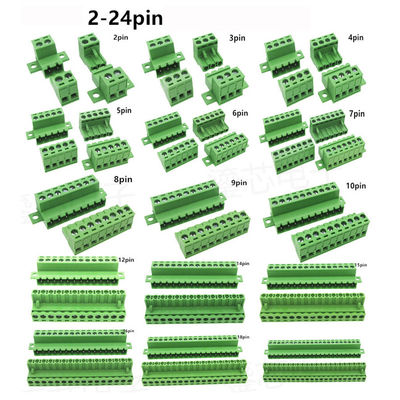

Poles: 2 pins to 16 pins

Color: Green

Torque: 0.2Nm

Strip length: 5-6mm

Rated voltage: 300V

Rated current: 10A

Insulation resistance: 5000MΩ/1000V

Contact resistance: 20mΩ

Withstanding voltage: 2000V/1min

Wire range: 16~20AWG
