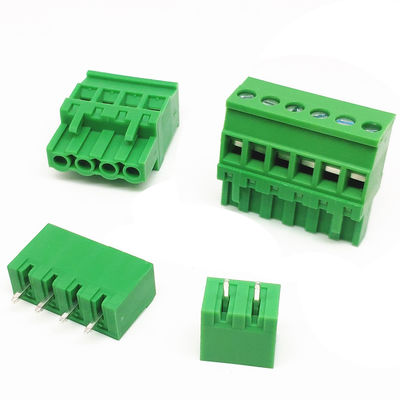

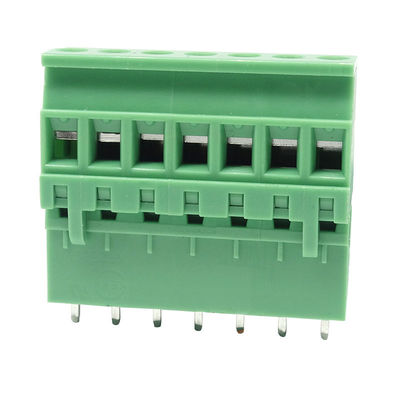

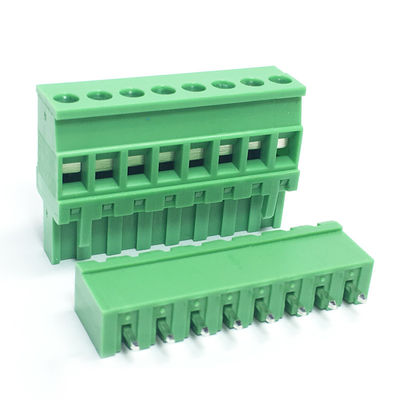

5.08mm Pitch PCB Screw Terminal Blocks Plug Straight Pin Header Horizontal Wiring Entry

5.08mm Pitch PCB Screw Terminal Blocks Plug Straight Pin Header Horizontal Wiring Entry
5.08mm Pitch PCB Screw Terminal Blocks Plug Straight Pin Header Horizontal Wiring Entry 5.08mm Pitch PCB Screw Terminal Blocks Plug Straight Pin Header Horizontal Wiring Entry 5.08mm Pitch PCB Screw Terminal Blocks Plug Straight Pin Header Horizontal Wiring Entry 5.08mm Pitch PCB Screw Terminal Blocks Plug Straight Pin Header Horizontal Wiring Entry 5.08mm Pitch PCB Screw Terminal Blocks Plug Straight Pin Header Horizontal Wiring Entry 5.08mm Pitch PCB Screw Terminal Blocks Plug Straight Pin Header Horizontal Wiring Entry 5.08mm Pitch PCB Screw Terminal Blocks Plug Straight Pin Header Horizontal Wiring Entry

Large Image :  5.08mm Pitch PCB Screw Terminal Blocks Plug Straight Pin Header Horizontal Wiring Entry

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: EC202A-03-5.08 / EC601V-5.08

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1000 /Pieces per Day
Contact Now
Detailed Product Description
Rated Voltage: 300V Rated Current: 10A
Type: Electrical Plug Grounding: Non-Grounding
Application: Industrial

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 5.08mm
Poles: 2 Pins to 20 pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~16AWG

Note:

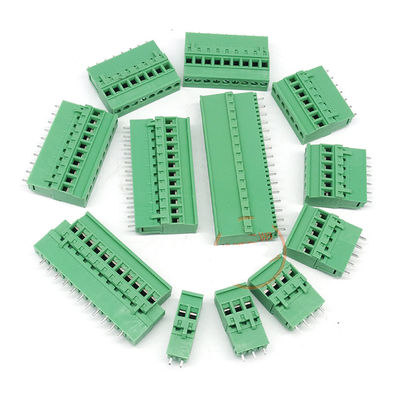

The terminal blocks are in stock  from 2 poles to 20 poles5.08mm Pitch PCB Screw Terminal Blocks Plug Straight Pin Header Horizontal Wiring Entry 0
