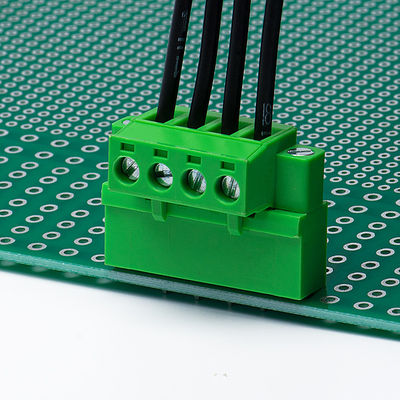

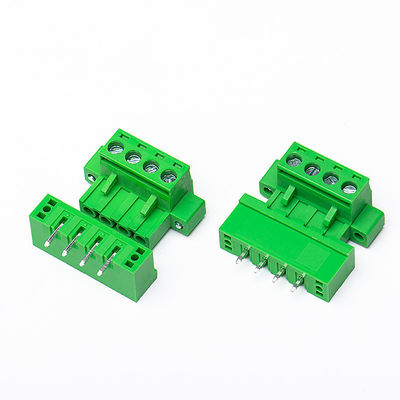

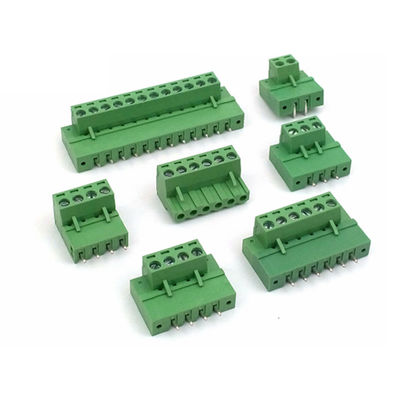

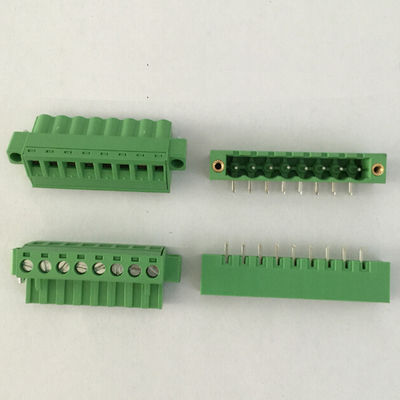

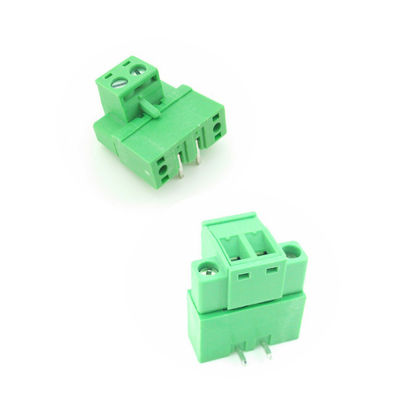

5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange

Certification
China Shenzhen Jetacon Technology Ltd certification
China Shenzhen Jetacon Technology Ltd certification
I'm Online Chat Now

5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange

5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange
5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange 5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange

Large Image :  5.08mm Pitch PCB Plug-in Screw Terminal Blocks Plug Right Angle Pin Header with Flange

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: EC201M-02-5.08 / EC601RM-01-5.08

Payment & Shipping Terms:

Minimum Order Quantity: 100 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description
Rated Voltage: 300V Rated Current: 10A
Type: Plug With Socket Grounding: Non-Grounding
Application: Industrial

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 5.08mm
Poles: 2 Pins to 20 pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~16AWG

Note:

The terminal blocks are in stock  from 2 poles to 20 poles
