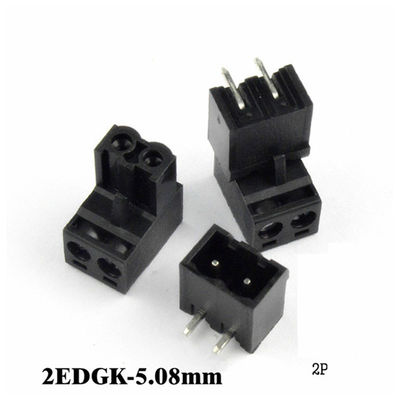

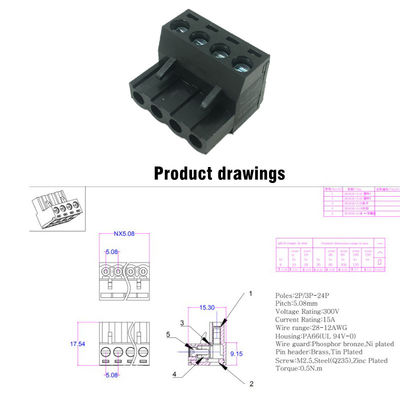

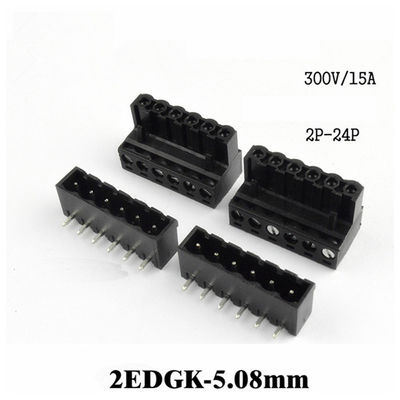

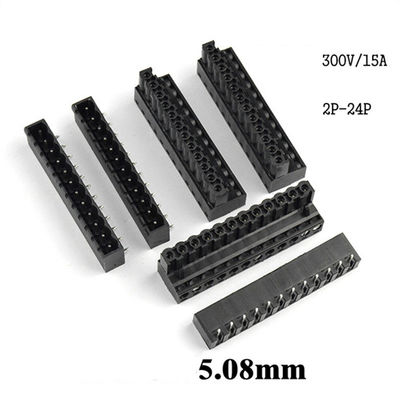

5.08mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Right Angle Pin Header Black

5.08mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Right Angle Pin Header Black
5.08mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Right Angle Pin Header Black 5.08mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Right Angle Pin Header Black 5.08mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Right Angle Pin Header Black 5.08mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Right Angle Pin Header Black 5.08mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Right Angle Pin Header Black

Large Image :  5.08mm Pitch PCB Pluggable Screw Terminal Blocks Plug + Right Angle Pin Header Black

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: 2EDG-02-5.08 / 2EDGR V-5.08

Payment & Shipping Terms:

Minimum Order Quantity: 200 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description
Number Of Contacts: 1 - 10 Conductor Size: 11 - 20 AWG
Type: Screw

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 5.08mm
Poles: 2 Pins to 20 pins
Color: Black
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~16AWG

Note:

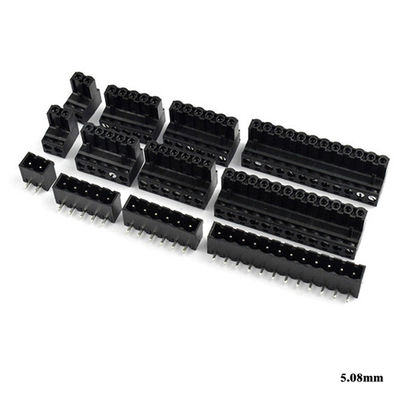

The terminal blocks are in stock  from 2 poles to 20 poles
