USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix

USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix
USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix

Large Image :  USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: USLKG-50

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 200 /Pieces per Day
Contact Now
Detailed Product Description
Number Of Contacts: 1 - 10 Conductor Size: 11 - 20 AWG
Type: Screw

-

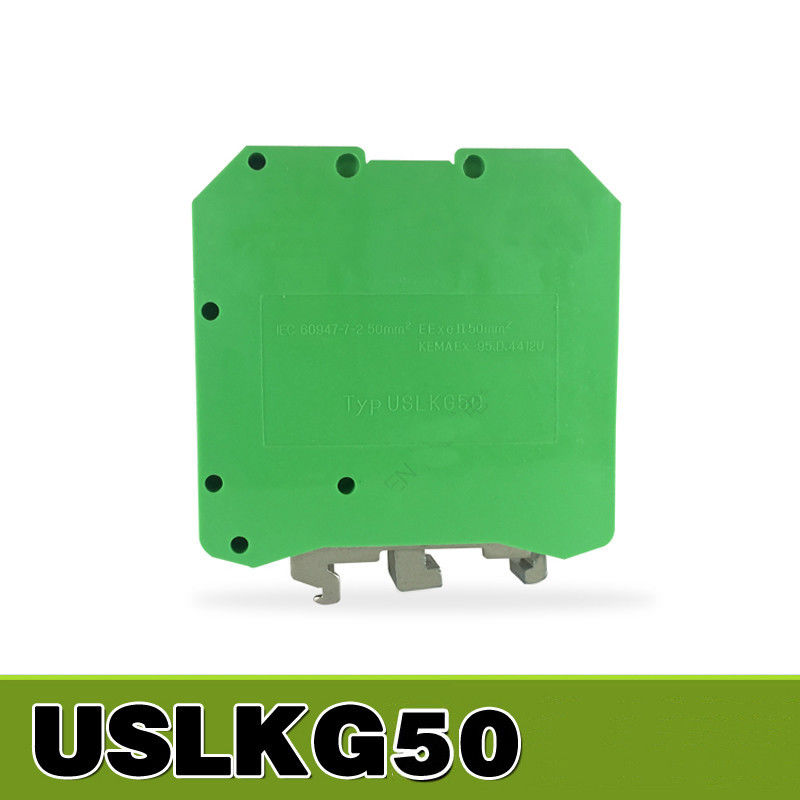

USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix 0
Specifications:

---



Height                            mm

62/69.5/67

Depth/Width/Plate depth             mm

15.2/50/-

Current/Cross-section             A/mm²

150/50.0


Technical date                             IEC 60947-7-1

Rated date

IEC

UL

CSA

EN50019

Rated voltage

1000

1000

600

750

Rated current

150

150

112

145

Rated cross-section

35.0

AWG18-1

AWG18-2

35

Rated impulse withstand/Pollution severity

8KV/3

UL 94 flammability rating of insulation material

V-0 or V-2

Insulating material/Approval

PA66


(H05V/H07V) Lead                         Rated Cross-section

Solid/Flexible                       mm²

2.5-50.0/2.5-35.0

Flexible with ferrule                 mm²

2.5-35.0/2.5-35.0

Stripping length                   mm/in

16

Screw-thread/Tightening torque       Nm

M6/3.0-3.5


Order info

Color

Order No.

Pack.-unit pcs

Green-yellow

335904

50

---

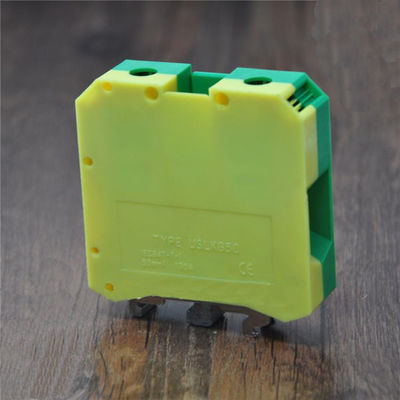

USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix 1

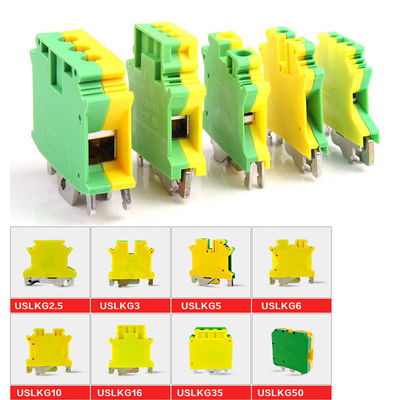

USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix 2
