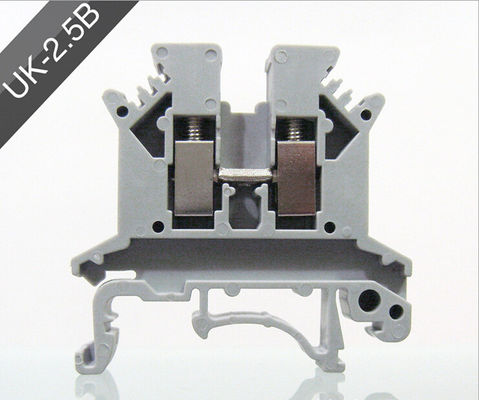

UK2.5B UK Series DIN Rail Screw Clamp Terminal Blocks

Large Image : UK2.5B UK Series DIN Rail Screw Clamp Terminal Blocks

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	UK2.5B

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Number Of Contacts:	1 - 10	Conductor Size:	11 - 20 AWG
Type:	Screw

2.5B

Technical data

Type of connection: Screw connection

Cross section: 0.2mm² - 4mm²

AWG: 24 – 12

Number of levels: 1

Number of connections: 2

Color: gray

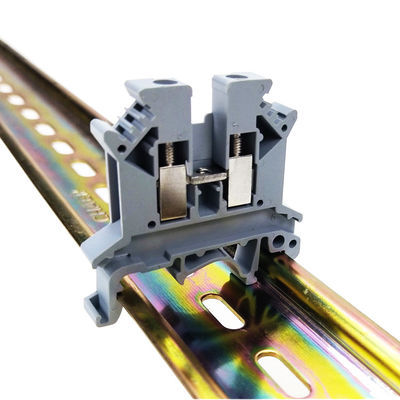

Mounting type: TH35/7.5 DIN rail

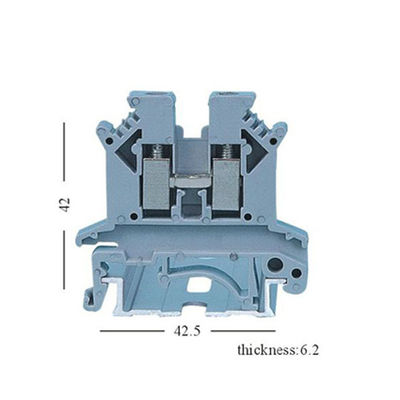

Dimensions

Width 42.5 mm Length 42 mm

Net weight :0.075kg/piece

---------------

Accessories

Item	Designation	Description
Assembly
Partition plate	TS-K	Length: 56 mm, Width: 1.5 mm, Height: 59 mm, Color: gray
End cover	D-UK 2.5	Length: 37.6 mm, Width: 1.5 mm, Height: 30.7 mm, Color: gray
End clamp/end stopper	E/UK	for assembly on TH35/7.5 DIN rail
Bridges
bridge	FB1 10-6	Number of positions: 10, can be divided into 2 or 3 positions Material: aluminum
Marking
Marking strip	ZB3	10-section, divisible, special printing, marking according to customer requirements
Marking stand	UBE/D	width: 15mm
	JHB1	width: 10mm
	EUK/B	transparent
