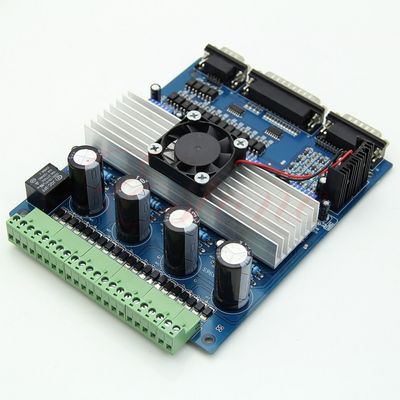

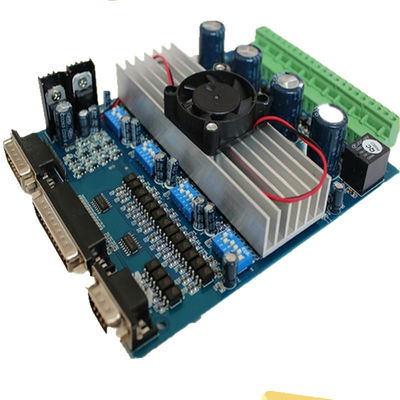

Stepper Motor Driver TB6560 4 axis Controller Board for CNC Engraving Machine 0-10V

Description:

Toshiba TB6560AHQ chip - High power, maximum 3.5A drive current chipset
1-1/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step!
Adjustable drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors
Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment
On board current switching - Power output can be set according to specific user requirement
Full closed-type optical isolation to protect the user\'s computer and equipment
Relay spindle interface - Outputs Max. 36V 7.5A for spindle motors or coolant pump (only one device can be powered by this output!)
4 channel inputs interface- Can be used for XYZ limit and emergency stop
Professional design - Two stage signal processing with super anti-jamming
Bipolar constant current chopper drive with non-resonant region - Controls motors smoothly through range without creep effect
Four control inputs (divided into pairs of knives) - Allows setting of limit and emergency stop
Universal architecture - Supports most parallel software MACH3, KCAM4, EMC2 etc!
Board size:18.5x14x4cm(approx)
Cable length: 130cm(approx)

-

Dip settings:

•

  Current Setting	1	2	Decay Mode Settings	3	4	MicroStep Settings	5	6
  100%	ON	ON	FAST	ON	ON	1	ON	ON
  75%	OFF	ON	25%	ON	OFF	1/2	ON	OFF
  50%	ON	OFF	50%	OFF	ON	1/8	OFF	OFF
  25%	OFF	OFF	SLOW	OFF	OFF	1/16	OFF	ON

-

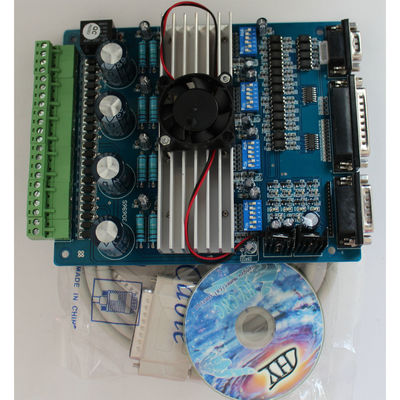

Package includes:

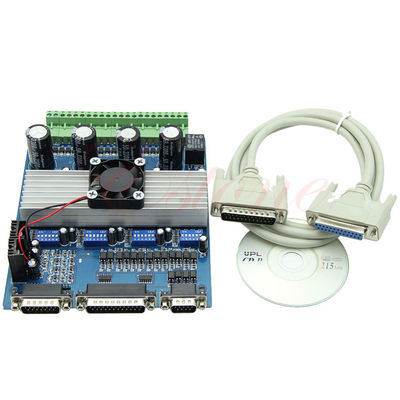

CNC TB6560 4 Axis Stepper Motor Driver Controller Board x 1
Cable x 1
CD x 1
