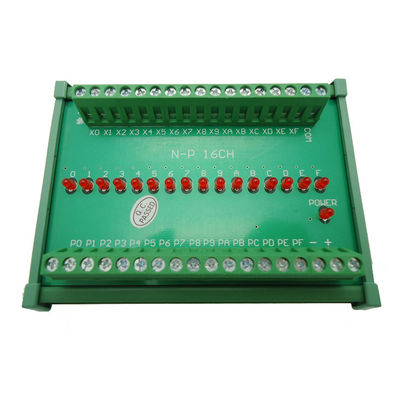

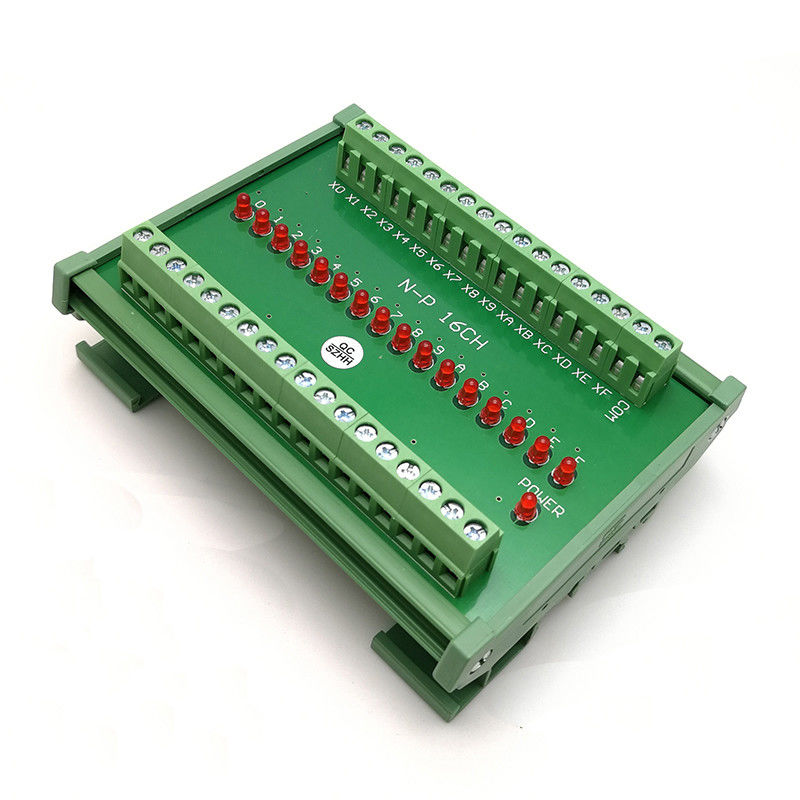

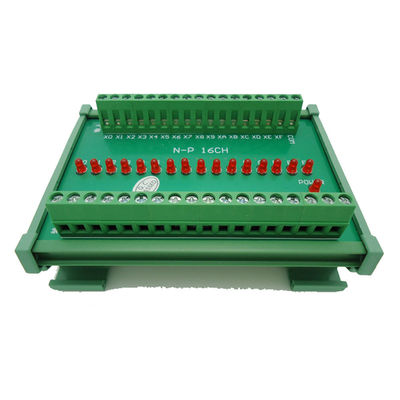

PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways

Large Image : PLC Signal Conversion Module Level Polarity Converter NPN to PNP 16 Ways

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	N-P 16CH 24V

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Color:	Green	Ways:	16 Ways
Rate:	10Khz	Current:	500mA Maxium Each Channel

Item Number: N-P 16CH or P-N 16CH

NPN to PNP ( or PNP to NPN ) signals level converters, Opto-couplers isolation

LED indicator for output ON

Supply Voltage : 24 VDC

Output Voltage : 24 VDC

Current consumption each channel: 500mA maxium

Standard DIN rail mounting ( 35 mm)

Temperature range 10 to 55 C

high speed counting up to 10Khz

Product size : 113mm L x 87mm W x 43mm H

Weight: 120g

---

Note: Item number: P-N 16CH, PNP to NPN 16 channes Converter is also available
