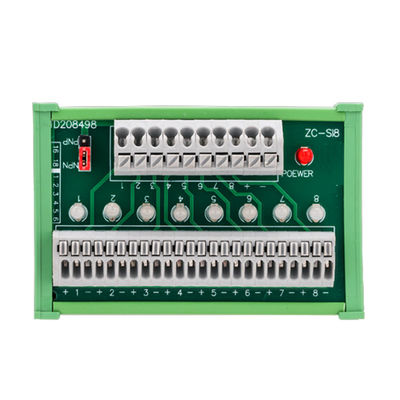

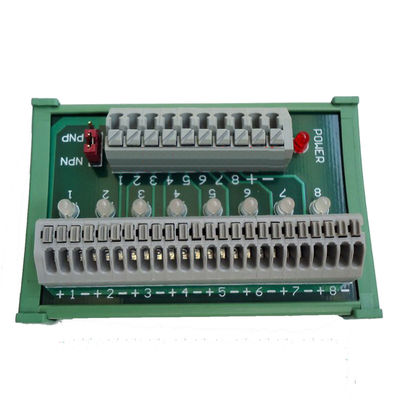

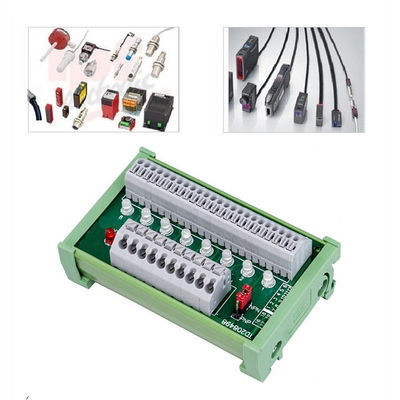

8 Channel Sensor Singal Wiring Distribution Breakout Board Terminal Blocks DIN Rail Mount

8 Channel Sensor Singal Wiring Distribution Breakout Board Terminal Blocks DIN Rail Mount
8 Channel Sensor Singal Wiring Distribution Breakout Board Terminal Blocks DIN Rail Mount 8 Channel Sensor Singal Wiring Distribution Breakout Board Terminal Blocks DIN Rail Mount 8 Channel Sensor Singal Wiring Distribution Breakout Board Terminal Blocks DIN Rail Mount 8 Channel Sensor Singal Wiring Distribution Breakout Board Terminal Blocks DIN Rail Mount 8 Channel Sensor Singal Wiring Distribution Breakout Board Terminal Blocks DIN Rail Mount 8 Channel Sensor Singal Wiring Distribution Breakout Board Terminal Blocks DIN Rail Mount

Large Image :  8 Channel Sensor Singal Wiring Distribution Breakout Board Terminal Blocks DIN Rail Mount

Product Details:

Place of Origin: China Mailand
Brand Name: Jetacon
Certification: CE
Model Number: ZC-SI8

Payment & Shipping Terms:

Minimum Order Quantity: 3
Price: US $29.99
Packaging Details: Box Package
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 50pcs / per day
Contact Now
Detailed Product Description
Color: Green Way Number: 8
Application: Automation

Features:

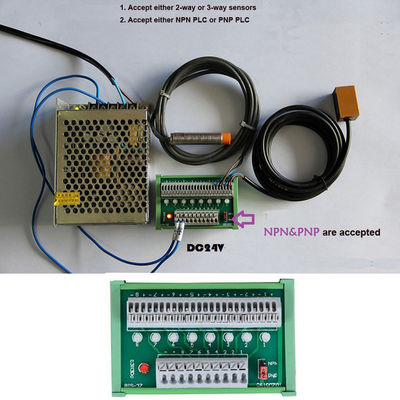

it is compatible with 2 wire sensor and 3 wire sensor.

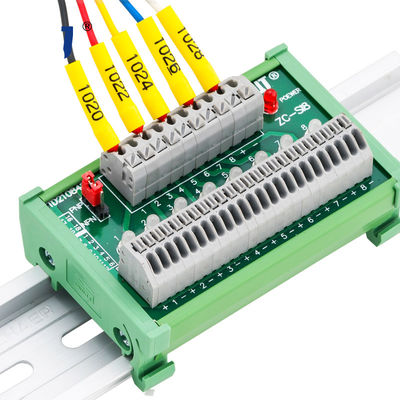

Standard Din Rail Type ( 35mm)

8 groups of singals inputs are available

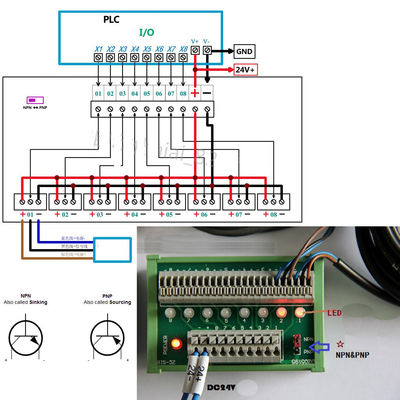

It accepts the sensor which is 0V(NPN) or 24V (PNP)


Voltage input : 24VDC

Rated Current for single wire: 0.5A

Rated Current for total 8 wires : 2A

Package Including : 1* Sensor Cable Distribution Breakout Board


Note: sometimes the item is from customized products, the actual productwill have some minor difference from the photo, thanks

8 Channel Sensor Singal Wiring Distribution Breakout Board Terminal Blocks DIN Rail Mount 0

8 Channel Sensor Singal Wiring Distribution Breakout Board Terminal Blocks DIN Rail Mount 1
