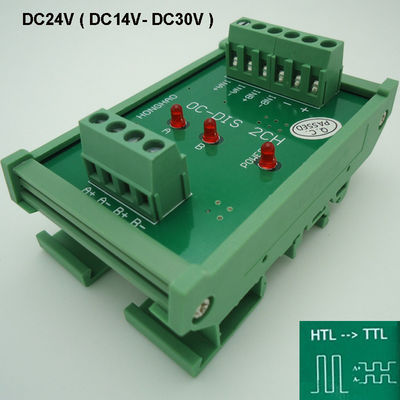

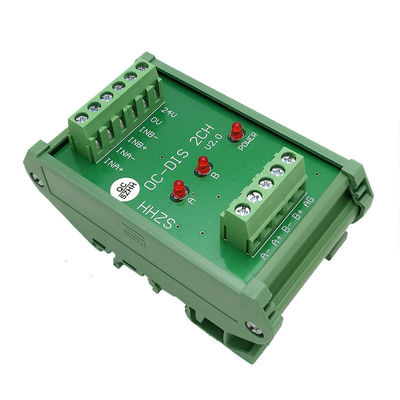

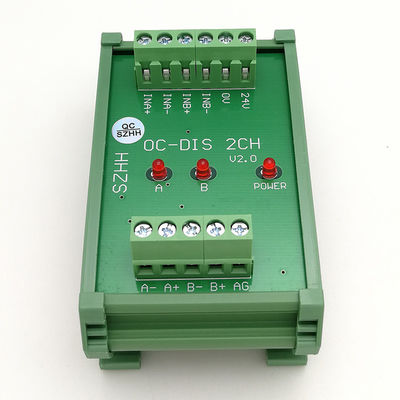

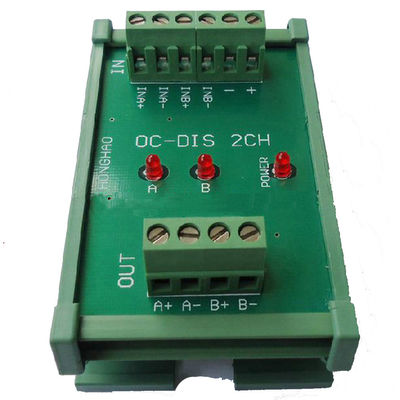

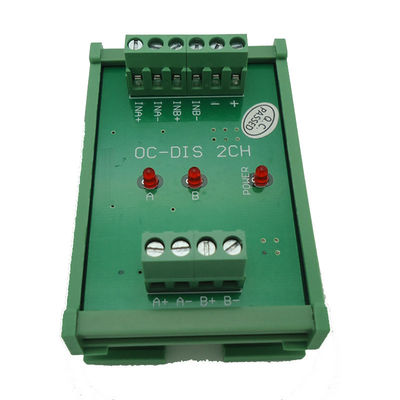

Converter of Open Collector HTL 24v into Differential TTL 5v Signal 2 Ways Universal

The main converter purpose is to change OC (open collector) HTL signal (24V) into TTL (5V) impulse signal or differential signal , to control the servo system

Support A, B, and Z three-phase differential simultaneous conversion
Industrial Temperature Range: - 45 ~ + 85 ℃

Introduction:
1. The main converter purpose is to change OC (open collector) HTL signal (24V) into TTL (5V) impulse signal or differential signal , 2 channels, electrical isolation between input and output,control the PLC Servo system
2. Working frequency: 2000000Hz
3. The Iutput mode: Accept All NPN or PNP PLC interface .
4. Installation: DIN35mm rail mounting,convenient and quick!
5. Product Size: 53mm x 87mm x 35mm
6. Rated Working Power Voltage: DC24V ( DC14V- DC30V is also available in some condition)


Package Included:
1 * Differential to Collector
Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
