1 In 2 Out Servo Encoder Pulse Signal Splitter Distributor 5V TTL / RS422 Input Output

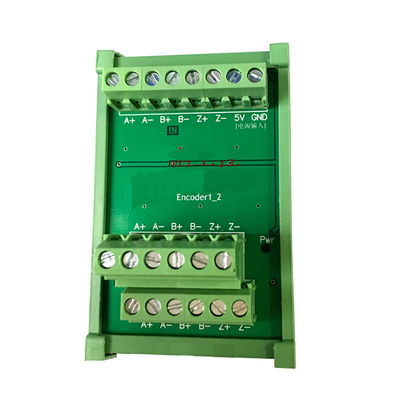

Large Image : 1 In 2 Out Servo Encoder Pulse Signal Splitter Distributor 5V TTL / RS422 Input Output

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	Encoder 1- 2

Payment & Shipping Terms:

Minimum Order Quantity:	5 pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Color:	Green	Size:	52mm X 85mm X 53mm
Input:	A/A B/B Z/Z X1	Output:	A/B B/B Z/Z X2

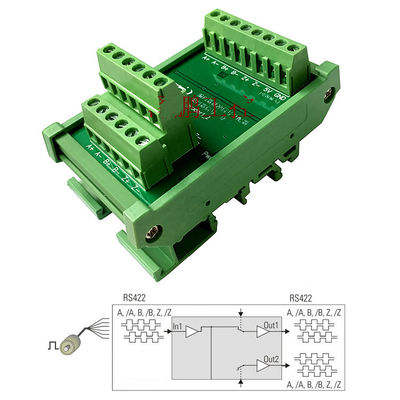

Introduction:

1 encoder input programmable with format A, /A, B, /B, Z, /Z [TTL / RS422]
2 pulse output with format A, /A, B, /B, Z, /Z with individual adjustable output levels 5 V [TTL]
Power supply optionally 5 VDC

Frequency Range: 0 - 200 kHz

Wire Gauge Accepted: 26 -16 AWG

Mounting Options: DIN 35

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 70°C

Operational Humidity: 98% non-condensing

Product size:62mm Width x 87mm Length x 46mm Height

Applications:

Package Included:
1 * 2-Way Pulse Distributor
Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
