Converter of Open Collector HTL 24v into Differential TTL 5v Signal 4 Ways Universal

Certification
China Shenzhen Jetacon Technology Ltd certification
China Shenzhen Jetacon Technology Ltd certification
I'm Online Chat Now

Converter of Open Collector HTL 24v into Differential TTL 5v Signal 4 Ways Universal

Converter of Open Collector HTL 24v into Differential TTL 5v Signal 4 Ways Universal
Converter of Open Collector HTL 24v into Differential TTL 5v Signal 4 Ways Universal Converter of Open Collector HTL 24v into Differential TTL 5v Signal 4 Ways Universal Converter of Open Collector HTL 24v into Differential TTL 5v Signal 4 Ways Universal Converter of Open Collector HTL 24v into Differential TTL 5v Signal 4 Ways Universal Converter of Open Collector HTL 24v into Differential TTL 5v Signal 4 Ways Universal

Large Image :  Converter of Open Collector HTL 24v into Differential TTL 5v Signal 4 Ways Universal

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: OC-DIS 4CH

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description

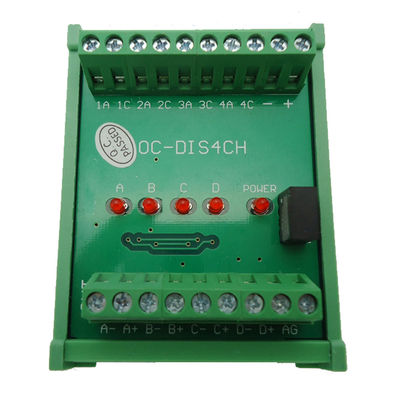

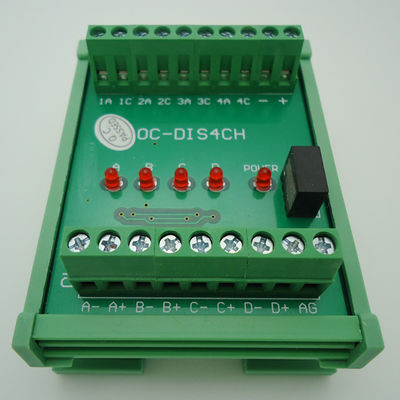

The main converter purpose is to change OC (open collector) HTL signal (24V) into TTL (5V) impulse signal or differential signal , to control the servo system

Support A, B, and Z three-phase differential simultaneous conversion
Industrial Temperature Range: - 45 ~ + 85 ℃

Introduction:

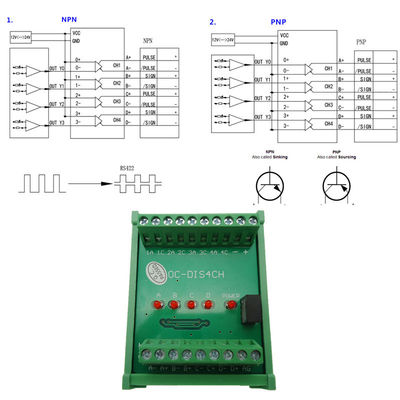

1. The main converter purpose is to change OC (open collector) HTL signal (24V) into TTL (5V) impulse signal or differential signal, 4 channels, electrical isolation between input and output, control the PLC Servo system
2. Working frequency: 500000Hz
3. The Input mode: Accept All NPN or PNP PLC interface.

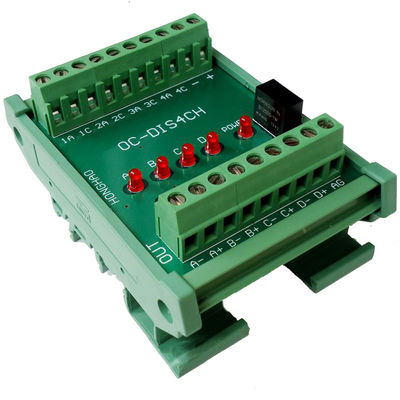

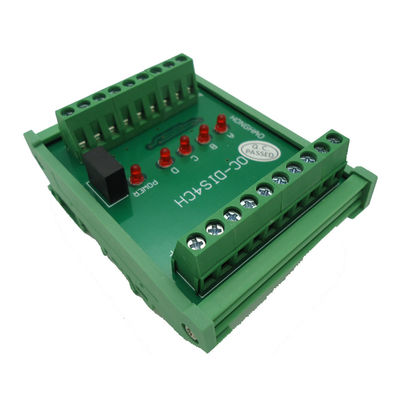

4. Installation: DIN35mm rail mounting, convenient and quick!
5. Product Size: 63mm x 87mm x 35mm
6. Rated Working Power Voltage: DC24V ( DC14V- DC30V is also available in some condition)

Item Number             OC-DIS 4CH HTL to TTL Signal Converter 4 Channels
Application
               PLC high speed counters signal conversion
               Servo motor control signal conversion
               Rotary encoder control signal conversion
               Grating ruler output signal conversion
               PLC and microcontroller pulse signal conversion
               PLC, servo motor control system anti-jamming
Specification
Signals Channels                   4
Power Supply                      10V - 26V DC, 24V Typical
PNP PLC Connection Capability      Yes
NPN PLC Connection Capability      Yes
Optically Isolation                  Yes
Signals Input                         A/B/C/D HTL Signal 24V DC
Signals Output                      A+/A-/B-/B+/C+/C-/C+/D+/D- TTL/RS232 Signal 5V DC
Frequency Range                   0 - 500000Hz Maximum
Current Consumption               100 mA Maximum, Each Channel
Input Impedance:                  Optically isolated, 5.8 kOhms at 24V typical
Isolation Voltage                   2500V
Led indicator                      Red light On
Physical Features
Product Dimension                 62mm Width x 87mm Length x 41mm Height
Net Weight                       58g
Operation Temperature             -25°C to 70°C
Terminal Blocks                     5.08mm Pitch, Green, Screw Type
Wire Gauge                       26 -16 AWG
Mounting Options                  DIN Rail 35 or 32
Operation Humidity                 98% non-condensing
