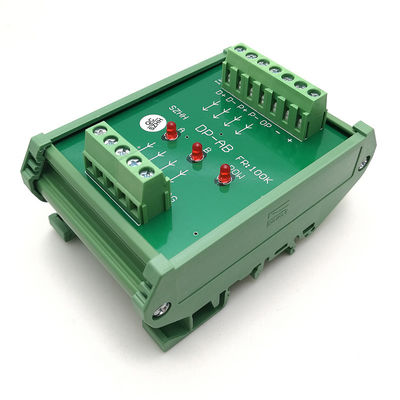

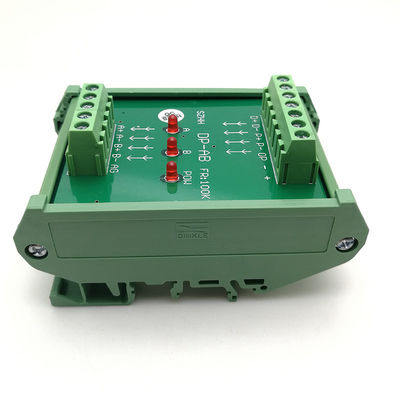

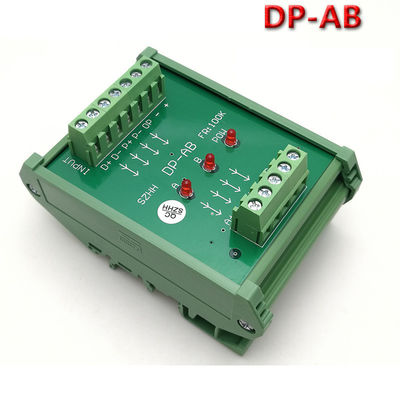

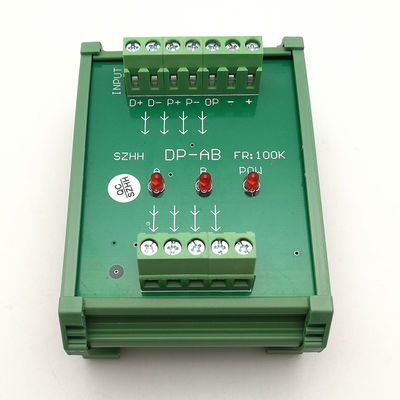

Converter PLC Pusle and Direction Signals to Encoder A B Signal 90° Phase Difference

Converter PLC Pusle and Direction Signals to Encoder A B Signal 90° Phase Difference
Converter PLC Pusle and Direction Signals to Encoder A B Signal 90° Phase Difference Converter PLC Pusle and Direction Signals to Encoder A B Signal 90° Phase Difference Converter PLC Pusle and Direction Signals to Encoder A B Signal 90° Phase Difference Converter PLC Pusle and Direction Signals to Encoder A B Signal 90° Phase Difference Converter PLC Pusle and Direction Signals to Encoder A B Signal 90° Phase Difference

Large Image :  Converter PLC Pusle and Direction Signals to Encoder A B Signal 90° Phase Difference

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: DP-AB

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: US $49 / Piece
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description

Introduction:

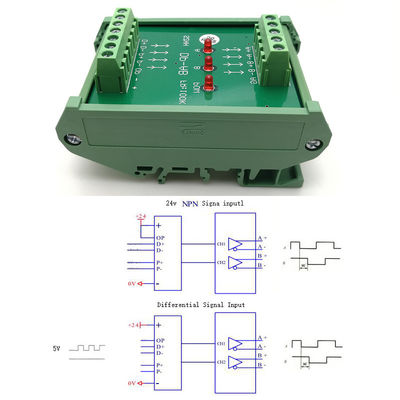

PLC ( Both NPN singal input and 5V differential signal input are accepted ) Converting into A B phase signals with 90 degree phase difference
Frequency Range: 0 - 100 kHz
Application reference: servo motors or electric cylinder. ( 0-100 Khz )

Output Signal: Two independent, isolated line driver output sets (A/A, B/B)
Power Supply Voltage: 24 VDC
Wire Gauge Accepted: 26 -16 AWG
Output Protection: short circuit protected
Mounting Options: DIN 35
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Operational Humidity: 98% non-condensing


Applications:

Package Included:
1 * PLC  Pulse Signal Converter
Note: some times the item is from customized products, the actual product will have some minor difference from
the photo, thanks.

Converter PLC Pusle and Direction Signals to Encoder A B Signal 90° Phase Difference 0
