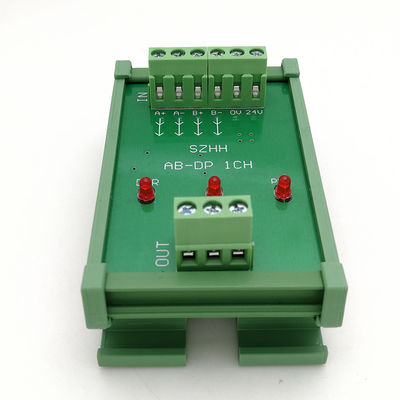

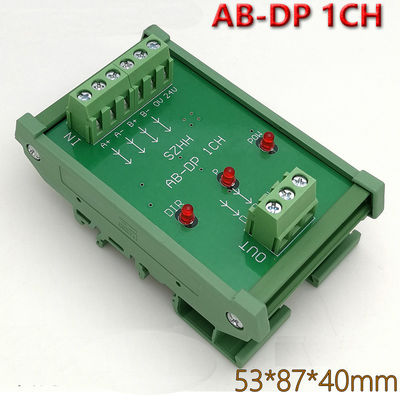

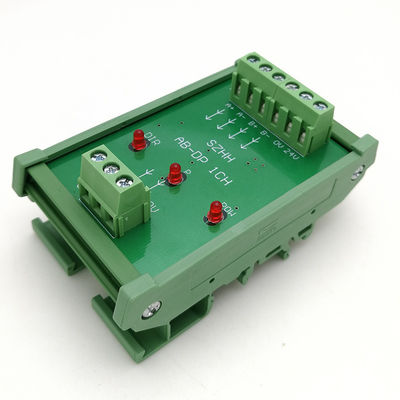

Converter Encoder A B Quadrature Signals 90° Phase Difference into Pusle Signal with Direction

Converter Encoder A B Quadrature Signals 90° Phase Difference into Pusle Signal with Direction
Converter Encoder A B Quadrature Signals 90° Phase Difference into Pusle Signal with Direction Converter Encoder A B Quadrature Signals 90° Phase Difference into Pusle Signal with Direction Converter Encoder A B Quadrature Signals 90° Phase Difference into Pusle Signal with Direction Converter Encoder A B Quadrature Signals 90° Phase Difference into Pusle Signal with Direction Converter Encoder A B Quadrature Signals 90° Phase Difference into Pusle Signal with Direction

Large Image :  Converter Encoder A B Quadrature Signals 90° Phase Difference into Pusle Signal with Direction

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: AB-DP 1CH

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece
Price: US $39 / Piece
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Power Supply: 24 VDC Frequency: 0 - 500KHz

Introduction:

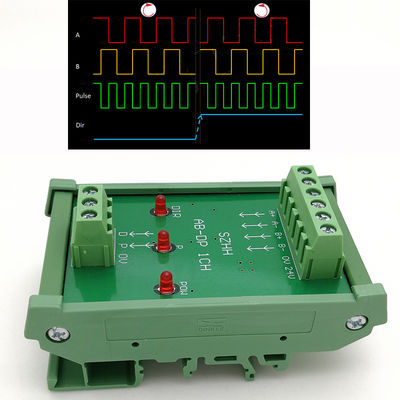

A B phase signals with 90 degree phase difference converting into Pusle Signal and Direction
Frequency Range: 0 - 500 kHz
Application reference: Electronic Handwheel ( Encoder ) A B phase singals converting

Please choose product type options:
Option 1: 24V collector signal input AB-DP-24V
Option 2: 5V differential signal input   AB-DP-5V

Signal input: Pusle Signal and Direction, 24V Collector NPN ouput
Power Supply Voltage: 24 VDC
Wire Gauge Accepted: 26 -16 AWG
Output Protection: short circuit protected
Mounting Options: DIN 35
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Operational Humidity: 98% non-condensing


Applications:

Package Included:
1 *  Encoder Pulse Signal Converter
Note: some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
