3 Channels Differential TTL into Collector 24V HTL Signals Converter for PLC NPN or PNP

Certification
China Shenzhen Jetacon Technology Ltd certification
China Shenzhen Jetacon Technology Ltd certification
I'm Online Chat Now

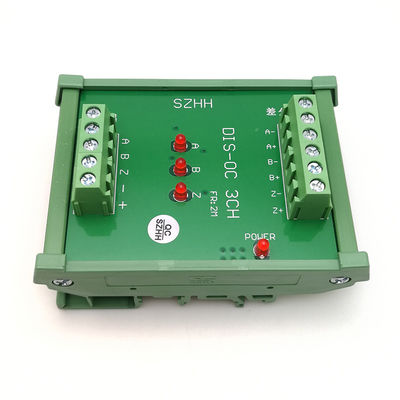

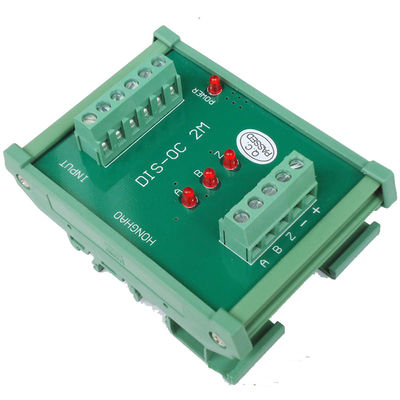

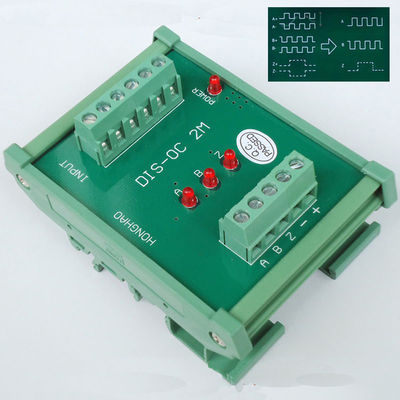

3 Channels Differential TTL into Collector 24V HTL Signals Converter for PLC NPN or PNP

3 Channels Differential TTL into Collector 24V HTL Signals Converter for PLC NPN or PNP
3 Channels Differential TTL into Collector 24V HTL Signals Converter for PLC NPN or PNP 3 Channels Differential TTL into Collector 24V HTL Signals Converter for PLC NPN or PNP 3 Channels Differential TTL into Collector 24V HTL Signals Converter for PLC NPN or PNP 3 Channels Differential TTL into Collector 24V HTL Signals Converter for PLC NPN or PNP 3 Channels Differential TTL into Collector 24V HTL Signals Converter for PLC NPN or PNP

Large Image :  3 Channels Differential TTL into Collector 24V HTL Signals Converter for PLC NPN or PNP

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: DIS-OC 3CH

Payment & Shipping Terms:

Minimum Order Quantity: 5 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description
Power Supply: DC 24V Singal Input: 5V TTL A+ A- B+ B- Z+ Z-
Singal Output: 24V HTL

Introduction:
1. Make the differential signal to the open collector signal output, 3 Channels, electrical isolation between input and output.
2. Working frequency: 2000000Hz
3. The collector output mode: using push-pull output mode,support NPN or PNP input's PLC interface .
4. Installation: DIN35mm rail mounting,convenient and quick!
5. Product Size: 51mm x 87mm x 41mm around
6. Rated Working Power Voltage: DC24V ( DC14V- DC30V is also available in some condition)
7. Singal Output Voltage: HTL

Features:
1. servo driver output A B Z signal to the collector output signal, input to the PLC high-speed counter interface.
2. the differential encoder output signal to the collector output signal, input to the PLC high-speed counter interface.
3. for a plurality of servo motor speed synchronization control.


Item Number             DIS-OC 3CH TTL to HTL Sigal Converter 3 Channles
Application
               PLC high speed counter signal conversion
               Servo motor control signal conversion
               Rotary encoder control signal conversion
               Grating ruler output signal conversion
               PLC and microcontroller pulse signal conversion
               PLC, servo motor control system anti-jamming
               Differential signal converted to other pulse signal
Specification
Signals Channels                  3
Power Supply                      10V - 26V DC, 24V Typical

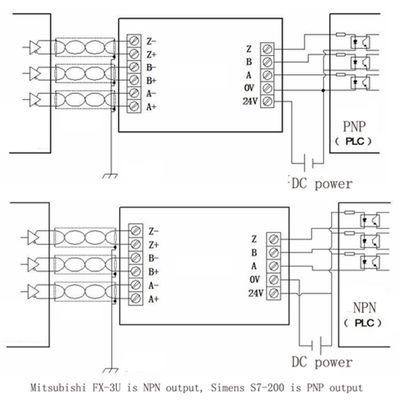

PNP PLC Connection Compability    Yes
NPN PLC Connection Compability    Yes
Optically Isolation               Yes
Signals Input                     A+/A-/B-/B+/Z+/Z- TTL/RS232 Signal 5V DC
Signals Output                      A/B/Z HTL Signal
Frequency Range                   0 - 2000000Hz Maximum
Current Comsumption               100 mA Maximum, Each Channel
Input Impedance:                  Optically isolated, 5.8 kOhms at 24V typical
Isolation Voltage                 2500V
Led indicator                     Red light On
Physical Features

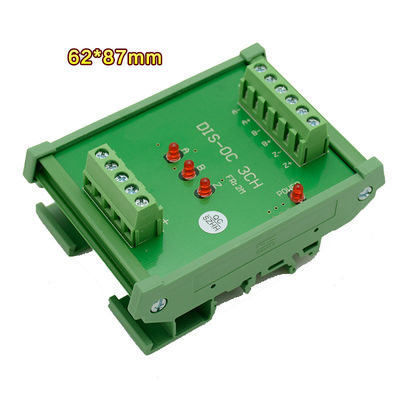

Product Dimension                 62mm Width x 87mm Length x 41mm Height
Net Weight                        52g
Operation Temperature             -25°C to 70°C
Terminal Blocks                    5.08mm Pitch, Green, Screw Type
Wire Gauge                       26 -16 AWG
Mounting Options                 DIN Rail 35 or 32
Operation Humidity               98% non-condensing
