Introduction:
1. Make the differential signal to the open collector signal output, 4 Channels, electrical isolation between input and output.
2. Working frequency: 2000000Hz
3. The collector output mode: using push-pull output mode,support
NPN or PNP input's PLC interface .
4. Installation: DIN35mm rail mounting,convenient and quick!
5. Product Size: 135mm x 87mm x 35mm around
6. Rated Working Power Voltage: DC24V ( DC14V- DC30V is also available in some condition)
7. Singal Output Voltage: HTL
Applications:
1. servo driver output A B Z signal to the collector output signal, input to the PLC high-speed counter interface.
2. the differential encoder output signal to the collector output signal, input to the PLC high-speed counter interface.
3. for a plurality of servo motor speed synchronization control.

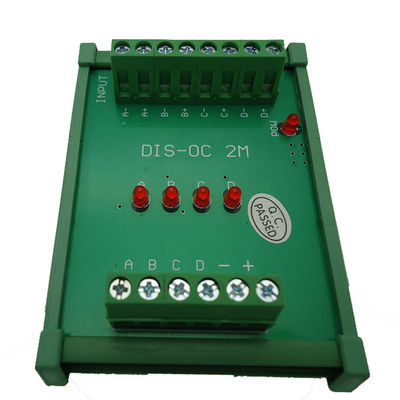

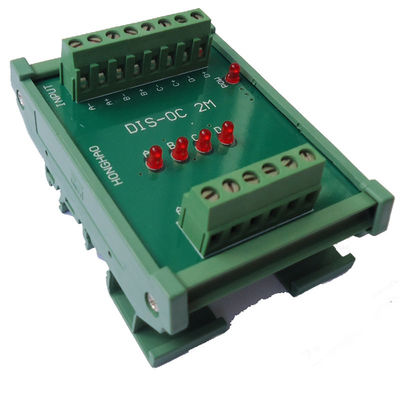

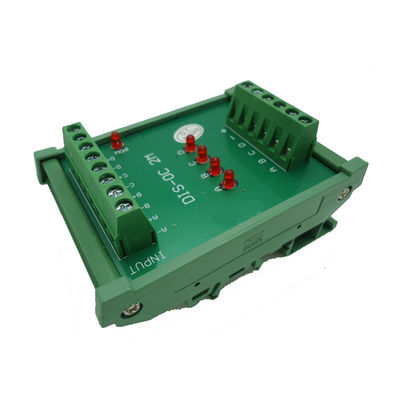

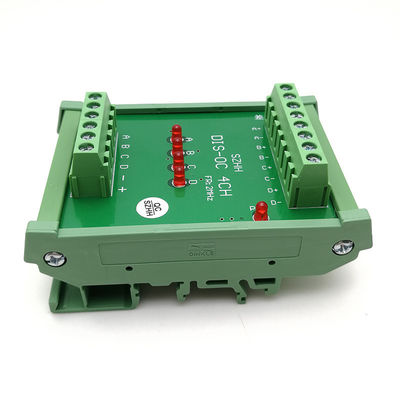

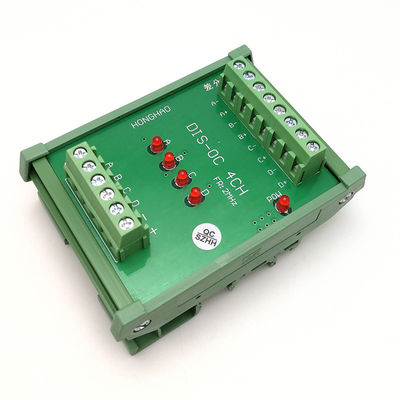

Item Number DIS-OC 4CH TTL to HTL Sigal Converter 4 Channles
Application
PLC high speed counter signal conversion
Servo motor control signal conversion
Rotary encoder control signal conversion
Grating ruler output signal conversion
PLC and microcontroller pulse signal conversion
PLC, servo motor control system anti-jamming
Differential signal converted to other pulse signal
Specification
Signals Channels 4
Power Supply 10V - 26V DC, 24V Typical
PNP PLC Connection Compability Yes
NPN PLC Connection Compability Yes
Optically Isolation Yes
Signals Input A+/A-/B-/B+/C+/C-/D+/D- TTL/RS232 Signal 5V DC
Signals Output A/B/C/D HTL Signal
Frequency Range 0 - 2000000Hz Maximum
Current Comsumption 100 mA Maximum, Each Channel
Input Impedance: Optically isolated, 5.8 kOhms at 24V typical
Isolation Voltage 2500V
Led indicator Red light On
Physical Features
Product Dimension 62mm Width x 87mm Length x 41mm Height
Net Weight 57g
Operation Temperature -25°C to 70°C
Terminal Blocks 5.08mm Pitch, Green, Screw Type
Wire Gauge 26 -16 AWG
Mounting Options DIN Rail 35 or 32
Operation Humidity 98% non-condensing
