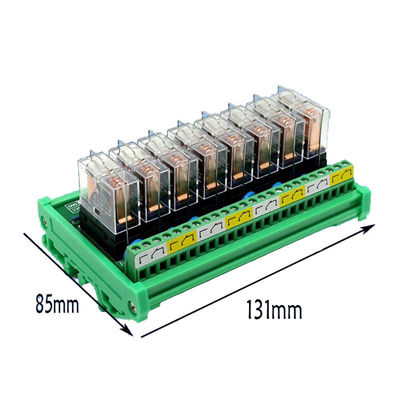

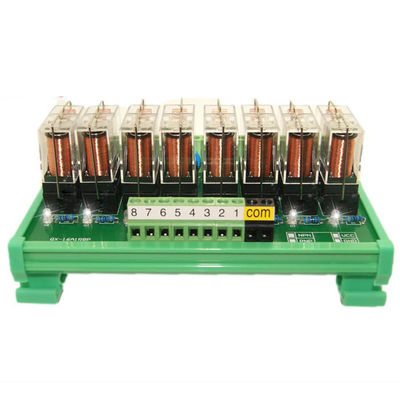

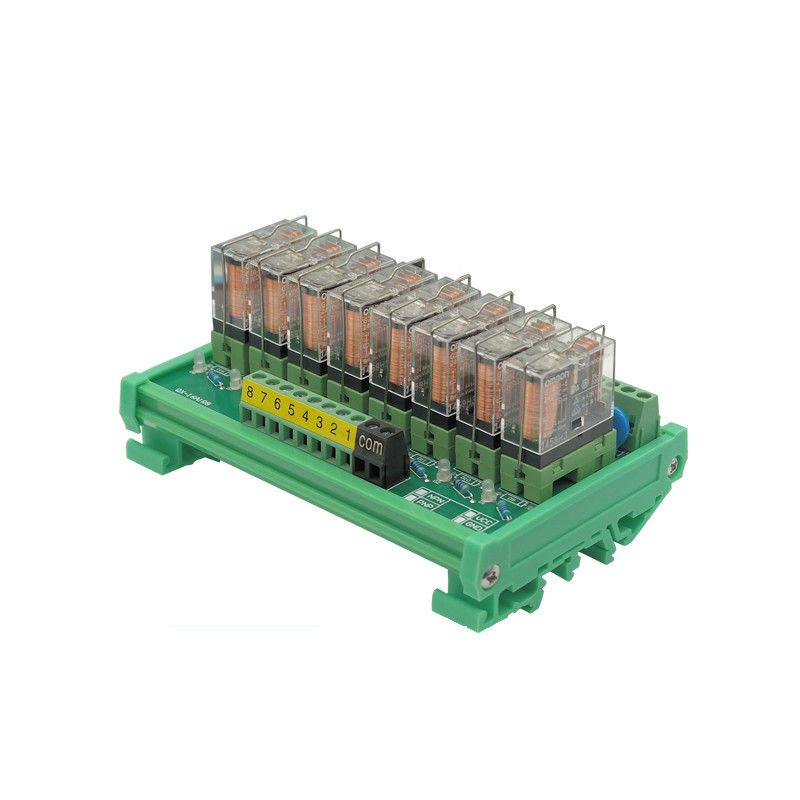

8 Ways Pluggable Relay Module PLC Output Amplifier Board DC 12V 24V

Large Image : 8 Ways Pluggable Relay Module PLC Output Amplifier Board DC 12V 24V

Product Details:

Place of Origin:	Guang Dong
Brand Name:	Jetacon
Certification:	UL, CE
Model Number:	16A1R8-12V or 24V

Payment & Shipping Terms:

Minimum Order Quantity:	2 Pieces
Price:	Get latest price
Packaging Details:	Standard Export Carton
Delivery Time:	7-20 working days
Payment Terms:	T/T, L/C, Paypal, Payoneer
Supply Ability:	1KK poles monthly

Contact Now

Detailed Product Description

Color:	Green	Current:	16A
Voltage Input:	12v Or 24v DC

Description:

- This product isolates or amplify the faint controlling signals(only need several mA current) through photoelectricity, then output large power controlling signal, to drive motor contactor magnetic valve etc.,

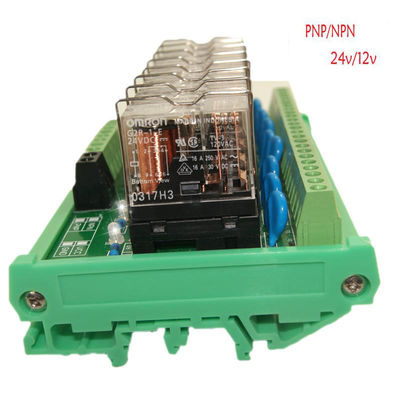

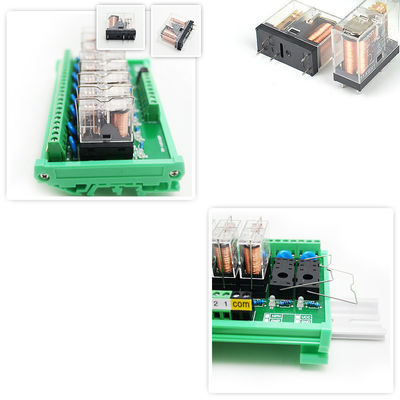

Output type: Pluggable OMRON Relay
I/O points: 8 channels
Input signal : NPN and PNP compatible
Input voltage: DC24V or DC12V ( DC5V, DC12V, AC110V, AC220V can be customized )
Output voltage: AC / DC 0-250V
Output Contacts: 1CO(SPDT) Contact capacity (resistive)
16A 250VAC Operation voltage/Release voltage ≥ 75%Un /≤10%Un
Operation time/Release time ≤15ms/≤8ms
Switching frequency 0.1Hz
Dimensions (WxH): 87×63mm
Mounting: DIN rail 35mm
