4 Channels DC 24V PLC Amplifier Plate Board PNP Input NPN Output Opto-isolated Design

Certification
China Shenzhen Jetacon Technology Ltd certification
China Shenzhen Jetacon Technology Ltd certification
I'm Online Chat Now

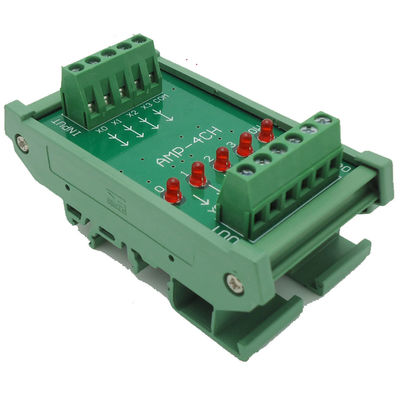

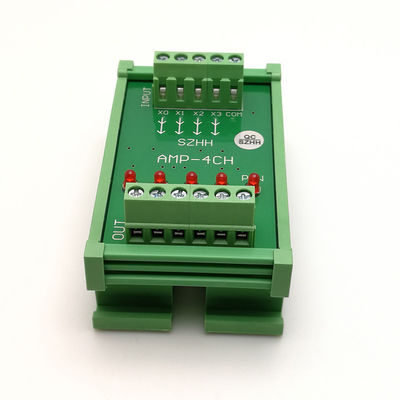

4 Channels DC 24V PLC Amplifier Plate Board PNP Input NPN Output Opto-isolated Design

4 Channels DC 24V PLC Amplifier Plate Board PNP Input NPN Output Opto-isolated Design
4 Channels DC 24V PLC Amplifier Plate Board PNP Input NPN Output Opto-isolated Design 4 Channels DC 24V PLC Amplifier Plate Board PNP Input NPN Output Opto-isolated Design 4 Channels DC 24V PLC Amplifier Plate Board PNP Input NPN Output Opto-isolated Design 4 Channels DC 24V PLC Amplifier Plate Board PNP Input NPN Output Opto-isolated Design 4 Channels DC 24V PLC Amplifier Plate Board PNP Input NPN Output Opto-isolated Design

Large Image :  4 Channels DC 24V PLC Amplifier Plate Board PNP Input NPN Output Opto-isolated Design

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: AMP-4CH-24V

Payment & Shipping Terms:

Minimum Order Quantity: 5 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description

Product P/N: AMP-4CH-24V

Amplifying board suitable for installation in the PLC and single-chip microcomputer control board controller of the digital output terminal.

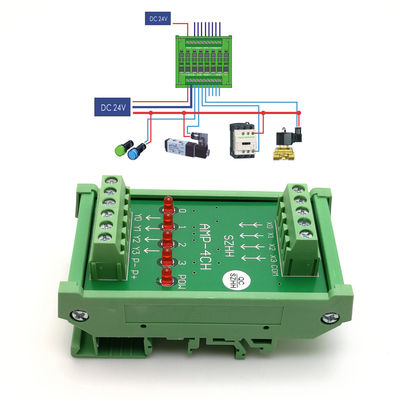

Amplifying the output voltage and current, for large load power equipment and protective effect of PLC contact, such as plastic machinery, hydraulic machinery, mechanical foam, woodworking machine machinery, ceramics machinery equipment.

--

Parameters:
- Transistor amplifier Design
- It is suitable for most of Branded PLC
- Every channel rated current: 2A (continuous time) / 8A (instant current), unlimited using times
- Voltage range(loaded power): DC 24V Power Supply

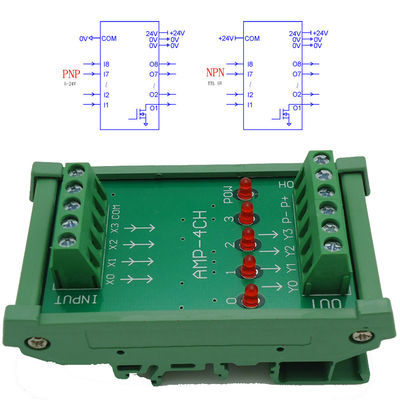

- Input form: link to PNP PLC ( for example, Mitsubishi FX3U is NPN output, Simens S7-200 is PNP output)
- Output form:NPN, low level voltage output
- Switch frequency≤1000HZ
- Breakover resistance<0.025Ω

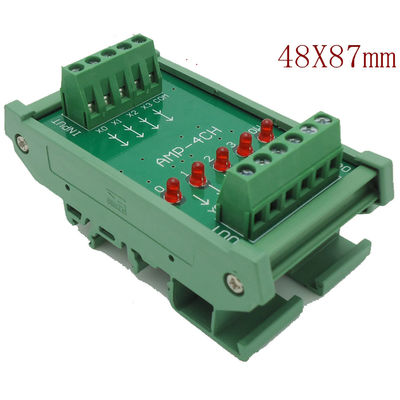

- Dimension: 48mm widith *87mm Length *44mm Height (with standard Din Rail Holder)
- working temperature: -10~70'C; Storage temperature: -20~100'C.

Note: The product with DC 5V supply is also available, please contact us.
