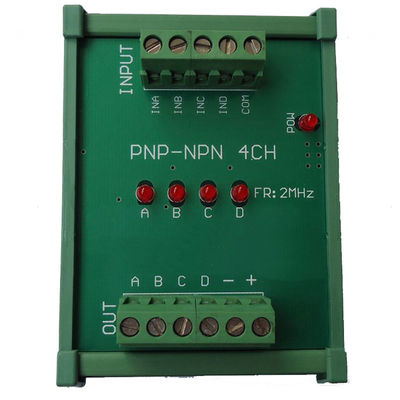

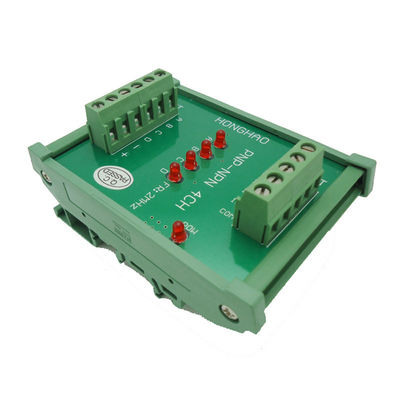

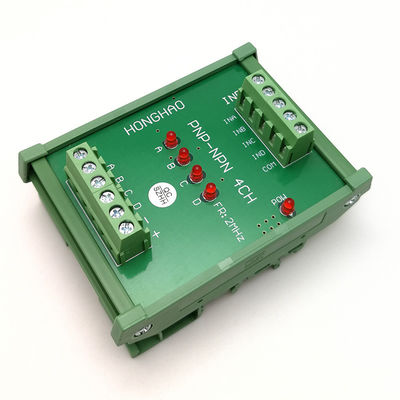

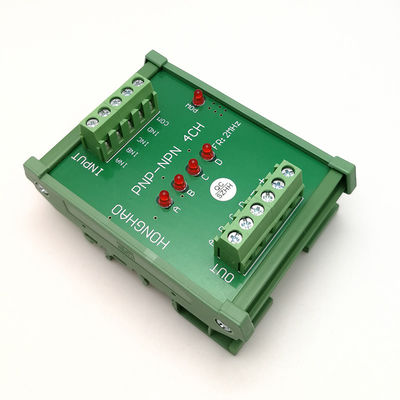

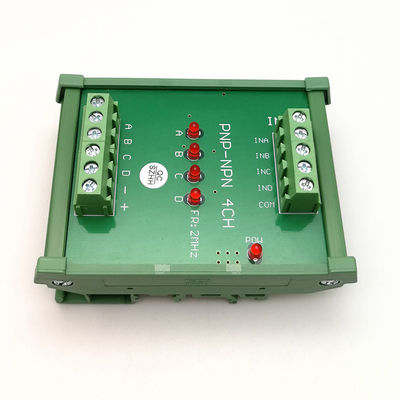

Logic Level Polarity Converter PNP to NPN Signal 4 Ways for Simens PLC Series

PNP ===> NPN signal converters, Optical Coupler Isolation.
Singal Source Input: PNP type
Singal Output: NPN singal

(Simens S7-200 is PNP output )

Supply Voltage : 24V DC ( Note: It is not 5V DC)
Output Voltage : 24V DC
Standard DIN rail mounting ( 35 mm)
Temperature range 10 °C to 55 °C
Trsnsimission Frequency: 2MHz (Maximum), High Speed
LED indicator for output ON

Product size : 85mm L x 62mm W x 41mm H around

Application Reference Example: Use Simens PLC to drive the servo



Note: some times the item is from customized products, the actual product will have some minor difference from
the photo, thanks.
