Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals

Certification
China Shenzhen Jetacon Technology Ltd certification
China Shenzhen Jetacon Technology Ltd certification
I'm Online Chat Now

Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals

Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals
Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals

Large Image :  Converter DC24V 4 Ways Servo Encoder Differential 5V TTL to Collector 24V HTL Signals

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: EC201-02-3.81

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description
Power Supply: DC24V ( 9-30V) Singal Input: 5V -24V TTL
Singal Ouput: 24 HTL

Introduction:

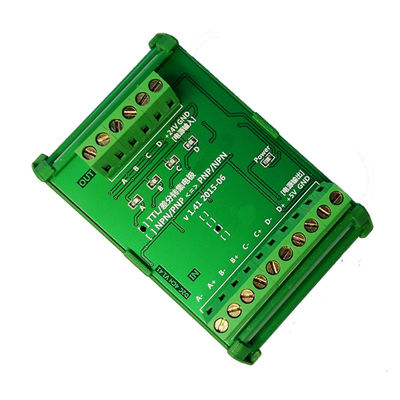

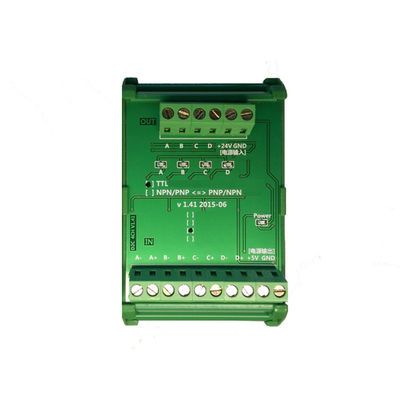

1. Make Encoder differential signal (TTL EIA422 / 423, 5V -24V) to the open collector 24V HTL signal output, 4 Channels, electrical isolation between input and output.
2. Working frequency: 2000000Hz
3. The signal output mode: push-pull output

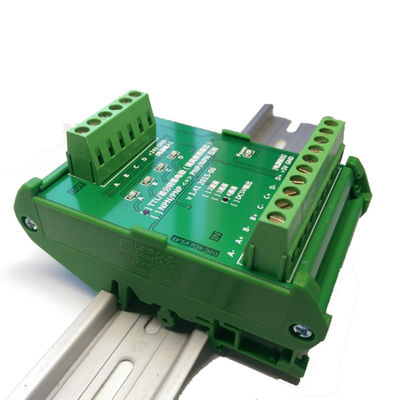

4. Installation: DIN35mm rail mounting,convenient and quick
5. Product Size: 105mm x 87mm x 35mm around
6. Rated Working Power Supply Input Voltage: DC24V ( 9 -30V )


Applications:

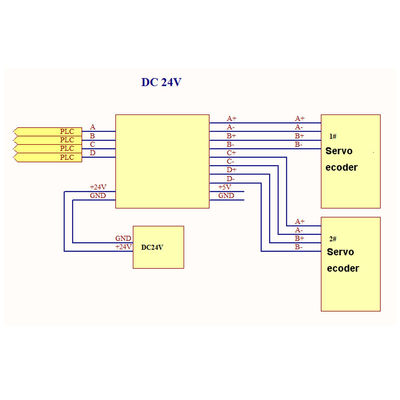

1. servo driver A B Z signal output to the collector , input to the PLC high-speed counter interface.
2. the differential encoder output signal to the collector output signal, input to the PLC high-speed counter interface.



Package Included:
1 * 4-Way Differential to collector
Note: If, Verison1.0 is not produced , we will send the upaded version.
Some times the item is from customized products, the actual product will have some minor difference from the photo, thanks.
