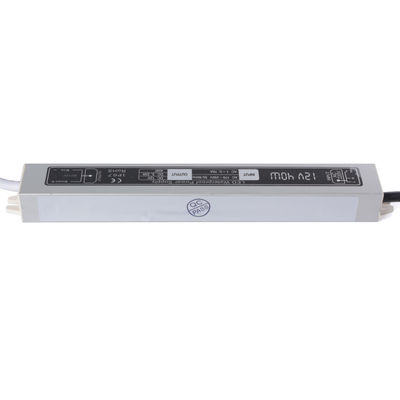

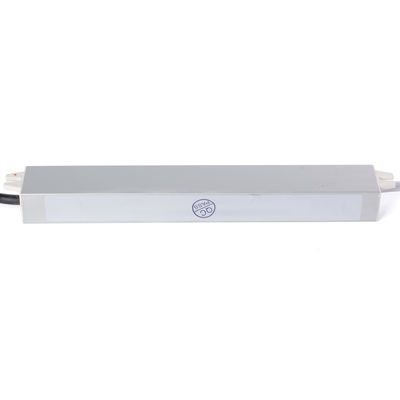

DC 12V 40W Lighting Transformer Waterproof LED Driver Power Supply IP67 Input AC170-250V Adapter for LED Strip

Certification
China Shenzhen Jetacon Technology Ltd certification
China Shenzhen Jetacon Technology Ltd certification
I'm Online Chat Now

DC 12V 40W Lighting Transformer Waterproof LED Driver Power Supply IP67 Input AC170-250V Adapter for LED Strip

DC 12V 40W Lighting Transformer Waterproof LED Driver Power Supply IP67 Input AC170-250V Adapter for LED Strip
DC 12V 40W Lighting Transformer Waterproof LED Driver Power Supply IP67 Input AC170-250V Adapter for LED Strip DC 12V 40W Lighting Transformer Waterproof LED Driver Power Supply IP67 Input AC170-250V Adapter for LED Strip DC 12V 40W Lighting Transformer Waterproof LED Driver Power Supply IP67 Input AC170-250V Adapter for LED Strip

Large Image :  DC 12V 40W Lighting Transformer Waterproof LED Driver Power Supply IP67 Input AC170-250V Adapter for LED Strip

Product Details:

Place of Origin: China Mainland
Brand Name: Jetacon
Certification: CE
Model Number: FS-1240W

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pieces
Price: US $10.99
Packaging Details: Standard Export Carton
Delivery Time: 3-5 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1000 /Pieces per Day
Detailed Product Description
Material: Aluminum Case Voltage Output: 12V±0.5V
Power Supply: AC 170 ~ 250V AC Frequency: 47~60Hz

Specifications:

. Input Voltage: AC170-250V 50/60HZ
. Output Voltage: DC 12V
. Shell Material: Aluminum Alloys
. Working Temperature: -48-85 degree centigrade
. Efficiency: >= 80%
. Waterproof: IP67 Can be used in shallow water



12V 1.66A 20W = L*W*H(168 x 30 x 20mm)
24V 0.83A 20W = L*W*H(168 x 30 x 20mm)
12V 2.50A 30W = L*W*H(200 x 30 x 20mm)
24V 1.25A 30W = L*W*H(200 x 30 x 20mm)
12V 3.33A 40W = L*W*H(200 x 30 x 20mm)
24V 1.66A 40W = L*W*H(200 x 30 x 20mm)
12V 4.16A 50W = L*W*H(182 x 35 x 25mm)
24V 2.08A 50W = L*W*H(182 x 35 x 25mm)
12V 5.00A 60W = L*W*H(152 x 52 x 35mm)
24V 2.50A 60W = L*W*H(152 x 52 x 35mm)
12V 6.66A 80W = L*W*H(152 x 70 x 42mm)
24V 3.33A 80W = L*W*H(152 x 70 x 42mm)

-

Features:

. Low cost, high reliance
. Built-in EMI filter
. Low output ripple and noise
. Protection function: over load protection/over current protection/short-circuit protection
. Input inrush: Cold-start, 40A/230V AC
. Output voltage range: 12V-10% to 12V+10%
. Voltage regulation(full): <=0.5%
. Output over load protection: 110%-150%intermittent mode,auto-recovery
. Raise time, keep time: 50mS,20mS Full load (typical)
. Dielectric intensity: I/P-O/P,I/P-FG: 1.5KVAC,O/P-FG:0.5KVAC,1 min
. Working temperature: -40-85 degree centigrade 100%, -40% 85%, 50 degree centigrade 60%
. Storage environment : -40 to +85 degree centigrade, 20%~95%RH(nodew)
. Safety standard: conform toGB4943, CE-LVD,ROHS
. EMC standard: conform to GB9254, EN55022 class A
. Cooling method: natural convection air-cooling

-



Application:





Adaptor designed specifically for our LED Lamp or strip light.
Its high quality and new power supply for 3825 5050 5630 3014 2835 7020 led strip Light,Wireless Router, ADSL Cats, HUB, Switches, Security Cameras. Audio/Video Power Supply etc,it is easy connection and simplicity to use.
