MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator

MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator
MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator

Large Image :  MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator

Product Details:

Place of Origin: China Mainland
Brand Name: ODM
Certification: CE
Model Number: RBL-10A 20A 30A

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pieces
Price: US $8.99
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 100 /Pieces per Day
Detailed Product Description
Voltage Output: 12V 24V Current Output: 10A 20A 30A

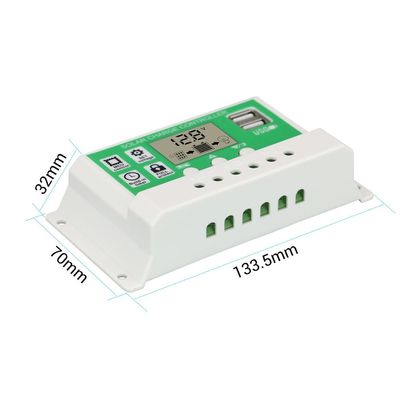

Weight: 160g

NEW ARRIVAL model, can auto recongize 12V and 24V Lithium-ion battery,
Lead-acid battery, Gel battery,Sealed battery, Flooded battery, AGM battery

10A:
if your battery is 12V ,the max solar panel input is 25V 120W
if your battery is 24V ,the max solar panel input is 50V 240W
20A:
If your battery is 12V, the max solar panel input is 25V 240W
if your battery is 24V, the max solar panel input is 50V 480W
30A
if your battery is 12V ,the max solar panel input is 25V 360W
if your battery is 24V ,the max solar panel input is 50V 720W


Specification:

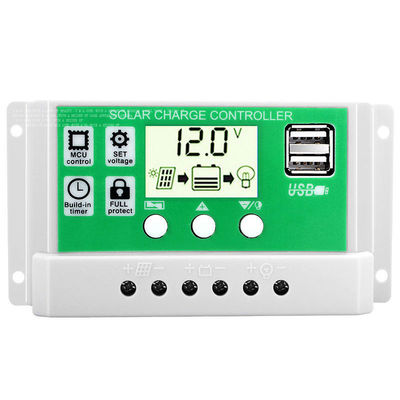

Name: LCD screen solar controller
Voltage: DC 12V / 24V
Display: LCD screen
Self-consumption: <10MA
Overcharge protection: 14.4V / 28.8V
Overcharge Float charge: 13.7V / 27.4V
Charge recovery voltage: 12.6V / 25.2V
Over discharge protection: 10.7V / 21.4V
Over discharge recovery: 12.6V / 25.2V
Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)
Working temperature: -35 ℃ -60 ℃
12V fits 18V solar panel, 24V fits 36V solar panel

12.0 volt lead acid battery corresponding
The float voltage is set to: 13.6
The recovery discharge voltage is set to: 12.6
The discharge cut-off voltage is set to: 10.7

12.8 volt lithium iron phosphate battery corresponding
The float voltage is set to: 14.6
The recovery discharge voltage is set to: 13.6
The discharge cut-off voltage is set to: 11.0

11.1 volt lithium battery corresponding
The float voltage is set to: 12.6
The recovery discharge voltage is set to: 11.6
The discharge cut-off voltage is set to: 9.6
Function:
1. Always keep the battery on fill voltage condition.
2. Prevent the battery from over-charging.
3. Prevent the battery from over-discharging.
4. Prevent the battery from reverse charging to solar panels during nights.
5. Reverse Polarity Protection for Battery
6. Reverse Polarity Protection for Solar Panels
7. When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of battery is back to normal and the load will restart working.
8. According to the battery voltage grade, the controller can automatically set charge-off voltage, the load-off voltage, the load- restore voltage. (The parameter is default under 25℃
condition, locked by the CPU procedure, cannot adjust.)
9. The controller will automatically compensate the temperature of the charging voltage according to the changes of ambient temperature.
10. Thunder protection
Packing List:
1 x Solar Panels Battery Charge Controller
1 x User Manual
