DR-75-24 75W 24V 3.2A DC Output Din Rail Switching Mode Power Supply

Certification
China Shenzhen Jetacon Technology Ltd certification
China Shenzhen Jetacon Technology Ltd certification
I'm Online Chat Now

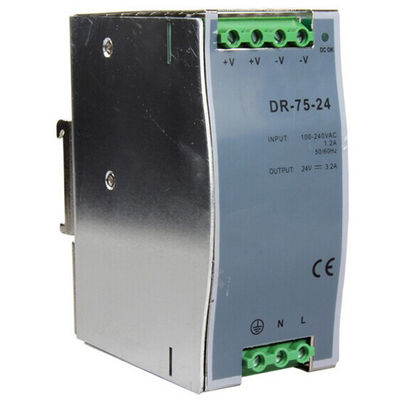

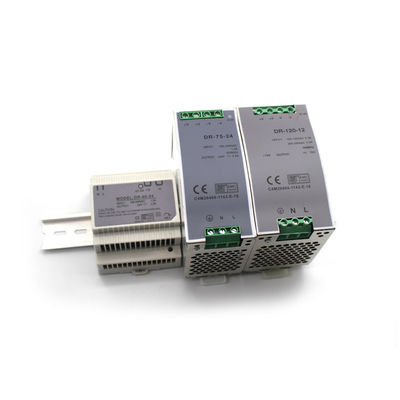

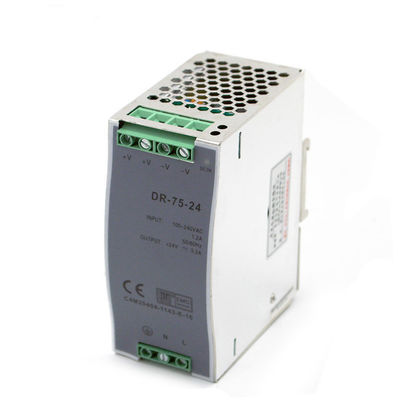

DR-75-24 75W 24V 3.2A DC Output Din Rail Switching Mode Power Supply

DR-75-24 75W 24V 3.2A DC Output Din Rail Switching Mode Power Supply
DR-75-24 75W 24V 3.2A DC Output Din Rail Switching Mode Power Supply DR-75-24 75W 24V 3.2A DC Output Din Rail Switching Mode Power Supply DR-75-24 75W 24V 3.2A DC Output Din Rail Switching Mode Power Supply DR-75-24 75W 24V 3.2A DC Output Din Rail Switching Mode Power Supply

Large Image :  DR-75-24 75W 24V 3.2A DC Output Din Rail Switching Mode Power Supply

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: DR-75-24

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-15 days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description
Output Voltage: 24V Output Frequency: 50HZ
Output Current: 3.2A Output Power: 51 - 100W
Output Type: Single Input Voltage: 220V
Weight: 0.6kg

Low price and high reliability

105℃ Output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effecticly
With short-circuit and overload protection
100% full-load burn-in test
Installed with EMI filter, minimum wave

Model DR-75-12 DR-75-24 DR-75-48
DC output voltage 12V 24V 48V
Output voltage range(Note:2) ±2% ±1% ±1%
Rated output current 6.3A 3.2A 1.6A
Output current range 0-6.3A 0-3.2A 0-1.6A
Wave and noise(Note:3) 100mVp-p 150mVp-p 240mVp-p
Inlet stability(Note:4) ±0.5% ±0.5% ±0.5%
Load stability(Note:5) ±1% ±1% ±1%
Efficiency 76% 80% 81%
Adjustable range for DC voltage 10.8~13.2V 21.6~26.4V% 43.2~52.8V%
AC input voltage range 85~264VAC 47~63Hz;120~370VDC
Input current 1.8A/115V 0.9A/230V
AC inrush current Cold-start current 30A/115V 60A/230V
Leakage current <3.5mA/240VAC
Overload protection 105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery
Over-voltage protection 13.8~16.2V 27.6~26.4V 43.2~52.8V
Temperature coefficient ±0.03%/°c(0~50°c)
Setup, rise , hold up time 1000ms, 60ms, 50ms/230V
Vibration 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity -10°c~+60°c(Refer to output derating curve), 20%~90%RH

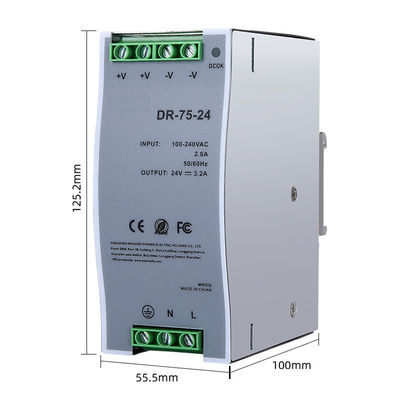

Overall dimension 55.5×125.2×100mm
Weight 0.551Kgs 20PCS/14Kg/1.1CUFT
Safety standards Meet UL 1012 requiement (Not apply for the mark)
EMC standards Meet FCC PART 15 J Conduction class B
