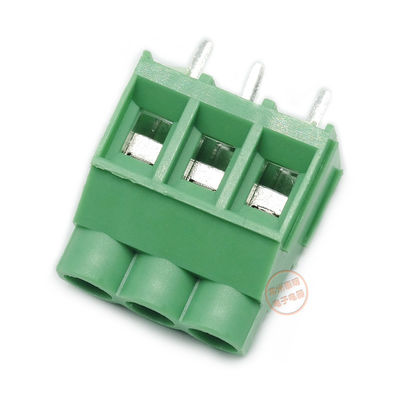

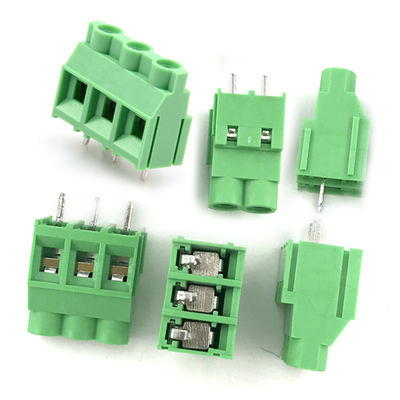

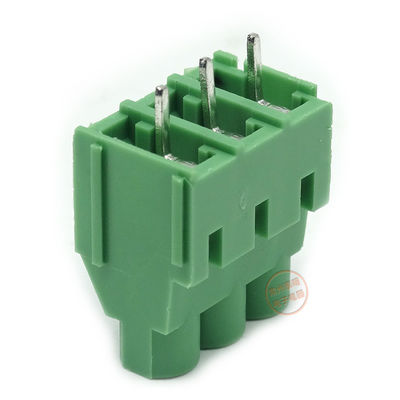

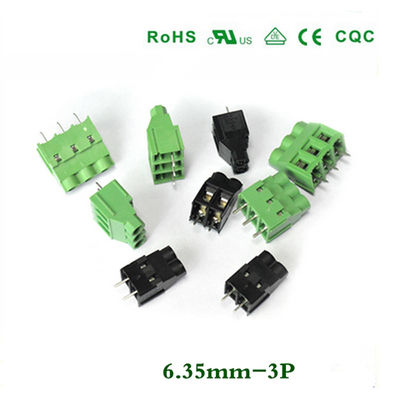

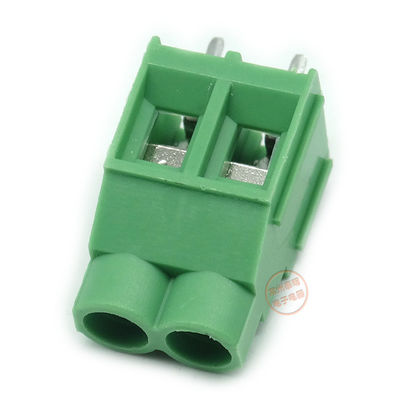

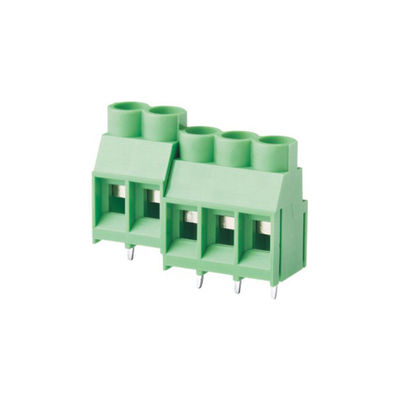

6.35mm / 0.25" PCB Screw Terminal Blocks Connector 2-pin 3-pin Jointable

Certification
China Shenzhen Jetacon Technology Ltd certification
China Shenzhen Jetacon Technology Ltd certification
I'm Online Chat Now

6.35mm / 0.25" PCB Screw Terminal Blocks Connector 2-pin 3-pin Jointable

6.35mm / 0.25" PCB Screw Terminal Blocks Connector 2-pin 3-pin Jointable
6.35mm / 0.25" PCB Screw Terminal Blocks Connector 2-pin 3-pin Jointable 6.35mm / 0.25" PCB Screw Terminal Blocks Connector 2-pin 3-pin Jointable 6.35mm / 0.25" PCB Screw Terminal Blocks Connector 2-pin 3-pin Jointable 6.35mm / 0.25" PCB Screw Terminal Blocks Connector 2-pin 3-pin Jointable 6.35mm / 0.25" PCB Screw Terminal Blocks Connector 2-pin 3-pin Jointable 6.35mm / 0.25" PCB Screw Terminal Blocks Connector 2-pin 3-pin Jointable 6.35mm / 0.25" PCB Screw Terminal Blocks Connector 2-pin 3-pin Jointable

Large Image :  6.35mm / 0.25" PCB Screw Terminal Blocks Connector 2-pin 3-pin Jointable

Product Details:

Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: EG635-6.35

Payment & Shipping Terms:

Minimum Order Quantity: 500 pieces
Price: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Detailed Product Description
Material: PA66 Color: Green

Specifications:

Condition: Brand New
Certification: CE, Rohs
Pitch: 6.35mm
Poles: 3 Pins or 2 Pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current: 50A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~12AWG



Note:

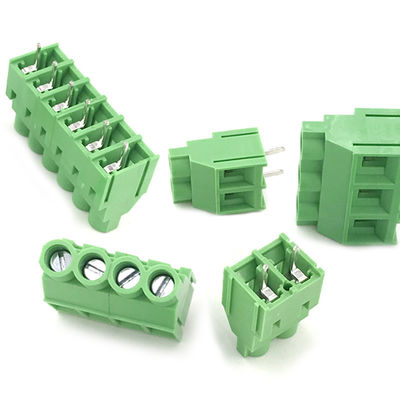

The terminal blocks are in stock  from 2 poles to 20 poles
6.35mm / 0.25" PCB Screw Terminal Blocks Connector 2-pin 3-pin Jointable 0
6.35mm / 0.25" PCB Screw Terminal Blocks Connector 2-pin 3-pin Jointable 1
